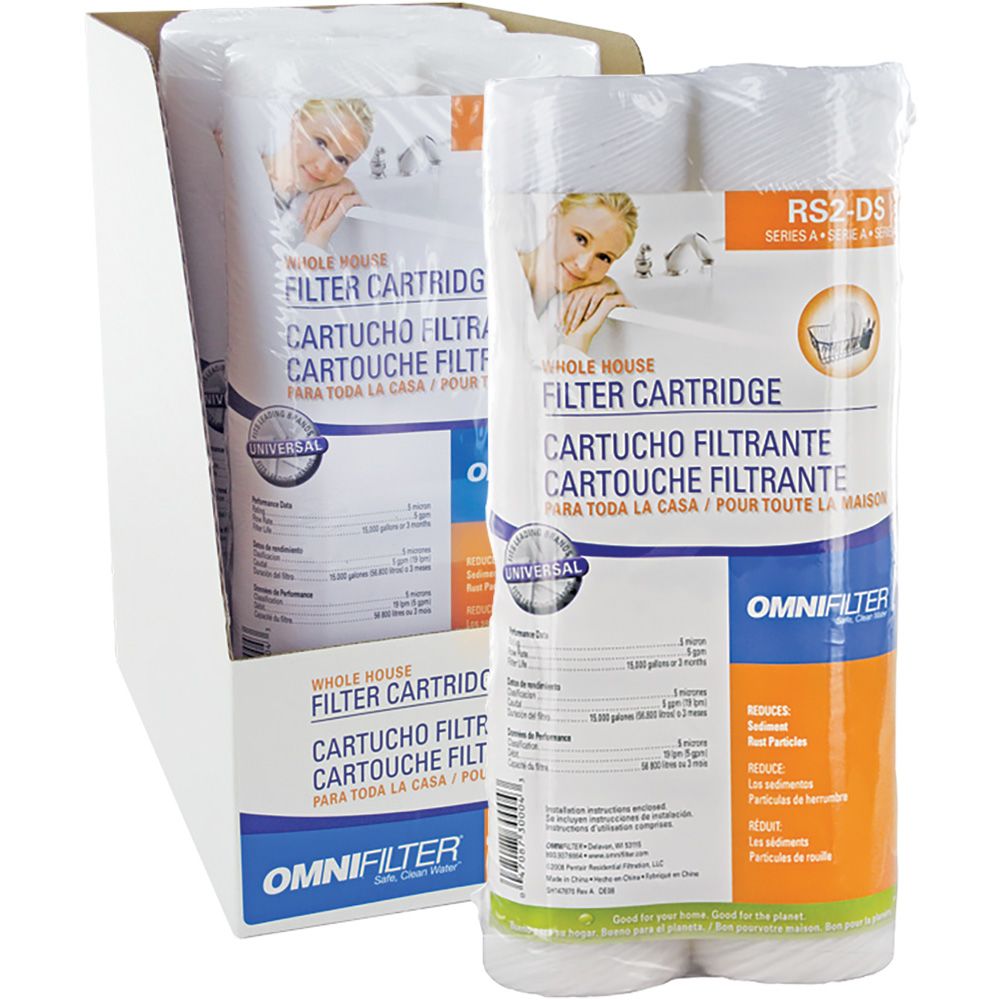

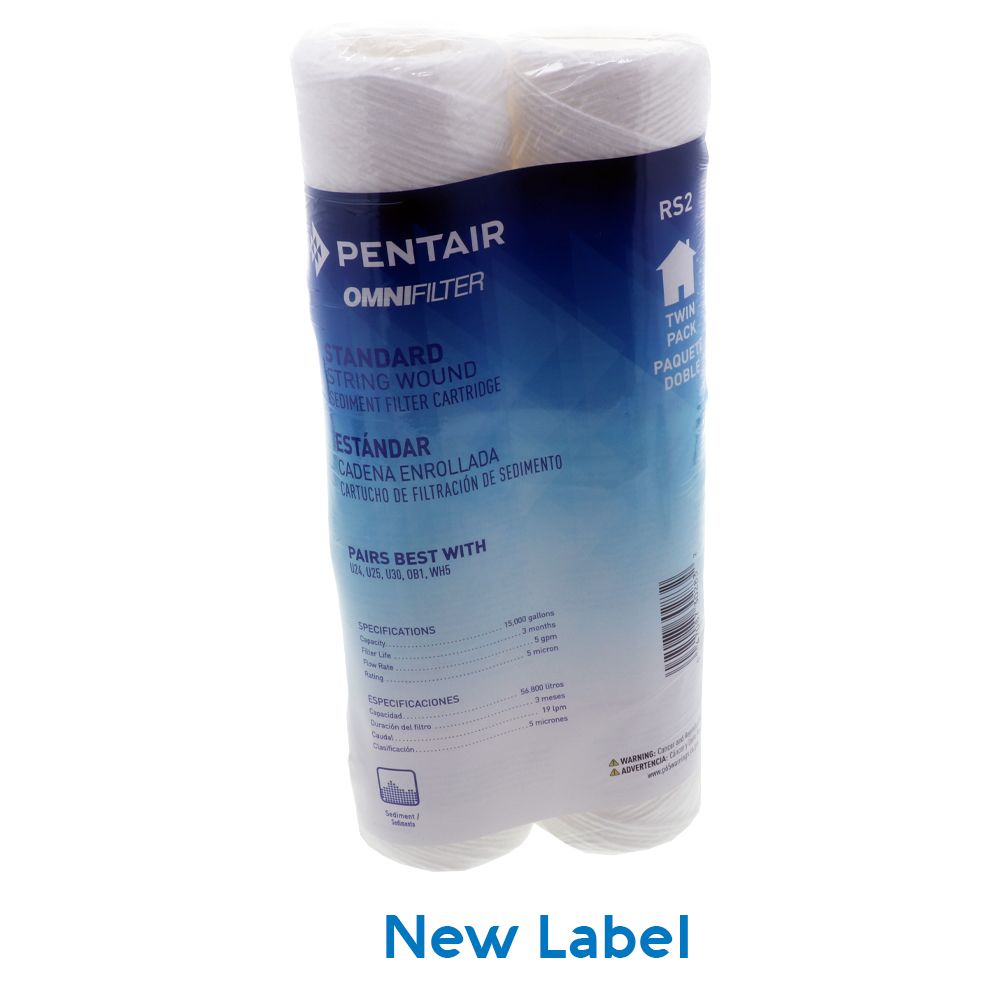

Omnifilter RS2-DS String Wound Polypropylene 5 Micron Filter

The Omnifilter RS2-DS String Wound cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids. The cartridges are wound in a precise pattern around the core providing greater surface area. The result is higher dirt-loading capacity and greater efficiency than standard wound cartridges.

Features:

Durable string wound construction
General purpose filter for whole house applications
Sediment reduction including sand, silt, scale particles, and rust particles
Ideal for well water applications
Fits the Omnifilter filter housings OB1, U25, and OB5.

NOTE: These filters are sold in sets of two. The 2-pack includes one set of two, and the 6-pack includes three sets of two.

Alternate Model and Part Numbers: Pentek WP-5, Ametek WP-5, Culligan WP-5, Kleen Plus WP-5, Keystone W5, Plymouth WP-5, Pentair WP-5, Bruner WP-5, US Filter WP-5, Whirlpool WH, Parker XTL10T10A

Compatible with:

American Plumber	155186-52, W5W
Ametek	WP-5
Bruner	WP-5
Culligan Water Filters	WP-5
Hydronix	SWC-25-1005
Keystone	W5
Liquatec	SWF-25-1005
Neo-Pure	WPP-25098-05
Pentek	WP-5, 155071-43
Purwater	SW05-S
US Filter	WP-5
Whirlpool	WHCF-WHSW, WHKF-WHSW

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	15,000 Gallons
Core Material	Polypropylene
Max Temp (°F)	145
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40
Recommended Flow Rate	5 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/4"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	String Wound
Filter Type	Sediment Depth
Flow Rate	5 GPM
Media Type	Polypropylene Fiber Cord
Micron Rating	5 µm
Origin	China
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4.5 in.
Shipping Height	2.25 in.
Product Weight & Dimensions
Approx Depth	2.3"
Product Height	2.25 in.
Product Length	10 in.
Product Width	4.5 in.
Product Weight (lbs)	0.714

Product Details
Capacity	15,000 Gallons
Core Material	Polypropylene
Max Temp (°F)	145
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40
Recommended Flow Rate	5 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/4"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	String Wound
Filter Type	Sediment Depth
Flow Rate	5 GPM
Media Type	Polypropylene Fiber Cord
Micron Rating	5 µm
Origin	China
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	13 in.
Shipping Height	13 in.
Product Weight & Dimensions
Approx Depth	2.3"
Product Length	9-3/4"
Product Weight (lbs)	2.85
