Half cartridges are an easy and cost-effective way of incorporating a push-fit connection into a wide range of OEM equipment.
Features:
- Cartridges are available in acetal and brass
- Compatible with plastic or copper OD sized tubing
- Cost effective vs. fittings
- Assembly is quick resulting in cost and time savings

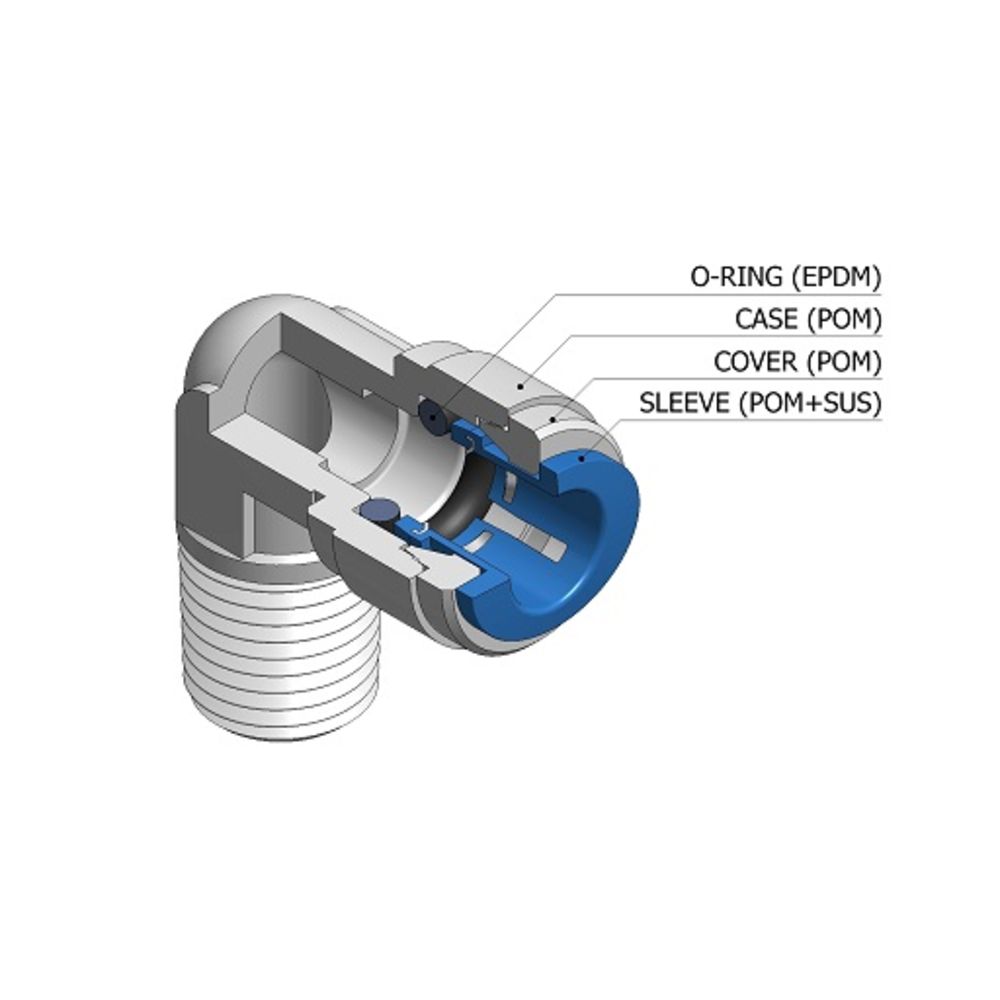

- EPDM O-Ring with acetal collet (Sleeve) for improved seal
Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
Fittings Comparison: Acetal Gray
|
Size |
NEO: Working PSI @ Temp |
JG: Working PSI @ Temp |
|---|---|---|
|
1/4" |
290psi @ 68F/ 232psi @ 150F |
230psi @ 68F/ 150 psi at 150F |
|
3/8" |
232psi @ 68F/ 203psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
|
1/2" |
203psi @ 68F/ 116psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
|
Certifications |
NEO: NSF 51 & 61 Certified |
JG: NSF 51 & 61 Certified |
|
Size |
NEO: Max Torque |
JG: Max Torque |
|---|---|---|
|
1/4" |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
|
3/8" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
|
1/2" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
