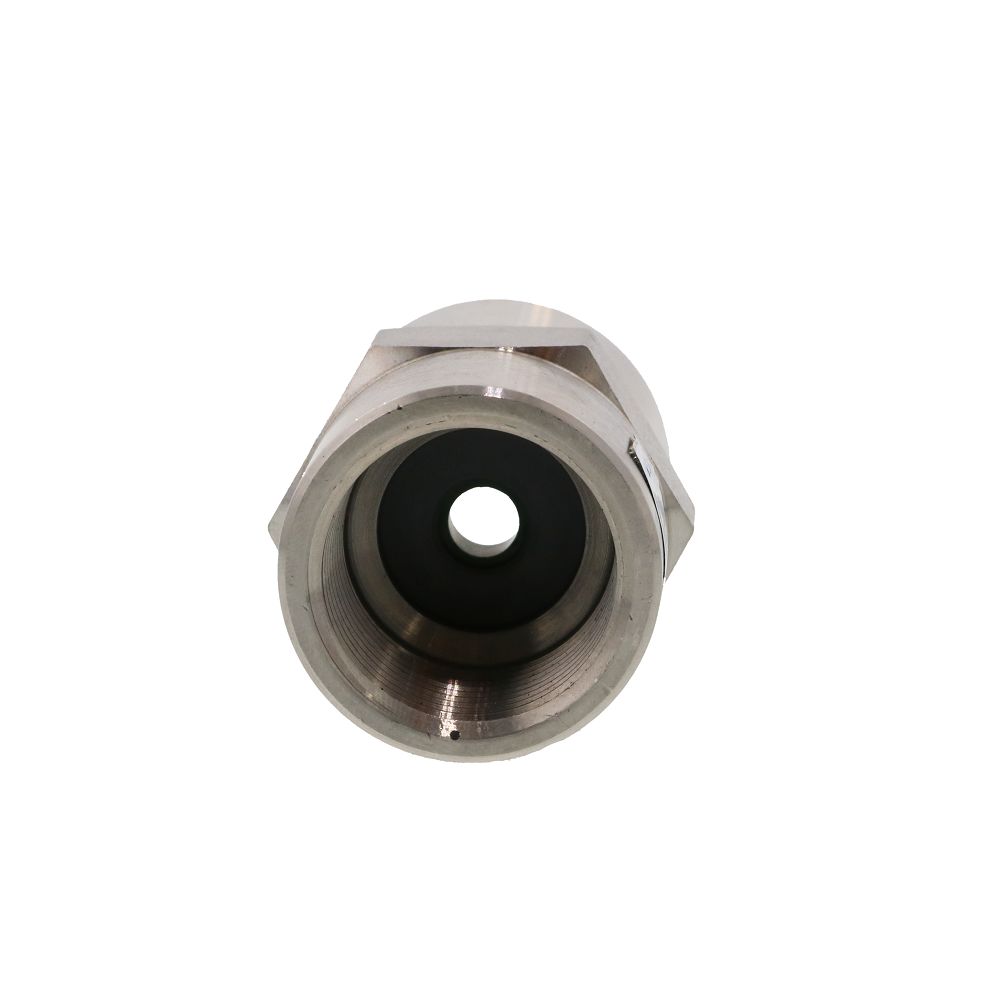

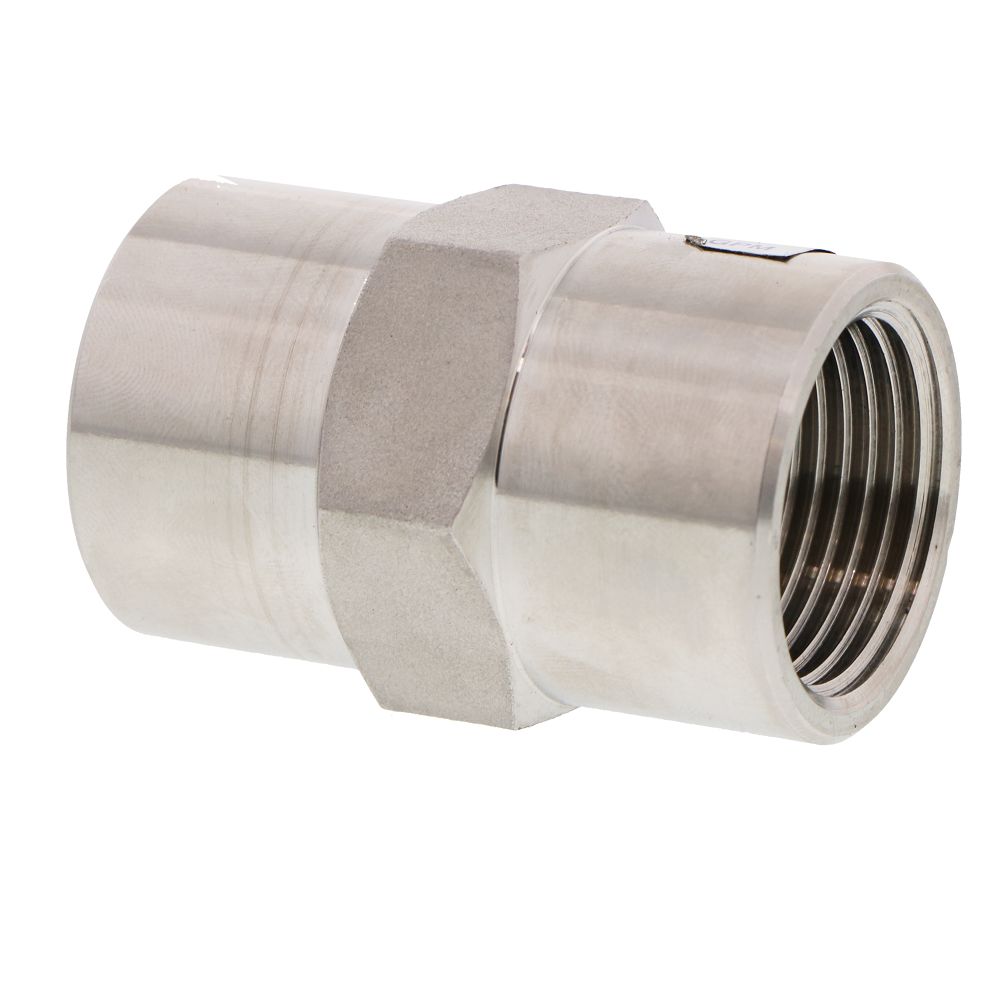

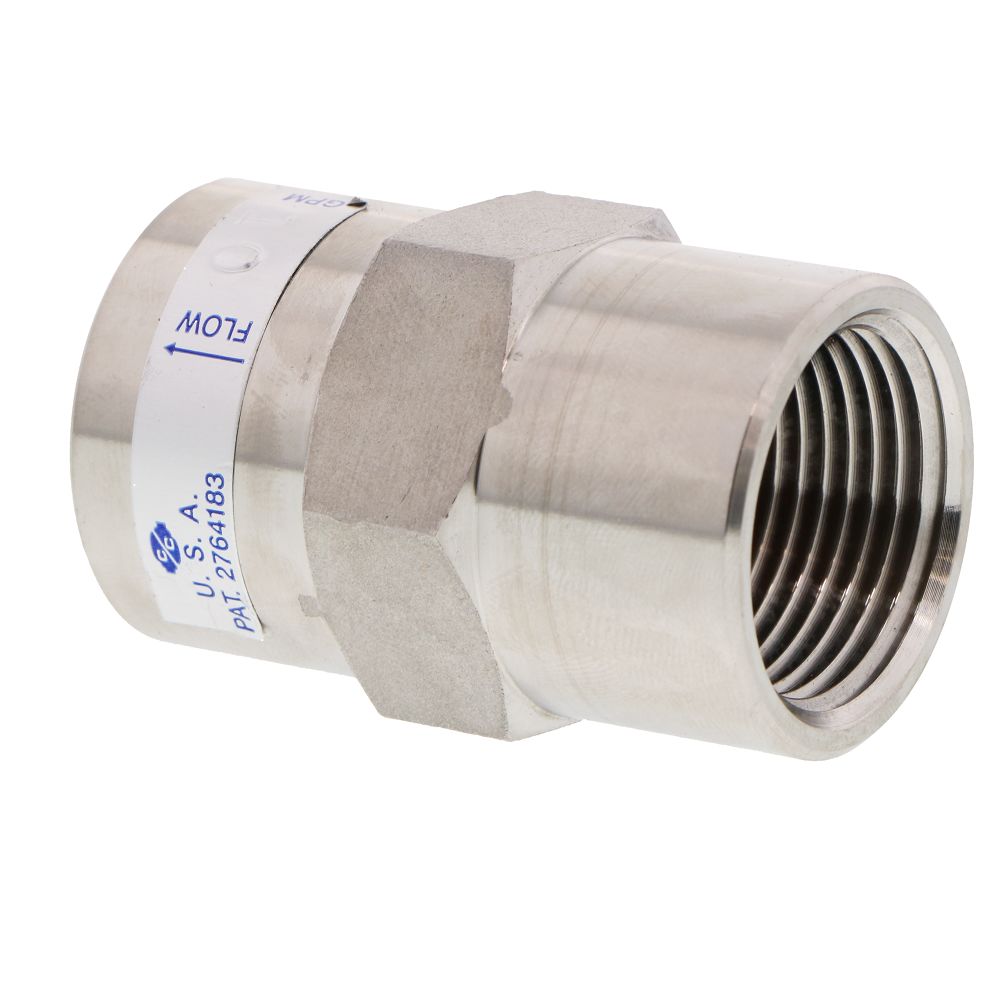

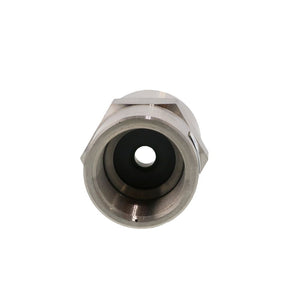

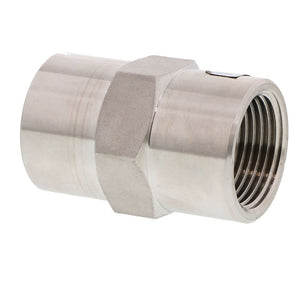

Neo-Pure Stainless Steel Flow Restrictors can help you save water, energy and money by keeping a constant water flow rate. A flow restrictor helps your system maintain the flow rate your system was designed for, to give you the best performance.

Specifications:

• Made in the USA
• 316 stainless steel construction
• O-ring: EPDM
• Orifice: acetal (celcon)
• 3/4" FPT ports
• Max Pressure: 150 psi
• Flow Rates: 9 gpm

Why is a Flow Restrictor Important?

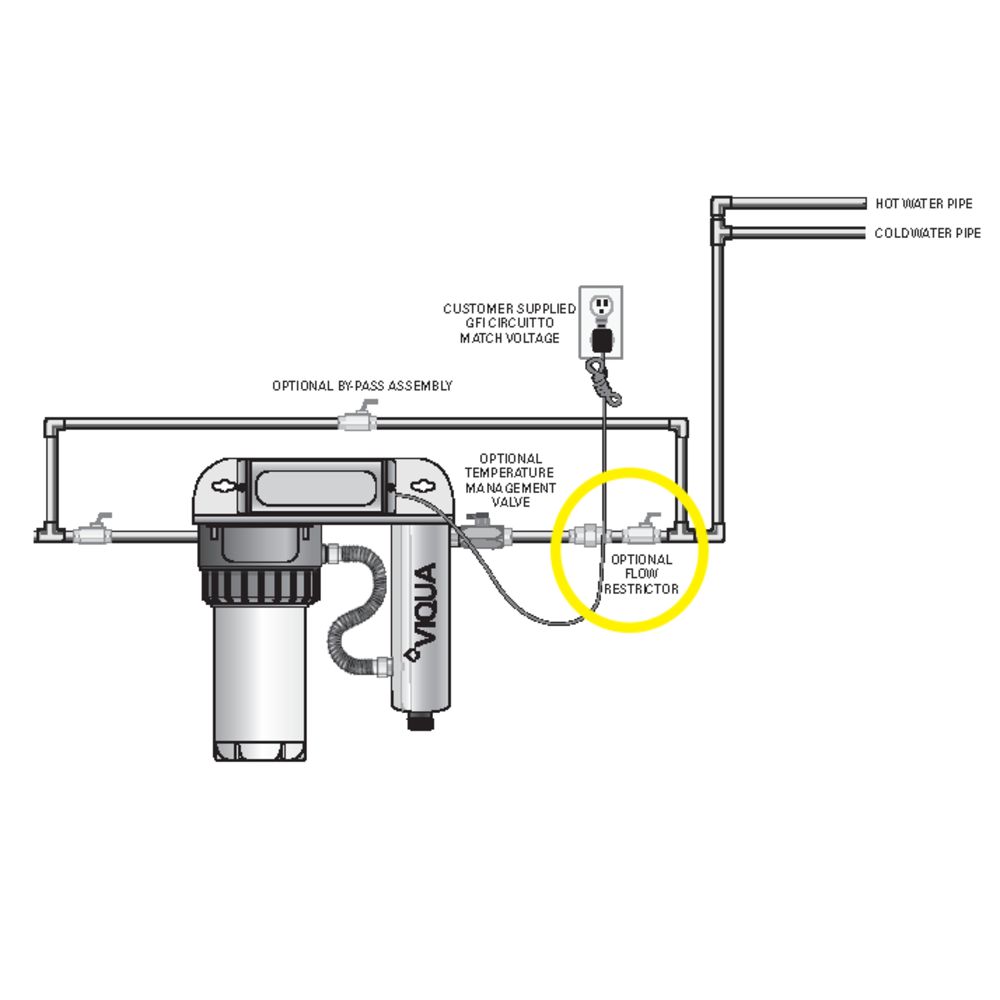

Each water system is rated for a certain flow rate whether it is carbon filter, a UV disinfection system, or a water softener. In order for each of these system to remove the contaminants from your water, it will need sufficient contact time with the media for this chemical reaction to occur. More Info

How Does the NeoPure Flow Restrictor Work?
Flow regulators are used to maintain a defined flow rate regardless of pressure variations of the supply line. Precise flow control improves system performance and in the case of plumbing systems, it provides comfort of use at low pressure as well as water and energy saving at high pressure.
When there is no flow or pressure, the o-ring is relaxed. When there is normal pressure, the o-ring subjected to the line pressure is compressed into the seating area. As the pressure decreases, the o-ring relaxes. The Neo-Pure Flow Restrictor allows for a constant flow over a wide range of pressure variations.

Applications:

• Water filtration systems
• Ultraviolet disinfection systems
• Water softeners
• Tankless water heaters
• Geothermal equipment
• Distributing machines
• Electronic faucets
• Irrigation systems

Please refer to our catalog or the table below for different flow rate & port size options:

Flow Rate	Port Size	Part Number
1 GPM	3/8" FPT	FRSS-1-006FF
1.5 GPM	1/2" FPT	FRSS-1.5-008FF
1.5 GPM	3/8" FPT	FRSS-1.5-006FF
2 GPM	3/8" FPT	FRSS-2-006FF
2 GPM	1/2" FPT	FRSS-2-008FF
2.5 GPM	1/2 " FPT	FRSS-2.5-008FF
2.5 GPM	3/8" FPT	FRSS-2.5-006FF
3 GPM	3/4" MNPT	FRSS-3-012MM
3 GPM	3/8" FPT	FRSS-3-006FF
3 GPM	1/2" FPT	FRSS-3-008FF
3.5 GPM	1/2" FNPT	FRSS-3.5-008FF
4 GPM	1/2" FPT	FRSS-4-008FF
4 GPM	3/8" FPT	FRSS-4-006FF
4 GPM	3/4" FPT	FRSS-4-012FF
4.5 GPM	1/2" FPT	FRSS-4.5-008FF
5 GPM	1/2" FPT	FRSS-5-008FF
6 GPM	1" FPT	FRSS-6-100FF
6 GPM	1/2" FPT	FRSS-6-008FF
6 GPM	3/4" MNPT	FRSS-6-012MM
6 GPM	3/4" FPT	FRSS-6-012FF
7 GPM	1/2" FPT	FRSS-7-008FF
8 GPM	1" FPT	FRSS-8-100FF
8 GPM	3/4" FPT	FRSS-8-012FF
9 GPM	3/4" FPT	FRSS-9-012FF
9 GPM	1" FPT	FRSS-9-100FF
10 GPM	1" FPT	FRSS-10-100FF
10 GPM	3/4" FPT	FRSS-10-012FF
12 GPM	1" FPT	FRSS-12-100FF
12 GPM	1" MNPT	FRSS-12-100MM
13 GPM	1" FPT	FRSS-13-100FF
15 GPM	1" FPT	FRSS-15-100FF
15 GPM	1-1/2" FPT	FRSS-15-108FF
18 GPM	1-1/2" FPT	FRSS-18-108FF
18 GPM	1" FPT	FRSS-18-100FF
20 GPM	1" FPT	FRSS-20-100FF
20 GPM	1-1/2" FPT	FRSS-20-108FF
24 GPM	1-1/2" FPT	FRSS-24-108FF
26 GPM	1-1/2" FPT	FRSS-26-108FF
30 GPM	1-1/2" FPT	FRSS-30-108FF
