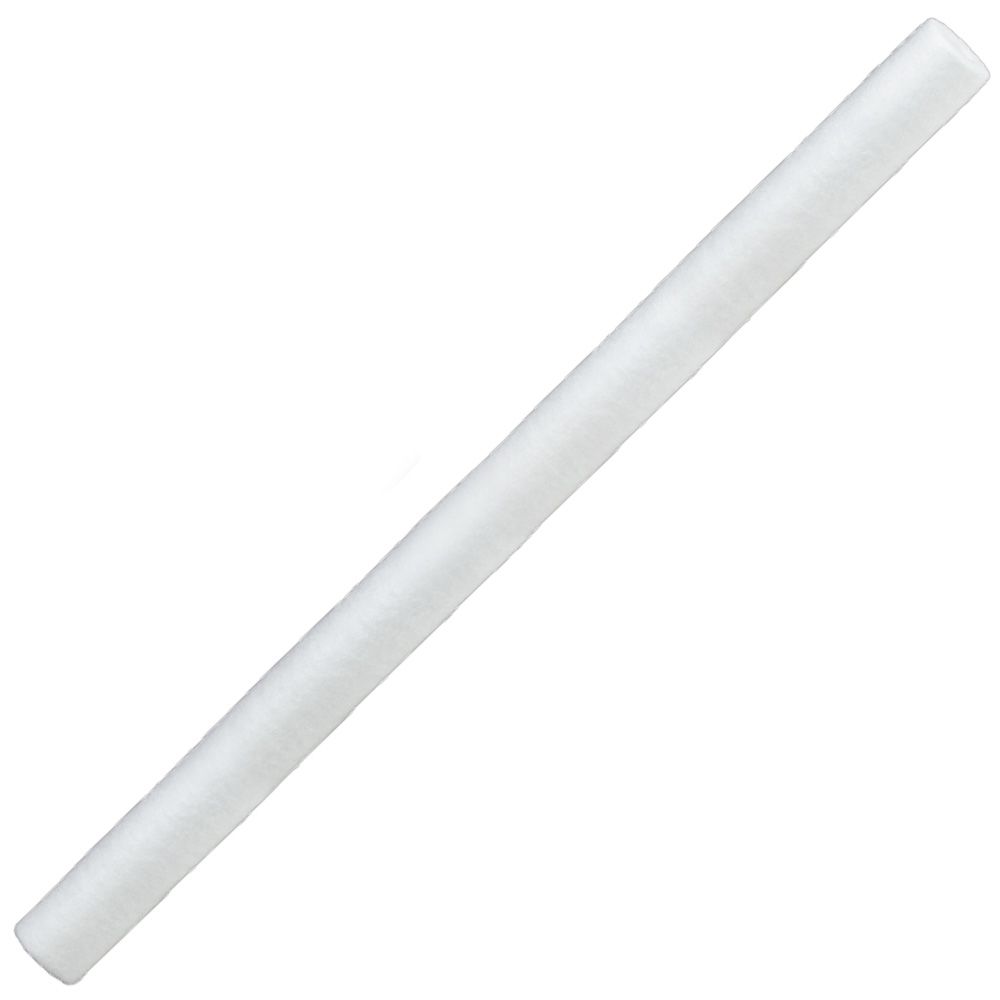

Neo-Pure HMB-25400-03 40" High Efficiency Meltblown Filter 3 micron

Neo-Pure HMB-25400-03 40" Meltblown 3 mic. 100% polypropylene filters offer economical and efficient filtration for commercial and industrial liquid applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. These cartridges are manufactured with high efficiency polypropylene ensuring reduction of sediment, dirt, and rust particles. Neo-Pure HMB-25400-03 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Specifications:

High dirt holding capacity
Double open-ended for quick change-out
Reduces sediment, dirt, and rust particles
Filter Media: 100% polypropylene
High efficiency operating at 90% efficiency

Applications:

Chemicals
Food and Beverage
Microelectronics
Photo Solutions
Bottled Water
Plating Processes
Reverse Osmosis Prefiltration
Water and Wastewater

Compatible with:

GE Water	1194074, 94074, GX03-40
Graver Technologies	STA3-40NN

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Efficiency	0.9
Initial Pressure Drop	<1 psi typical PSI Differential
Max Temp (°F)	175
Micron Rating (Nominal)	3 µm
Psid@Flow Rate	< 1 psi typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Media Type	Polypropylene
Micron Rating	3 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Product Weight & Dimensions
Product Length	40"
Product Weight (lbs)	2.25
