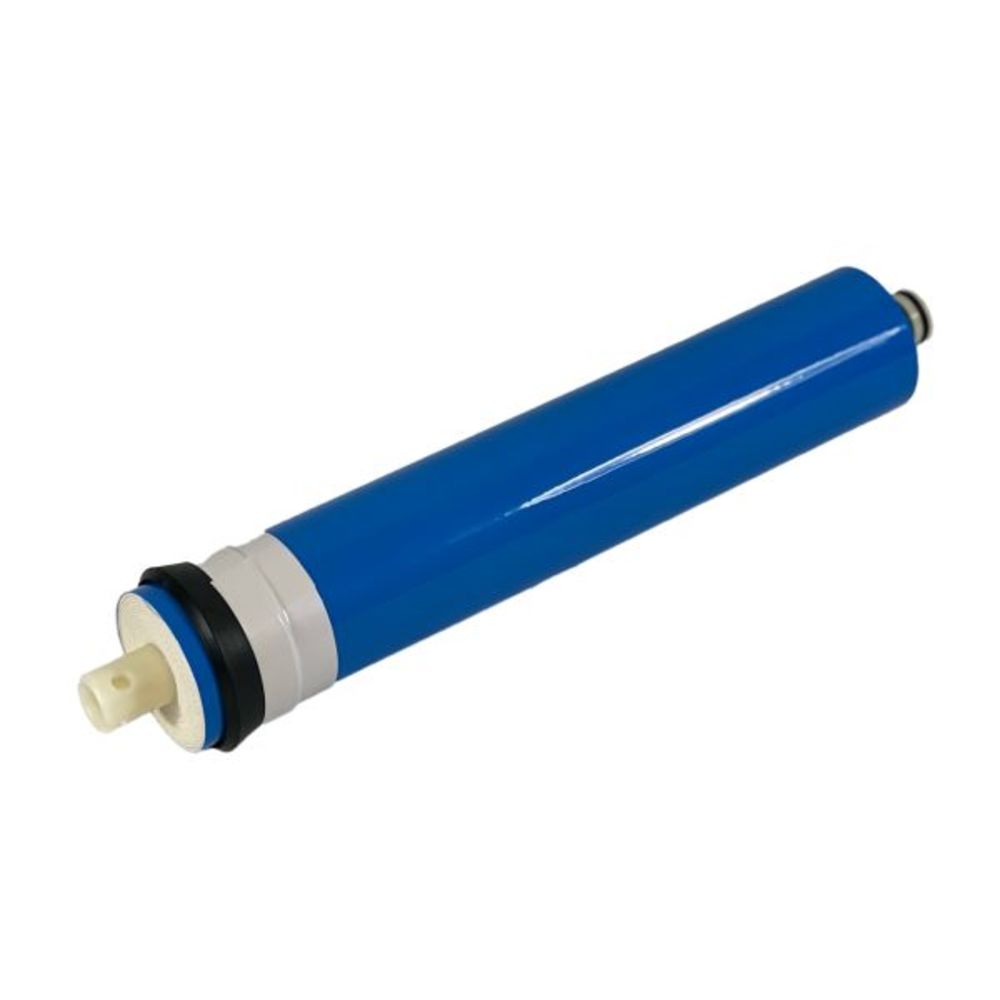

Neo-Pure 25 GPD Filmtech Membrane

The Neo-Pure 25 GPD Filmtech Membrane (compatible with AXEON Residential Polyamide Thin Film Composite Membrane) offers high performance and reliability and consistent quality. Residential membranes operate as low as 50 psi and can yield up to 20% more safe, healthy drinking water than other membranes that operate at 65 psi.
Features:

25 Gallons Per Day
Operates as low as 50 psi
TFC (Thin Film Composite) Membrane is for use with non-chlorinated water
Individually tested and sanitized

Ceritfied by NSF International against NSF/ANSI Standard 58 for material requirements

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	50 (3.44) PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Flow Rate	2 gpm (7.6 lpm)
Max Pressure (Psi)	150 PSI
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	25 (3.94) GPD
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.091875

Neo-Pure 25 GPD Filmtech Membrane Manual
