Home / Filter Housings & Components / Membrane Housings / Membrane Housing 1/8 FPT Cap & 1/4 QC Ports
Payne

Membrane Housing 1/8 FPT Cap & 1/4 QC Ports

Part Number: PPV-111QC
out of stock
This item is discontinued. We recommend the Membrane Housing with 1/4 Push-In Fittings, NO Check as a substitute.
Your price:
$14.26

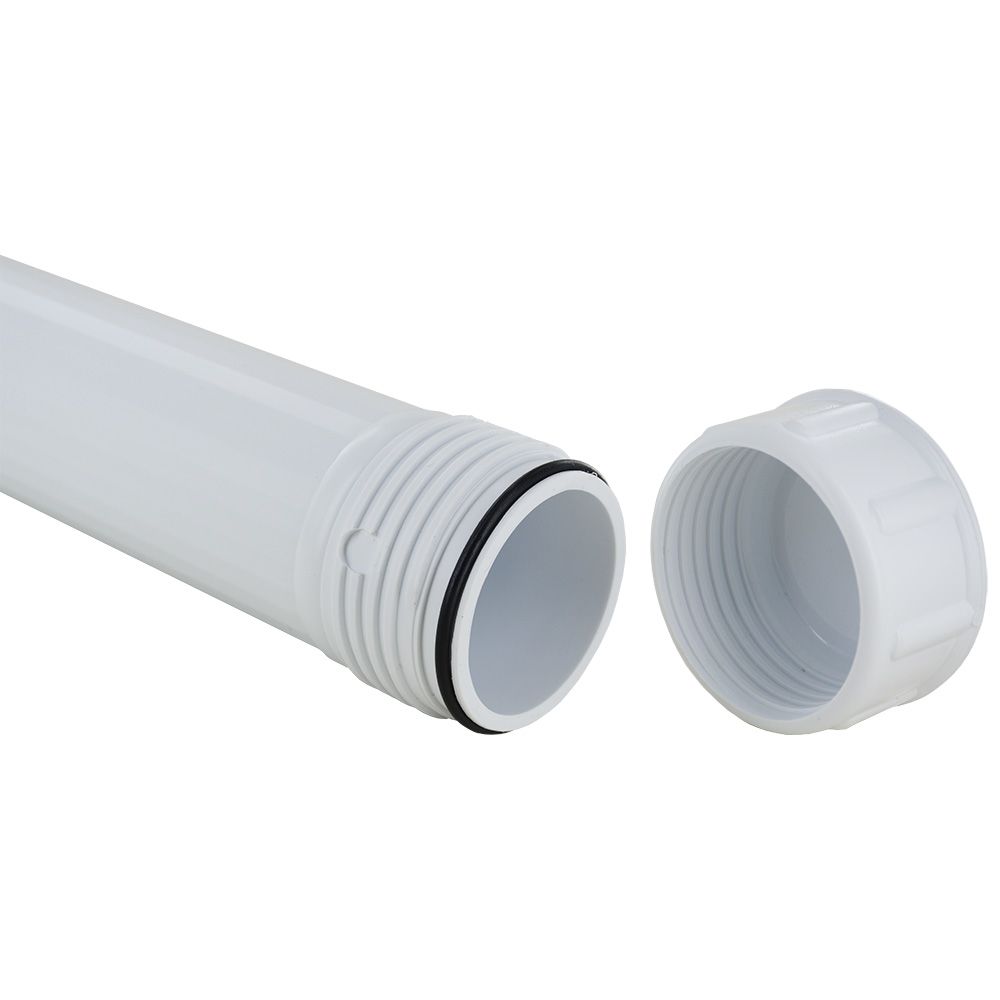

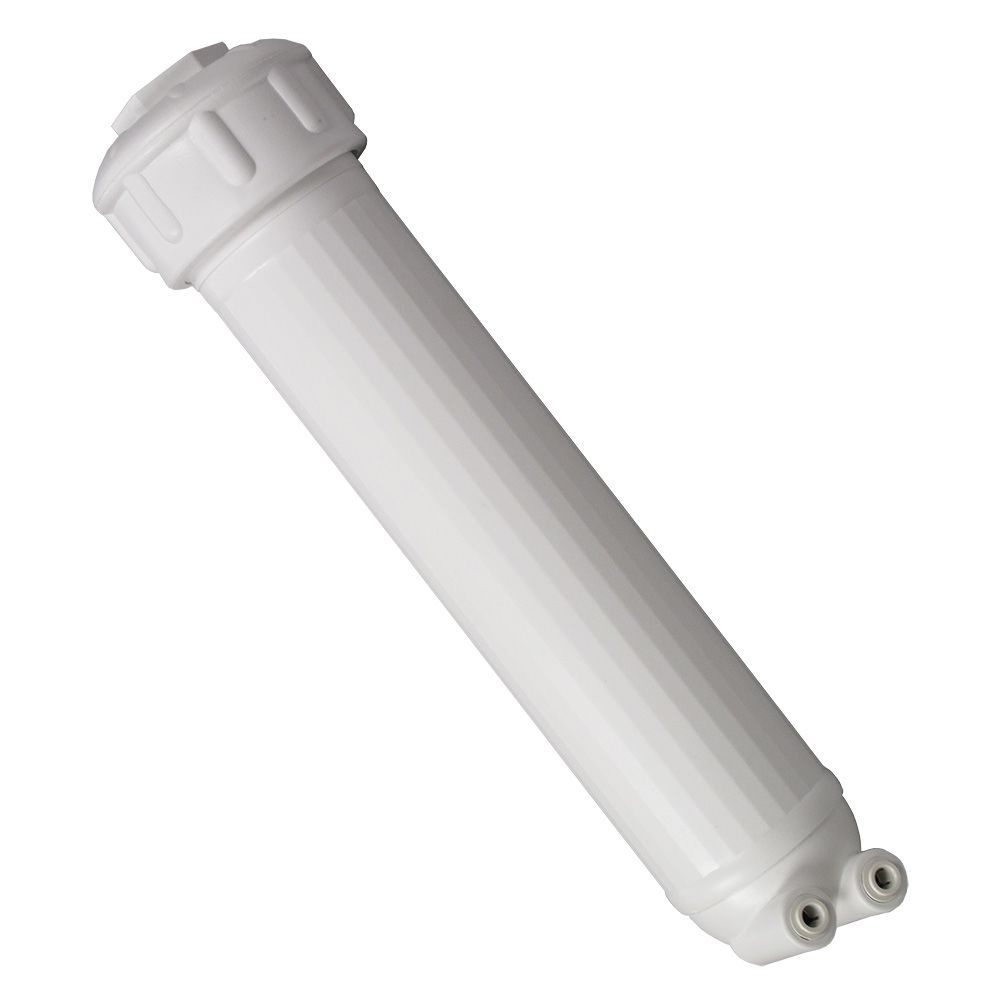

The PPV-111QC Reverse Osmosis Membrane Housing accepts all 12" standard size membranes and is manufactured using the highest quality FDA grade polypropylene. The RO Membrane Housing feed port is a straight 1/8" female FPT inlet. The Drain and Product (permeate) ports are equipped with (2) 90° outlets with built-in 1/4" quick connect fittings, eliminating the need for additional elbows.

Specifications:
  • FDA Approved Materials. The PPV-111QC Reverse Osmosis Membrane Housing is made of FDA grade polypropylene.

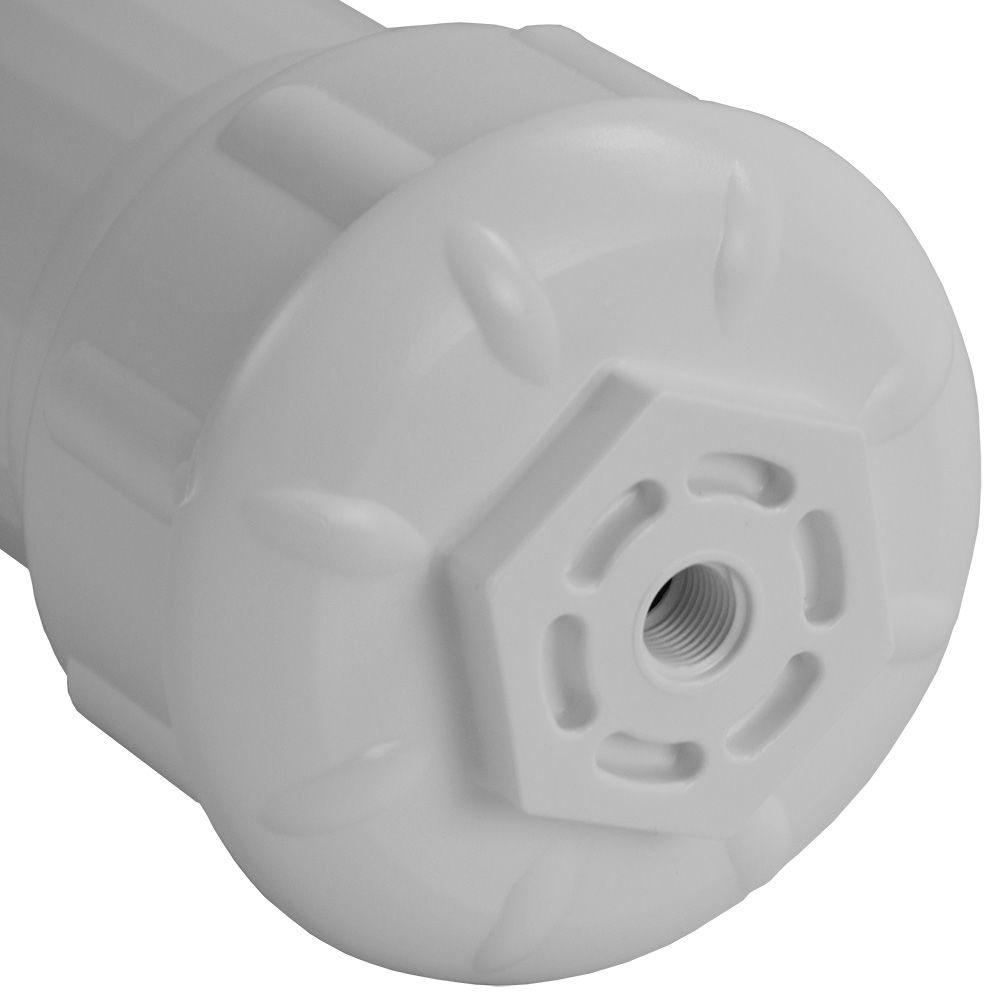

  • Male Connector Required. The PPV-111QC Reverse Osmosis Membrane Housing features a feed inlet of 1/8" FPT and requires a male connector PP480821W 1/4 x 1/8 FPT fitting.

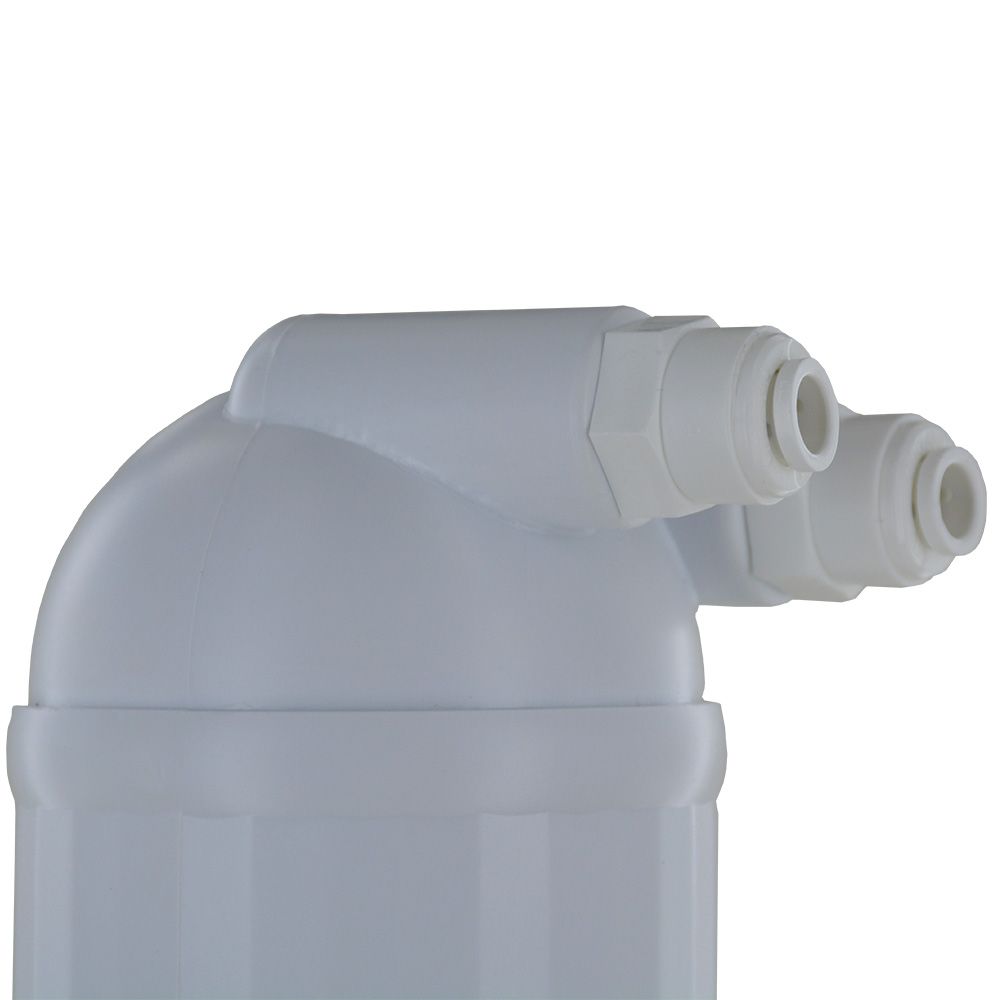

  • Quick Connects. The PPV-111QC Reverse Osmosis Membrane Housing uses 1/4" QC fittings for the Brine out (side) and Permeate out (center) ports.
Note: Be sure to select a flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.

Compatible with:
MarloEH-2500KW
