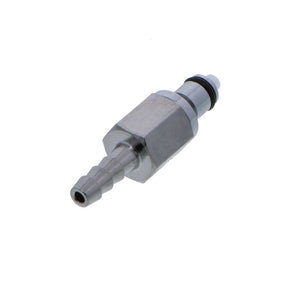

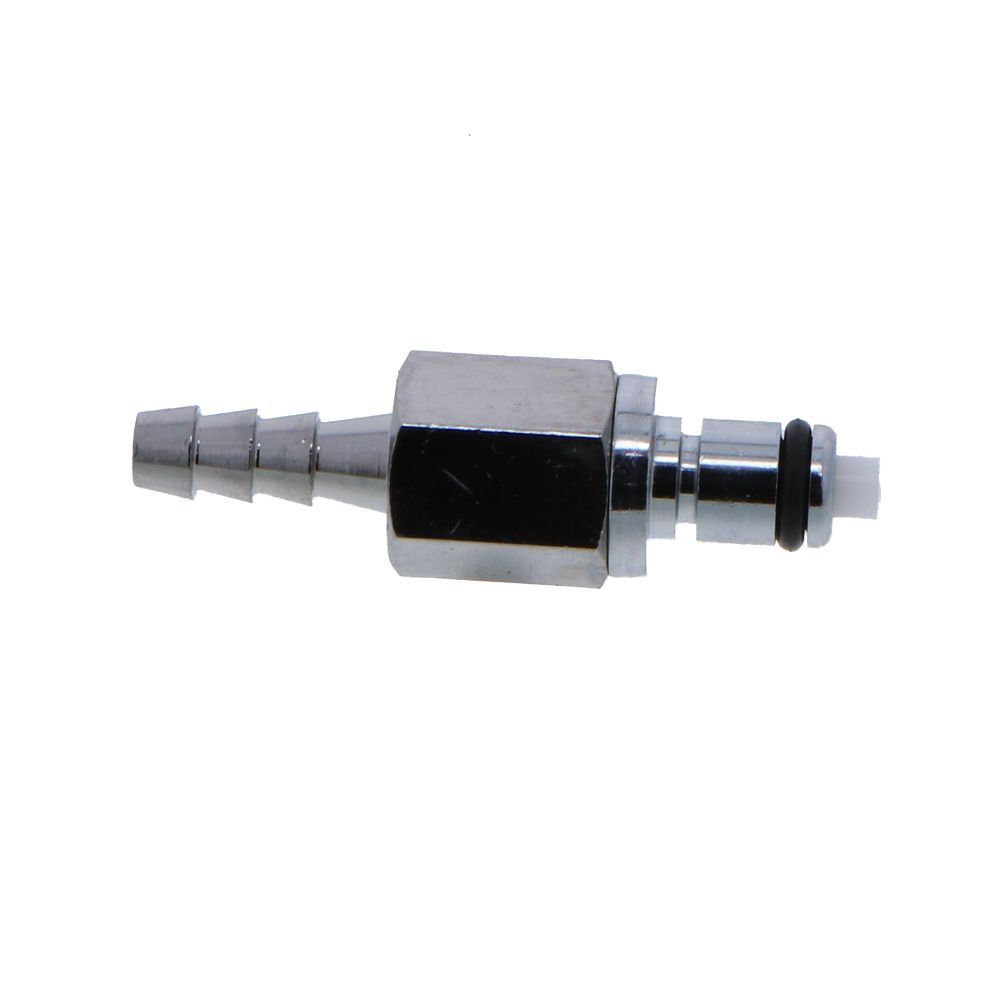

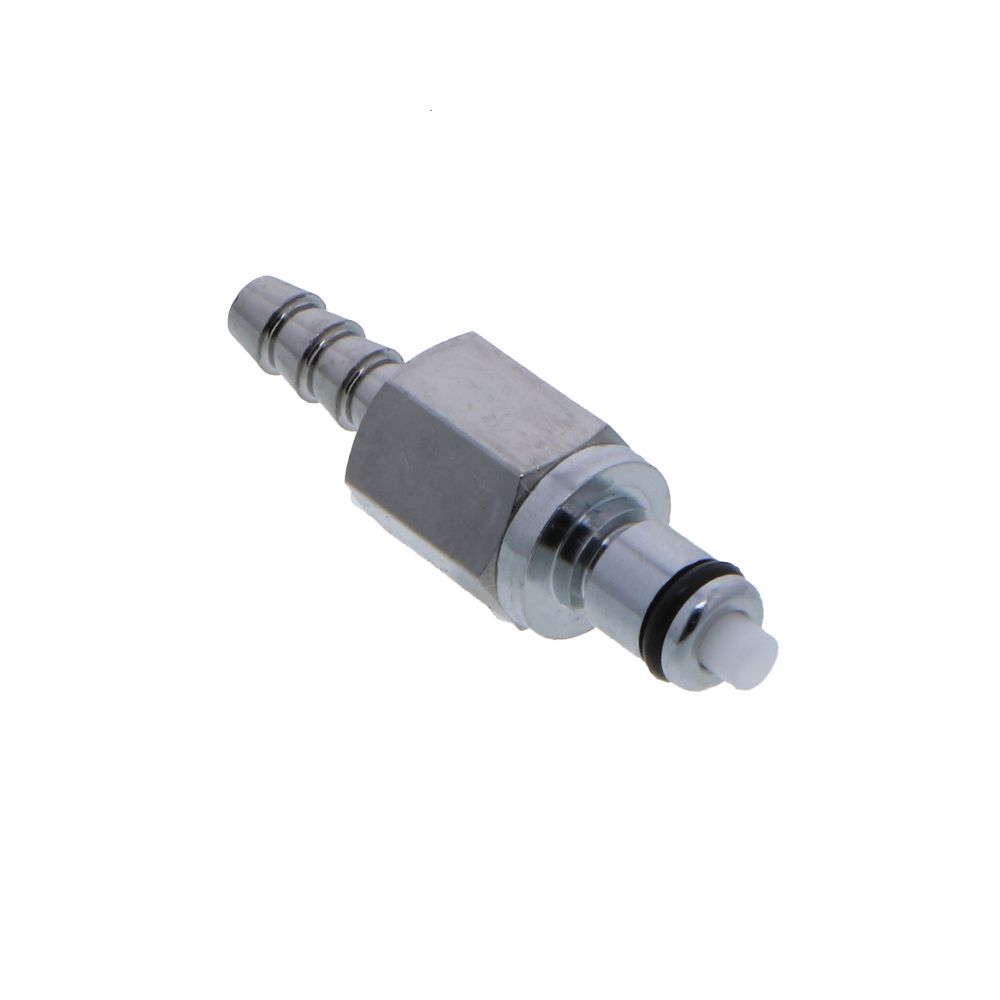

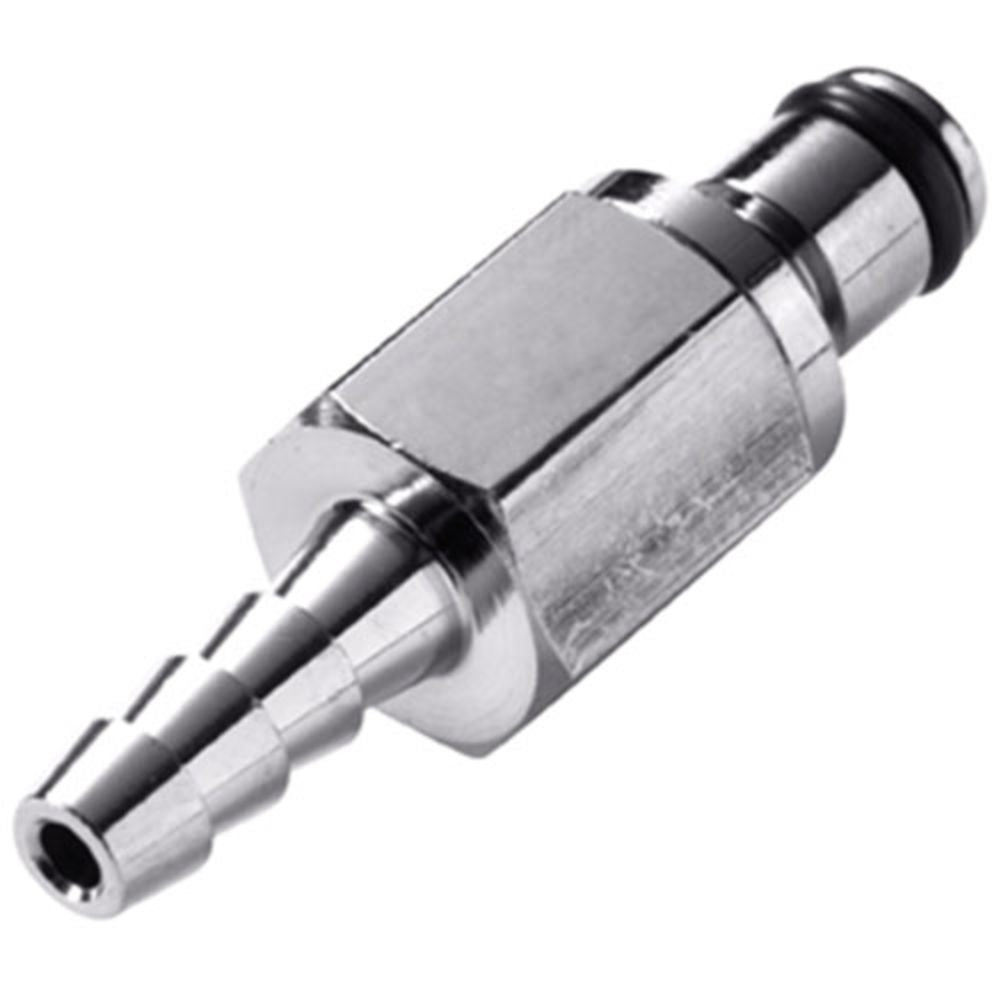

MCD2203V Valved In-Line Hose Barb Coupling Insert 3/16" ID Barb FKM (Viton) O-rings

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: Free Floating
Valve Option: Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: FKM Viton

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3/16" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	2
Seal Material	FKM (Viton)
Series	MC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Type	Coupling Insert

Product Details
Application	Water
Barb Size	3/16" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	2
Seal Material	FKM (Viton)
Series	MC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Type	Coupling Insert

Product Details
Application	Water
Barb Size	3/16" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	FKM (Viton)
Series	MC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Type	Coupling Insert
