Luminor Blackcomb Vending UV System LBV-061 - 6 GPM LP System, 3/4" MNPT ports, 110V./50-60Hz

Part Number: LBV-061
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
similar items
The Luminor Blackcomb Vending UV System LBV-061 is specifically designed for the microbiological protection of bottled water vending/dispensing machines, the Blackcomb vending system has all the features you need, and more, that place this design above all others.

Features:
  • Two Piece Design. Allows for flexible mounting inside an enclosed vending machine.
  • LED Indicators. A convenient visual sight port and a “power-on” LED indictor allow for easy confirmation of lamp operation, in addition to Green LED “lamp-on” indicator.

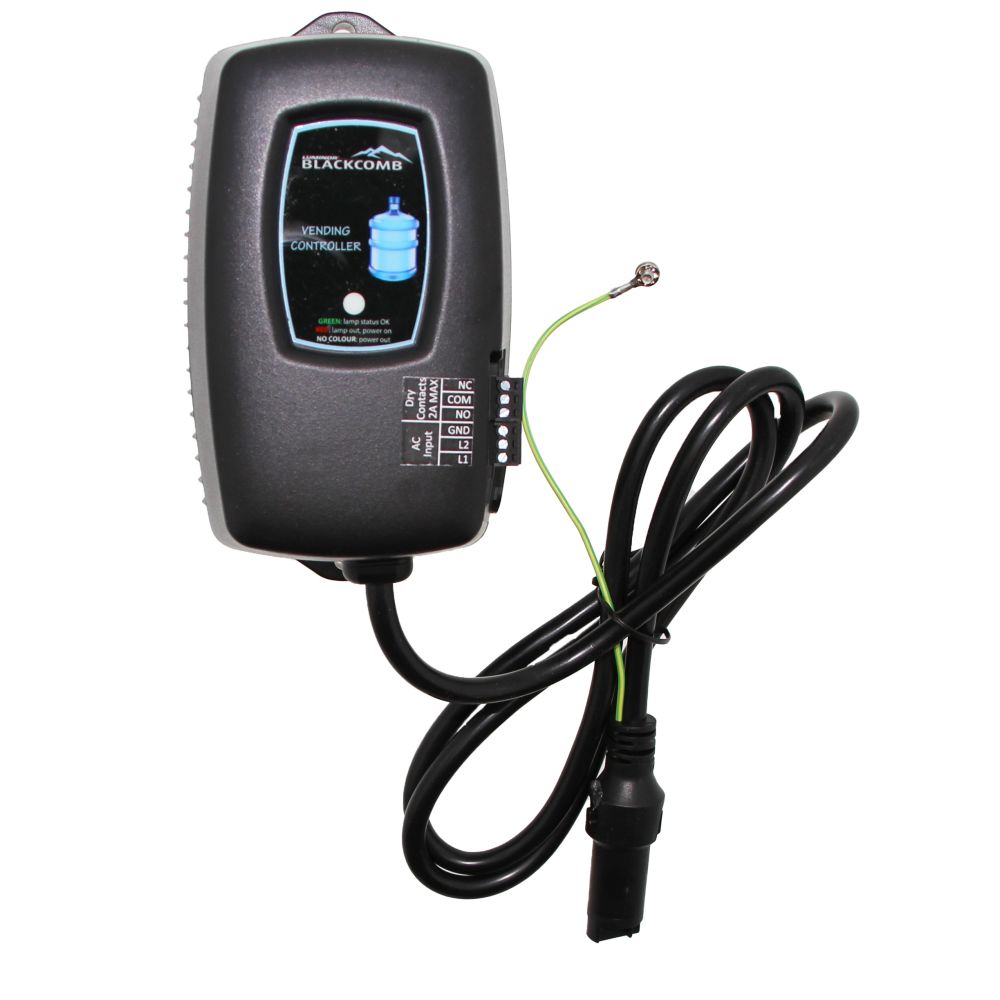

  • Fully potted, electronic ballast. Comes equipped with an integral aluminum heat sink case that allows for cool operation inside these sometime harsh conditions.
  • Easy-access industrial screw terminals. Provides simple connections for both power and volt free (dry) contacts allowing easy connection to the control board of the vending machine.

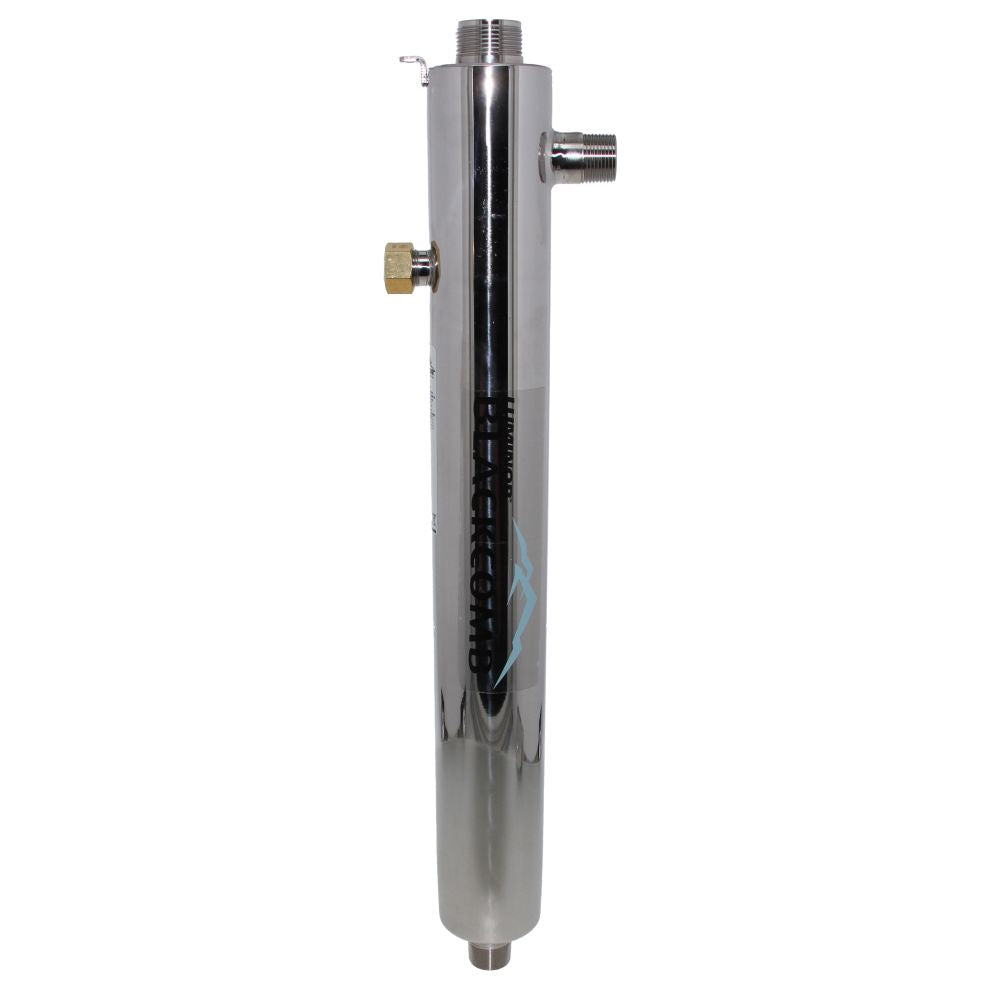

  • Rugged 304 stainless steel, single-end reactors. Designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems.
  • Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

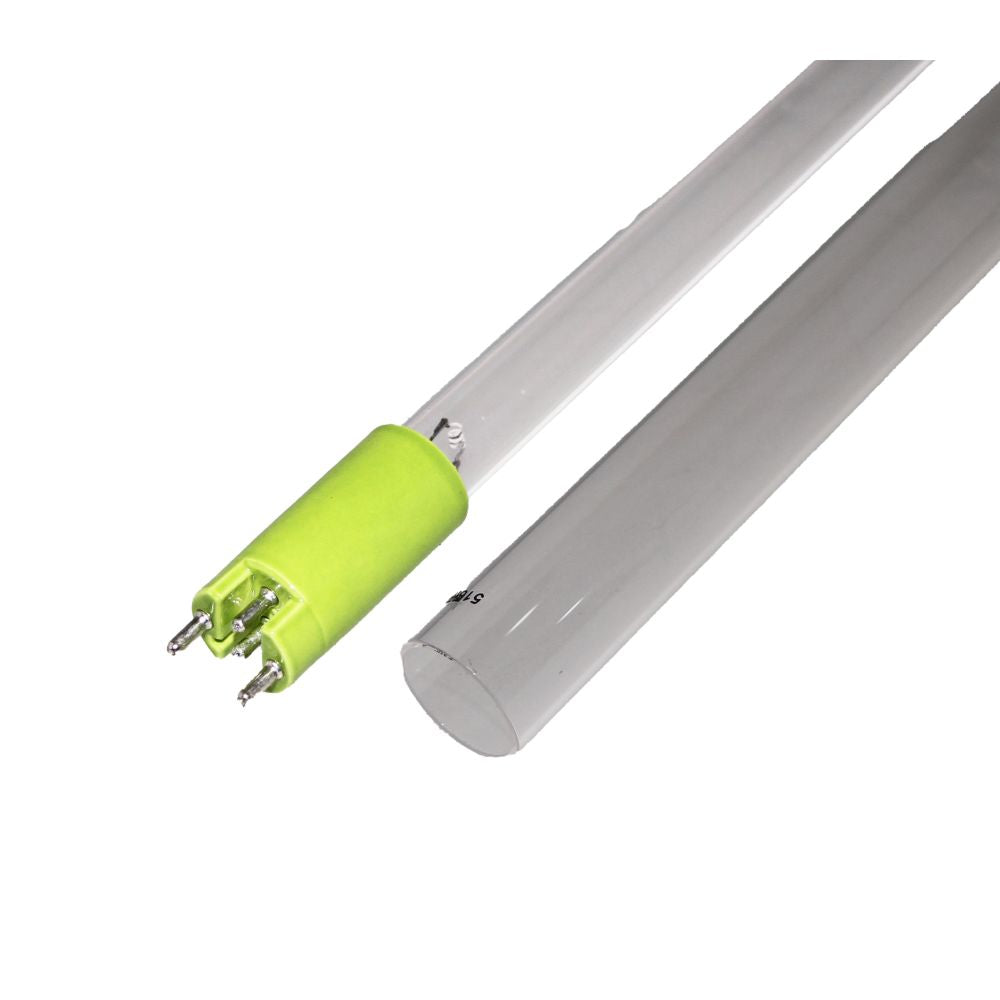

  • Low pressure (LP) coated UV lamps. Used offering a consistent output over their 9,000 hour rated life.

Specifications:
  • Port Size: 3/4" MNPT
  • Flow Rate*: 6 gpm
  • Electrical: 110V / 50-60Hz
  • Lamp Watts: 22
  • Max Operating Pressure: 10 bar (150 psi)
  • Operating Temperature Range: 36-104° F (2-40° C)



    *Please Note: Flow Rate @ 30 mJ/cm² - Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT


    Luminor Blackcomb UV Systems

    Model LB4-061 LB4-101 LB4-201 LBH4-251 (High Output) LBV-061 (Vending)
    Flow Rate 5.8 gpm 11 gpm 21 gpm 25 gpm 6 gpm
    Port Size ¾" MNPT ¾" MNPT 1" MNPT 1" MNPT ¾" MNPT
    Electrical 110-230V 110-230V 110-230V 110-230V 110-230V
    Lamp Watts 22 39 42 67 22
    Max Operating Pressure 150 psi 150 psi 150 psi 150 psi 150 psi
    Operating Temp. Range  36-104° F  36-104° F  36-104° F  36-104° F 36-104° F



    California residents Prop 65 Warning
    WARNING!
    This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

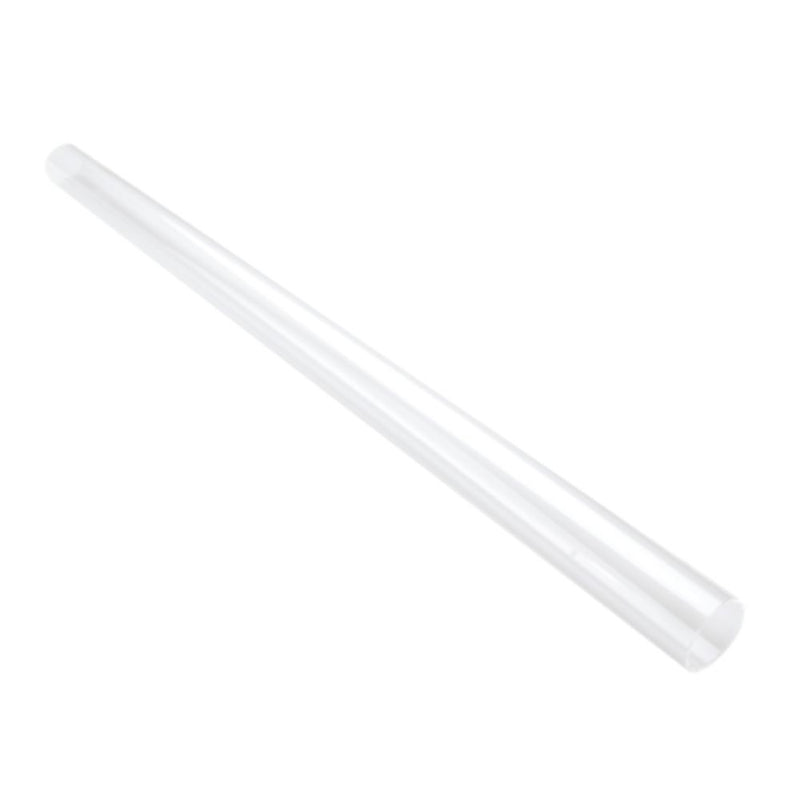

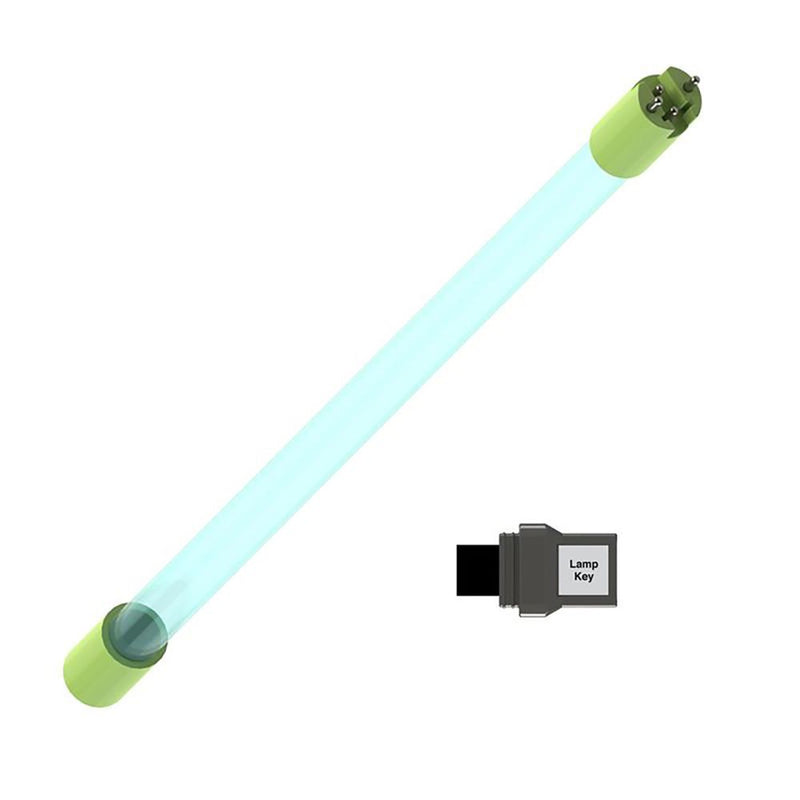

    replacement parts
