Home / UV Systems & Components / UV Water Treatment Systems / Luminor Blackcomb 4.1 UV System LB4-201 - 21 GPM LP System, 1" MNPT ports, 110V./50-60Hz
Luminor

Luminor Blackcomb 4.1 UV System LB4-201 - 21 GPM LP System, 1" MNPT ports, 110V./50-60Hz

Part Number: LB4-201
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
similar items

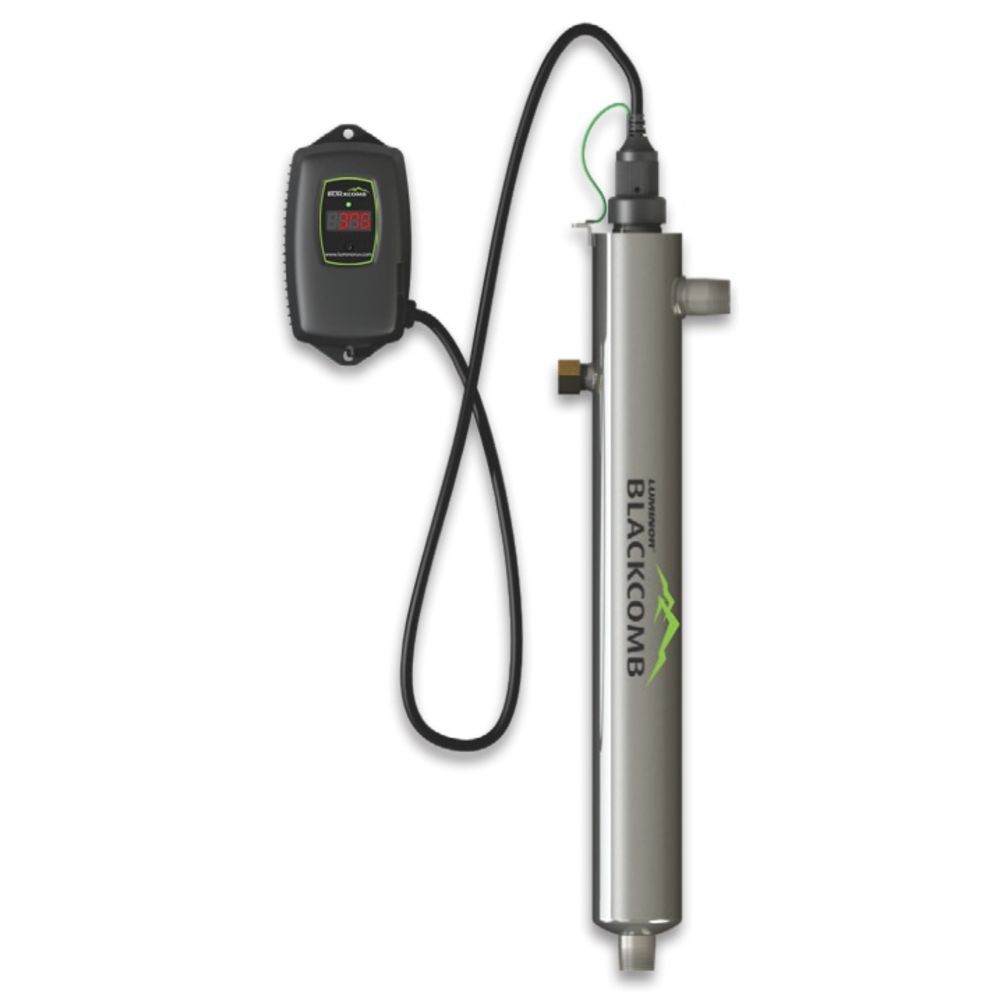

The Luminor Blackcomb 4.1 UV System LB4-201 is the mainstay of the home water treatment products. Simplicity and ease of operation were the fundamental design criteria in the creation of Blackcomb.

Features:

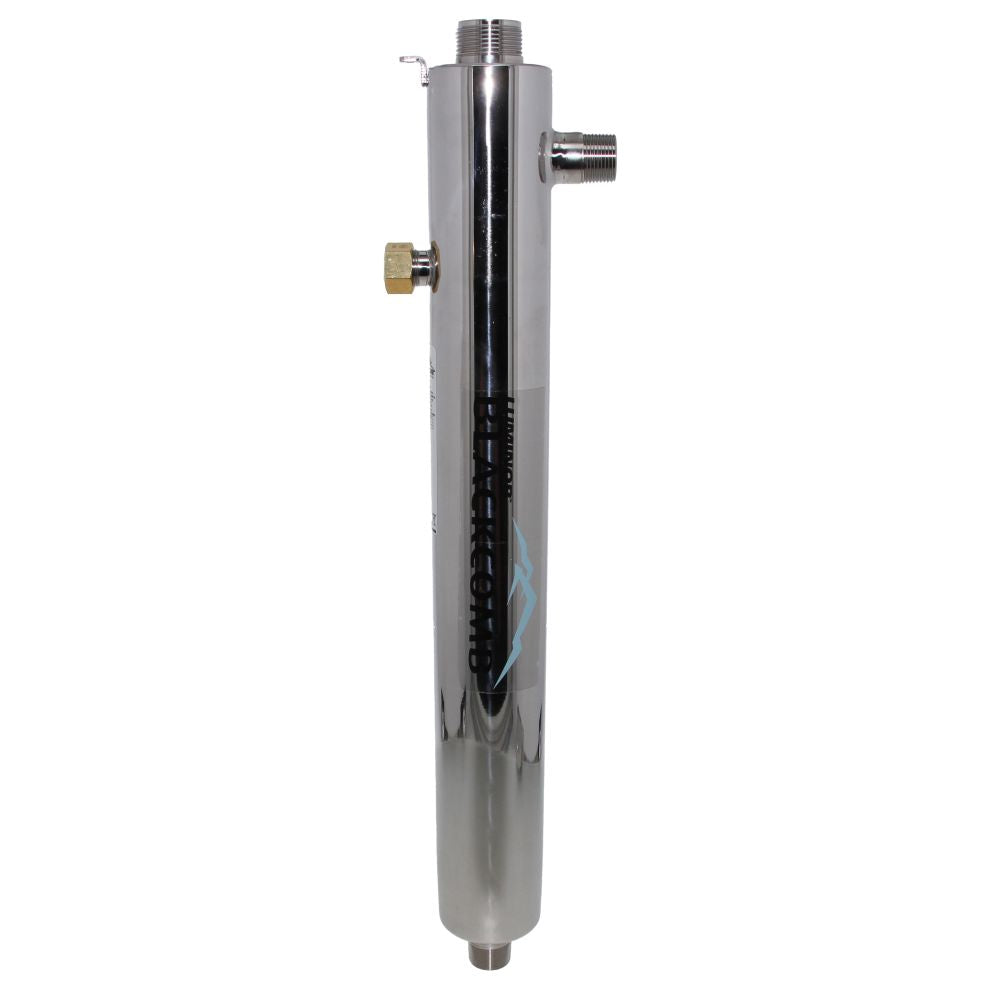

  • Rugged 304 stainless steel, single-end reactors. Designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems.
  • Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

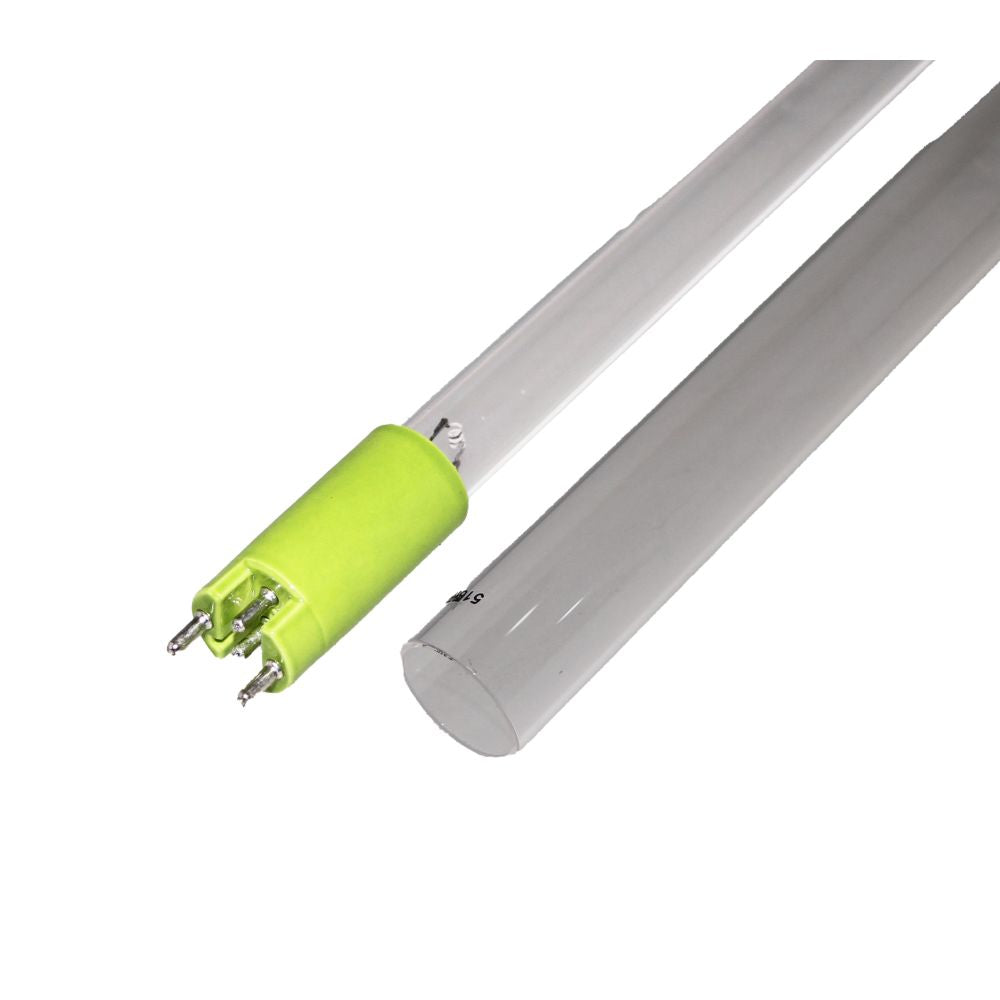

  • Low pressure (LP) coated UV lamps. Used offering a consistent output over their 9,000 hour rated life.

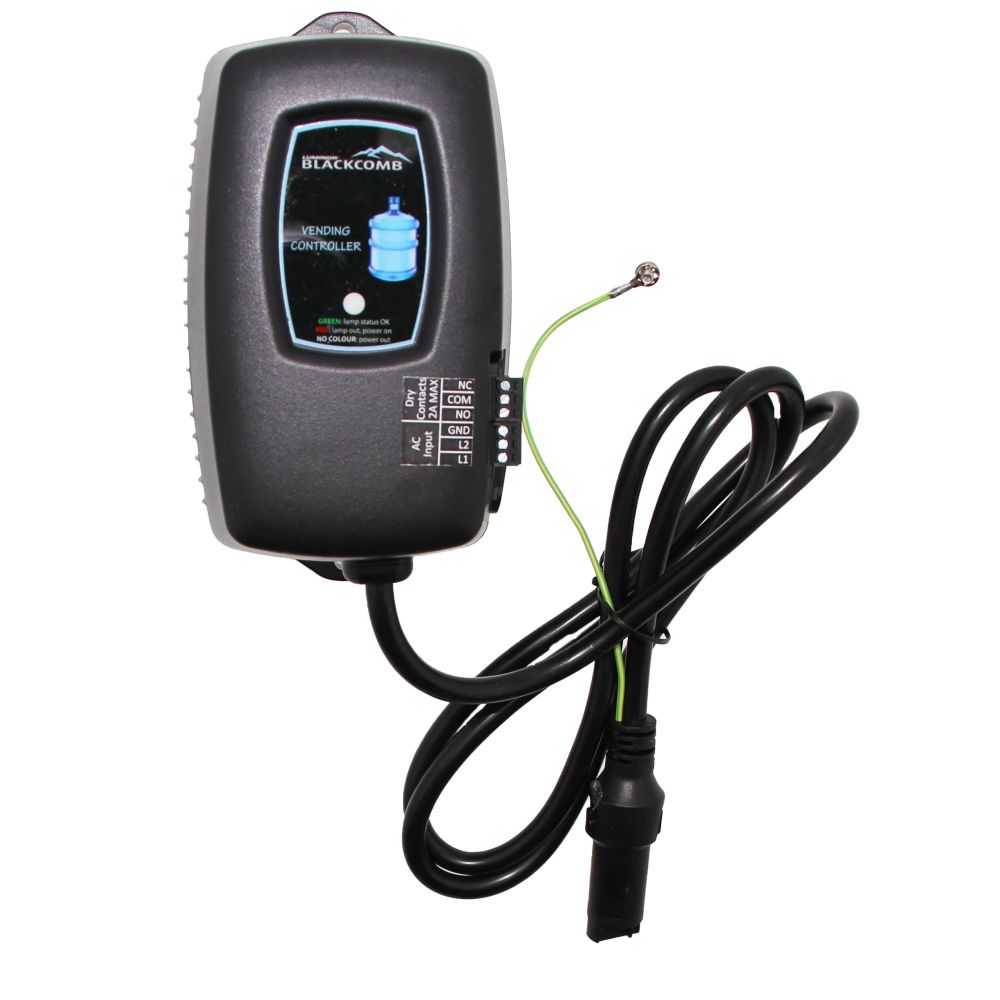

  • Audible and visual lamp failure indicators. The Blackcomb controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.

 Specifications:
  • Port Size: 1" MNPT
  • Flow Rate*: 21 gpm / 79 lpm
  • Electrical: 110V / 50-60Hz
  • Lamp Watts: 42
  • Max Operating Pressure: 10 bar (150 psi)
  • Operating Temperature Range: 36-104° F (2-40° C)

    *Please Note: Flow Rate @ 30 mJ/cm² - Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT

    Luminor Blackcomb UV Systems

    Model LB4-061 LB4-101 LB4-201 LBH4-251 (High Output) LBV-061 (Vending)
    Flow Rate 5.8 gpm 11 gpm 21 gpm 25 gpm 6 gpm
    Port Size ¾" MNPT ¾" MNPT 1" MNPT 1" MNPT ¾" MNPT
    Electrical 110-230V 110-230V 110-230V 110-230V 110-230V
    Lamp Watts 22 39 42 67 22
    Max Operating Pressure 150 psi 150 psi 150 psi 150 psi 150 psi
    Operating Temp. Range  36-104° F  36-104° F  36-104° F  36-104° F 36-104° F



    California residents Prop 65 Warning
    WARNING!
    This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
