Luminor Blackcomb 4.1 High Output UV System LBH4-251 - 25 GPM LP-HO System, 1" MNPT ports, 110V./50-60Hz

Part Number: LBH4-251
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
similar items

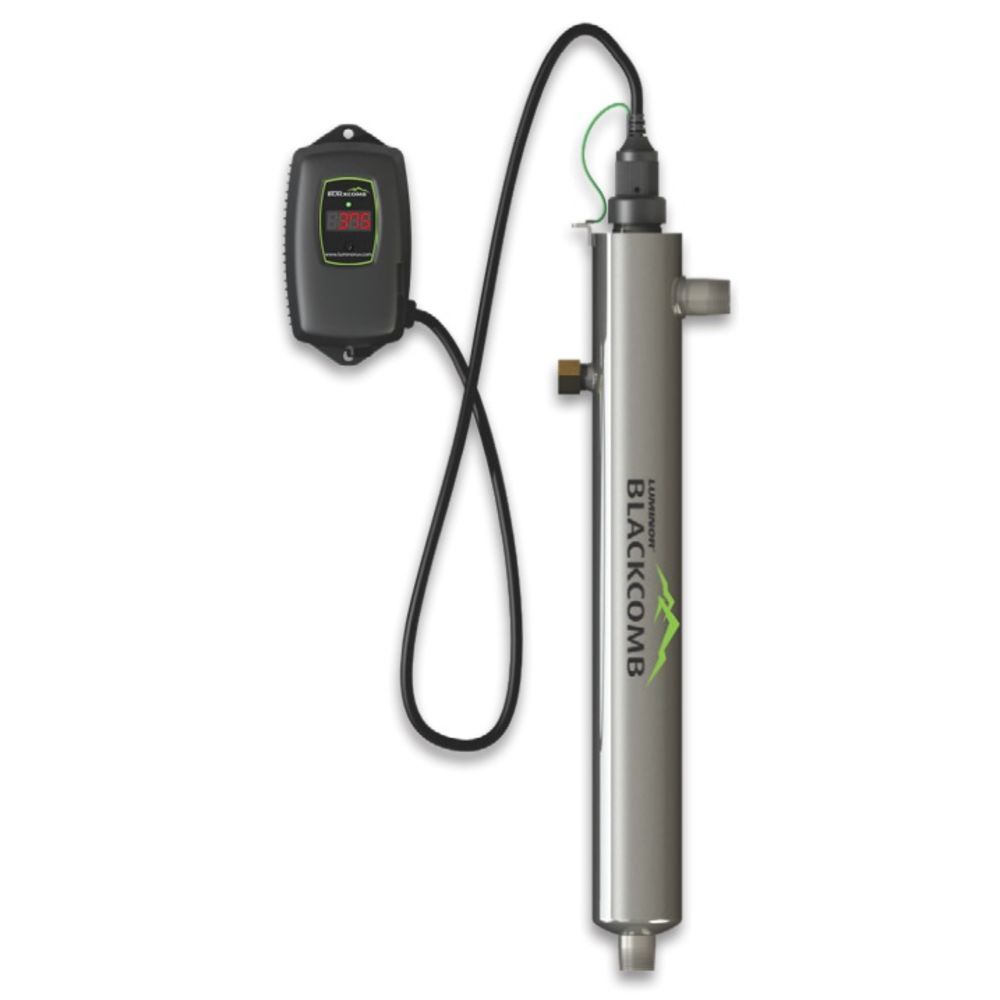

The Luminor Blackcomb 4.1 High Output UV System LBH4-251 is classified as a "Residential Crossover" UV water treatment system. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment.

Features:

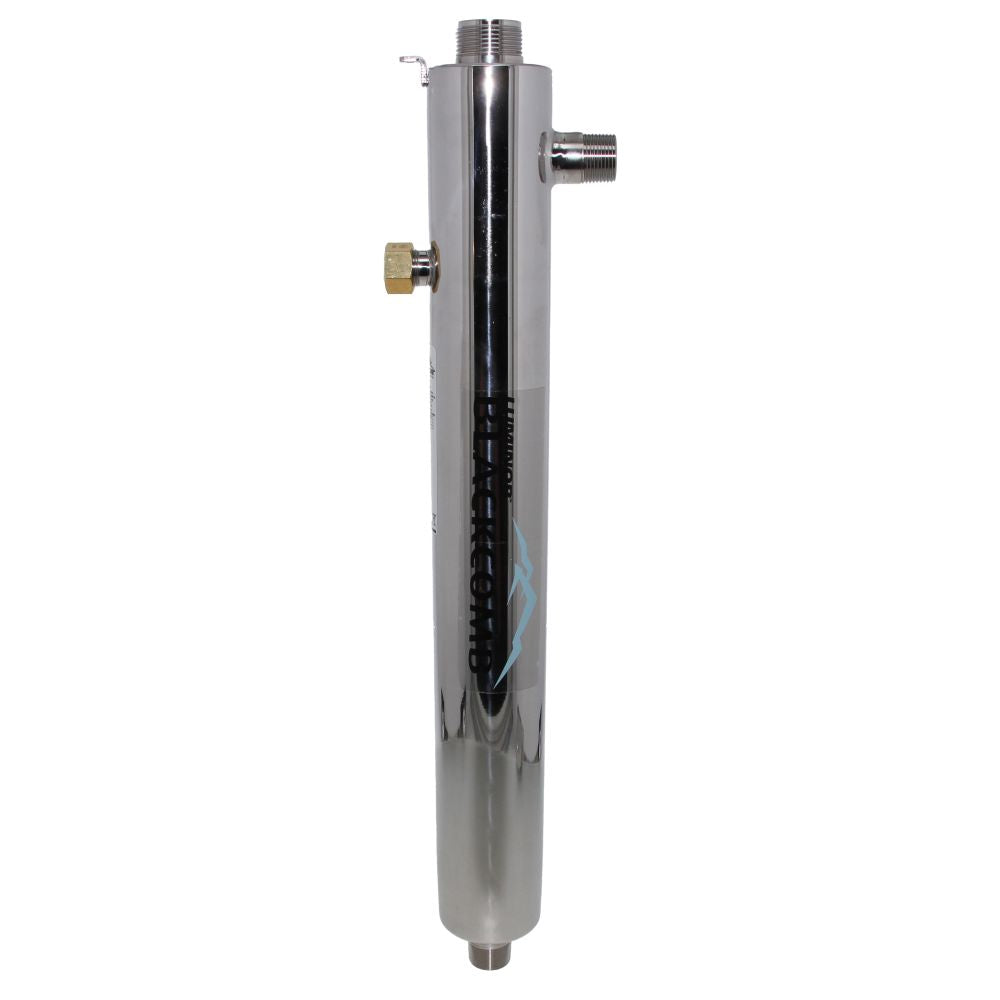

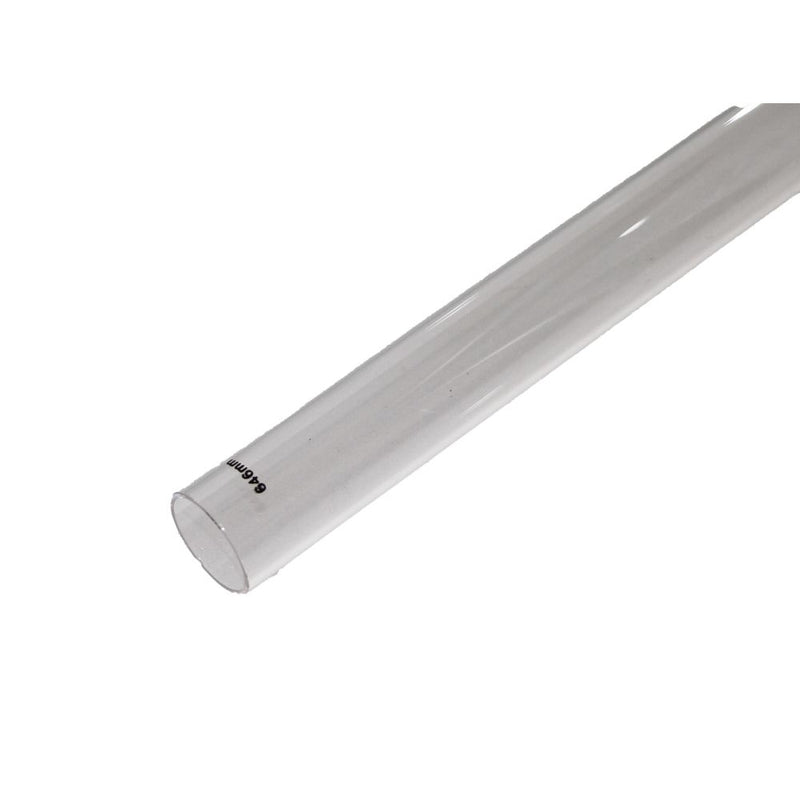

  • Commercial grade axial flow 316L stainless steel reactors. Designed & manufactured to ASME pressure vessel standards allow for easy sleeve change without the need to drain the reactor chamber as in competitive systems.
  • Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

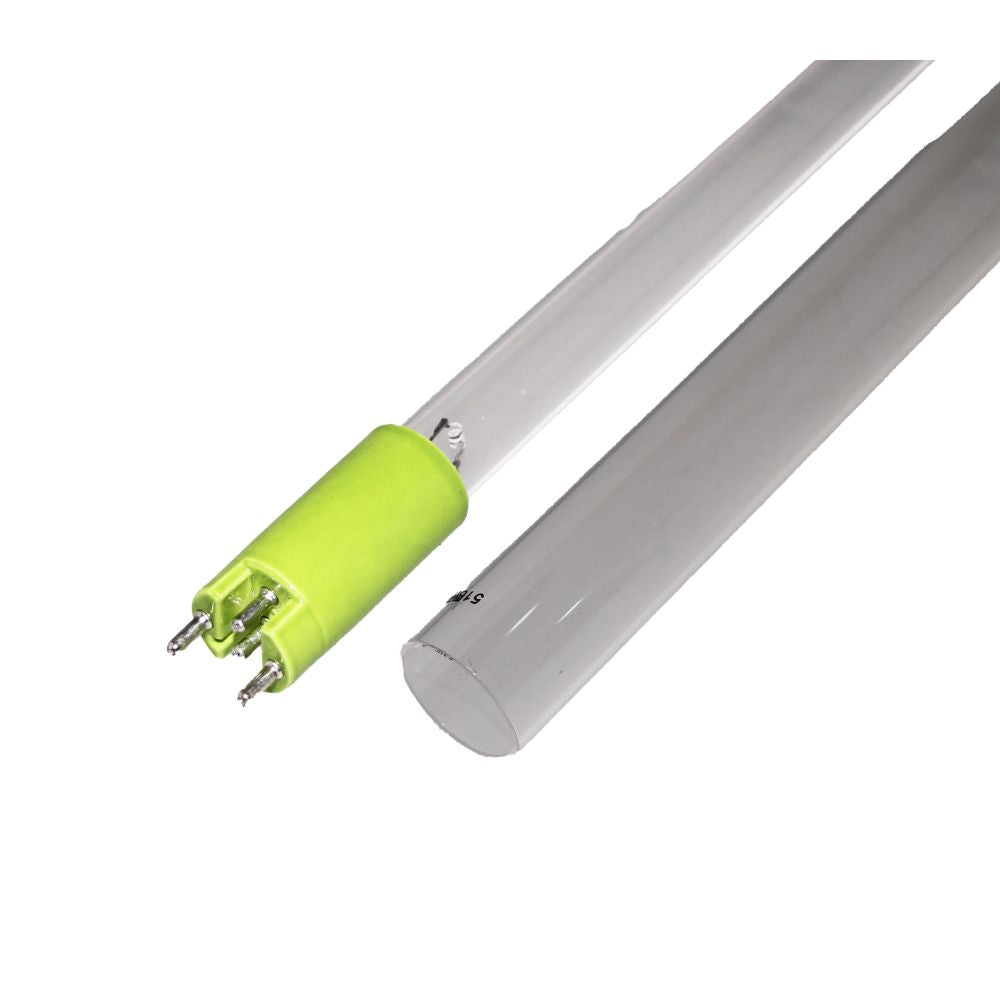

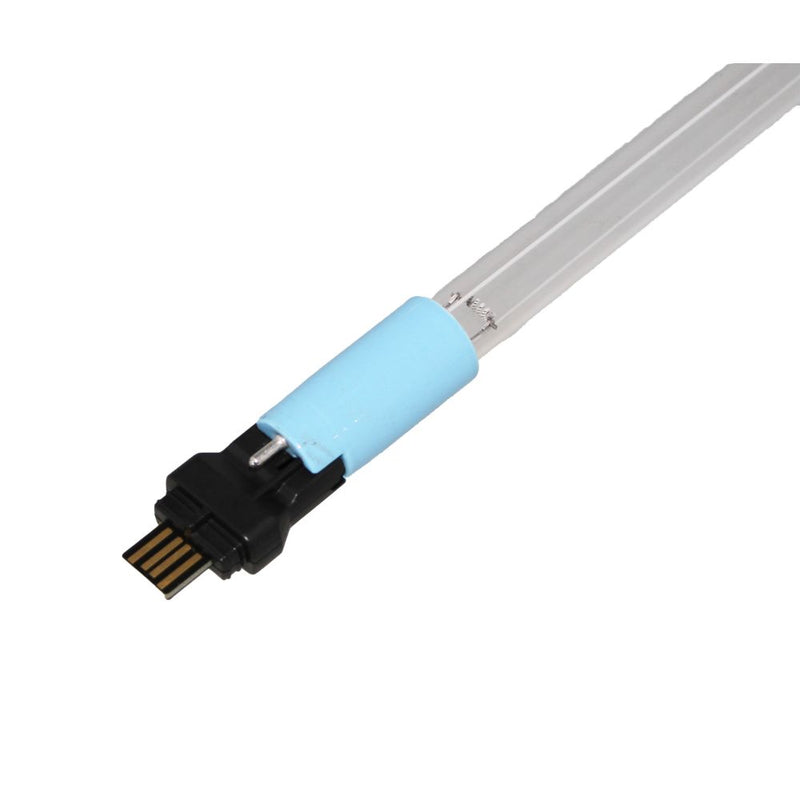

  • Increased power density. Incorporates low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour rated life

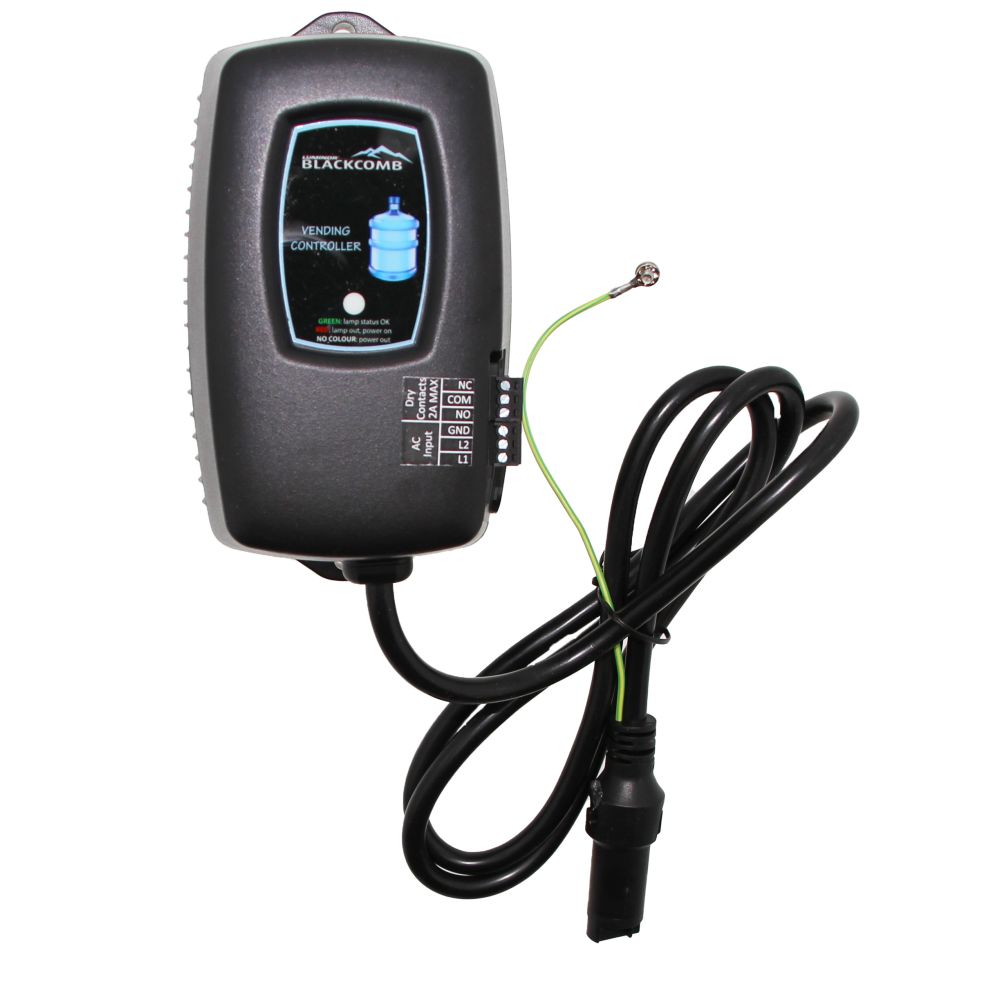

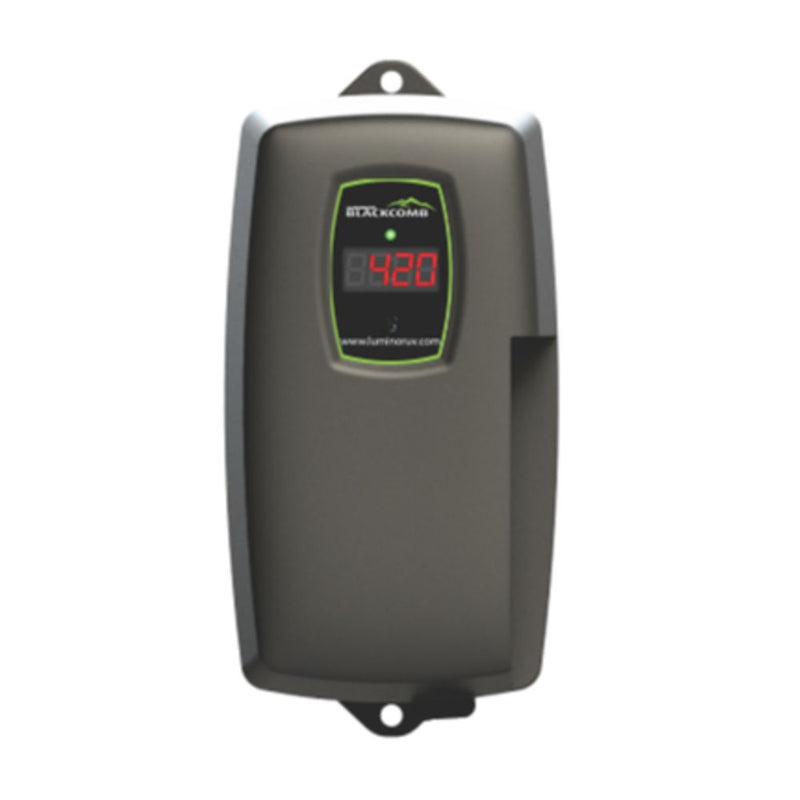

  • Audible and visual lamp failure indicators. The Blackcomb controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.

 Specifications:
  • Port Size: 1" MNPT
  • Flow Rate*: 25 gpm
  • Electrical: 110V / 50-60Hz
  • Lamp Watts: 67
  • Max Operating Pressure: 10 bar (150 psi)
  • Operating Temperature Range: 36-104° F (2-40° C)

    *Please Note: Flow Rate @ 30 mJ/cm² - Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT

    Luminor Blackcomb UV Systems

    Model LB4-061 LB4-101 LB4-201 LBH4-251 (High Output) LBV-061 (Vending)
    Flow Rate 5.8 gpm 11 gpm 21 gpm 25 gpm 6 gpm
    Port Size ¾" MNPT ¾" MNPT 1" MNPT 1" MNPT ¾" MNPT
    Electrical 110-230V 110-230V 110-230V 110-230V 110-230V
    Lamp Watts 22 39 42 67 22
    Max Operating Pressure 150 psi 150 psi 150 psi 150 psi 150 psi
    Operating Temp. Range  36-104° F  36-104° F  36-104° F  36-104° F 36-104° F
