Home / Fittings / Quick-Disconnect Fittings / LQ6D10006RED Valved Pipe Thread Liquid Cooling Coupling Body 3/8 NPT Warm Red

Colder Products

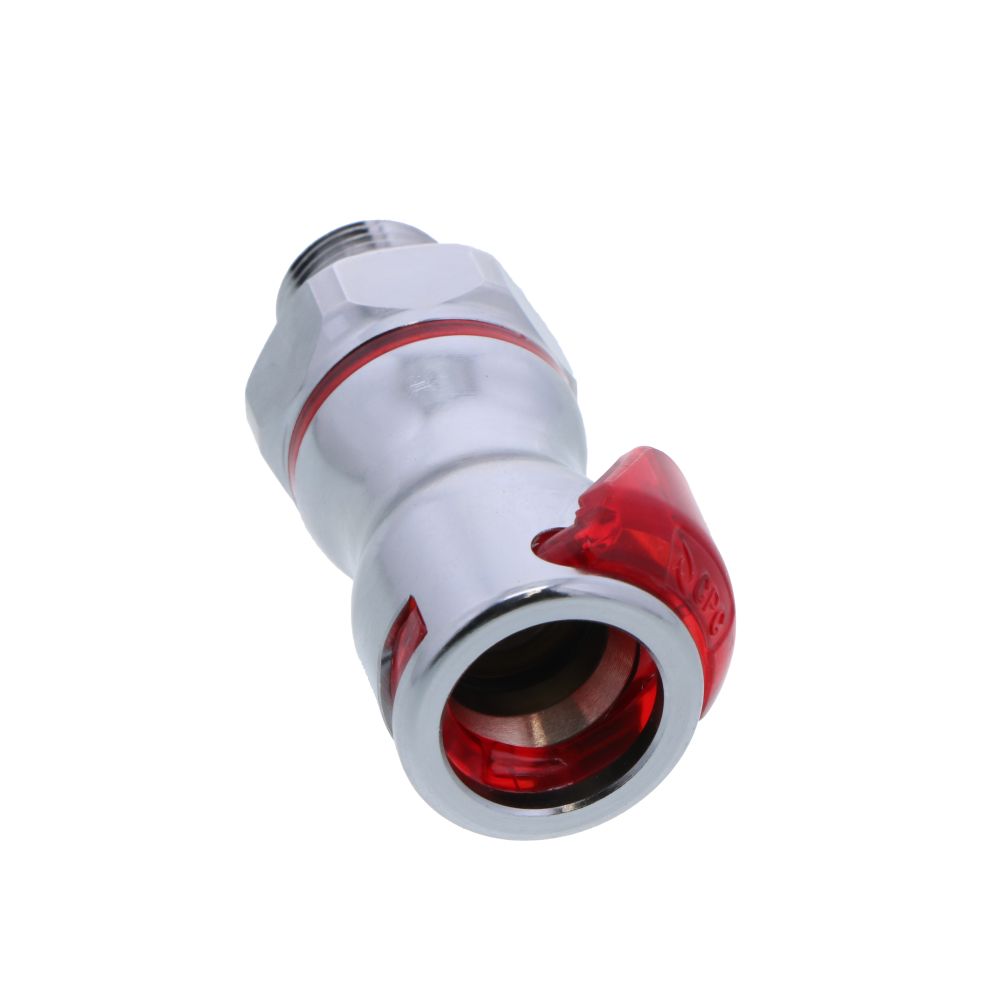

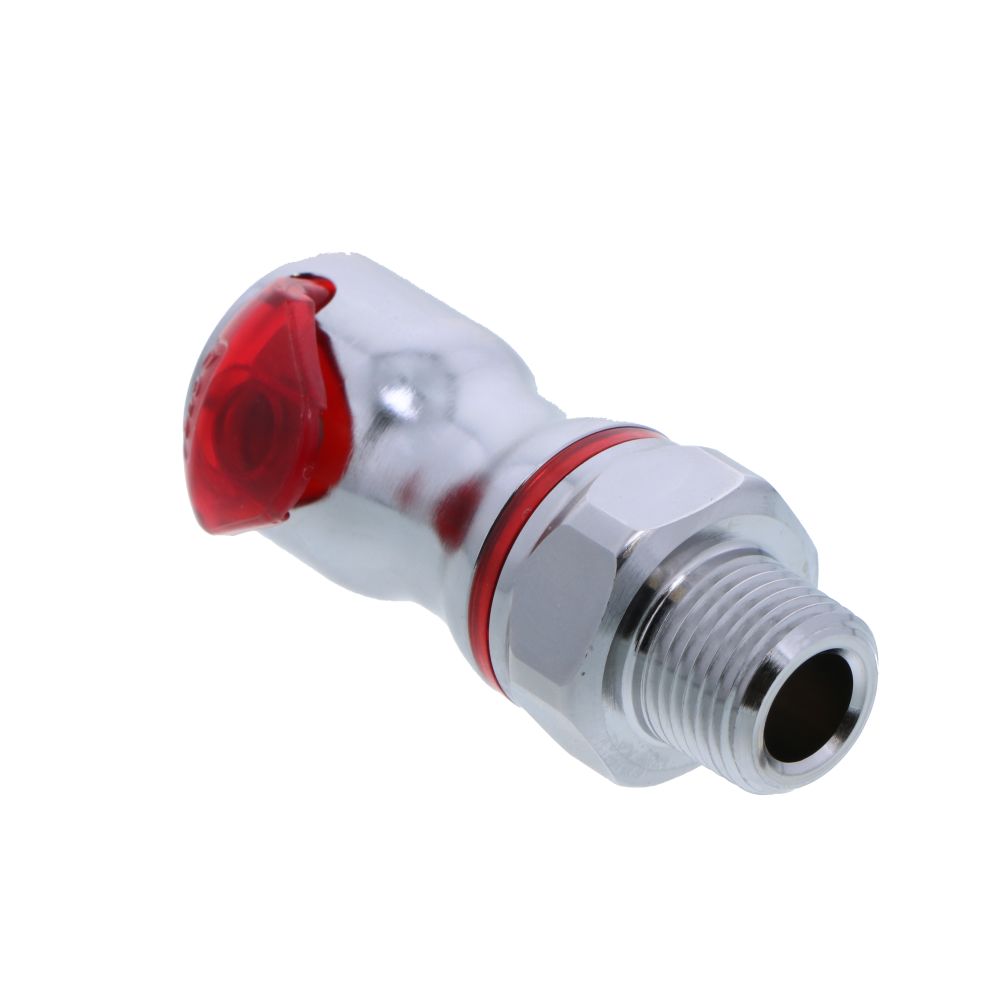

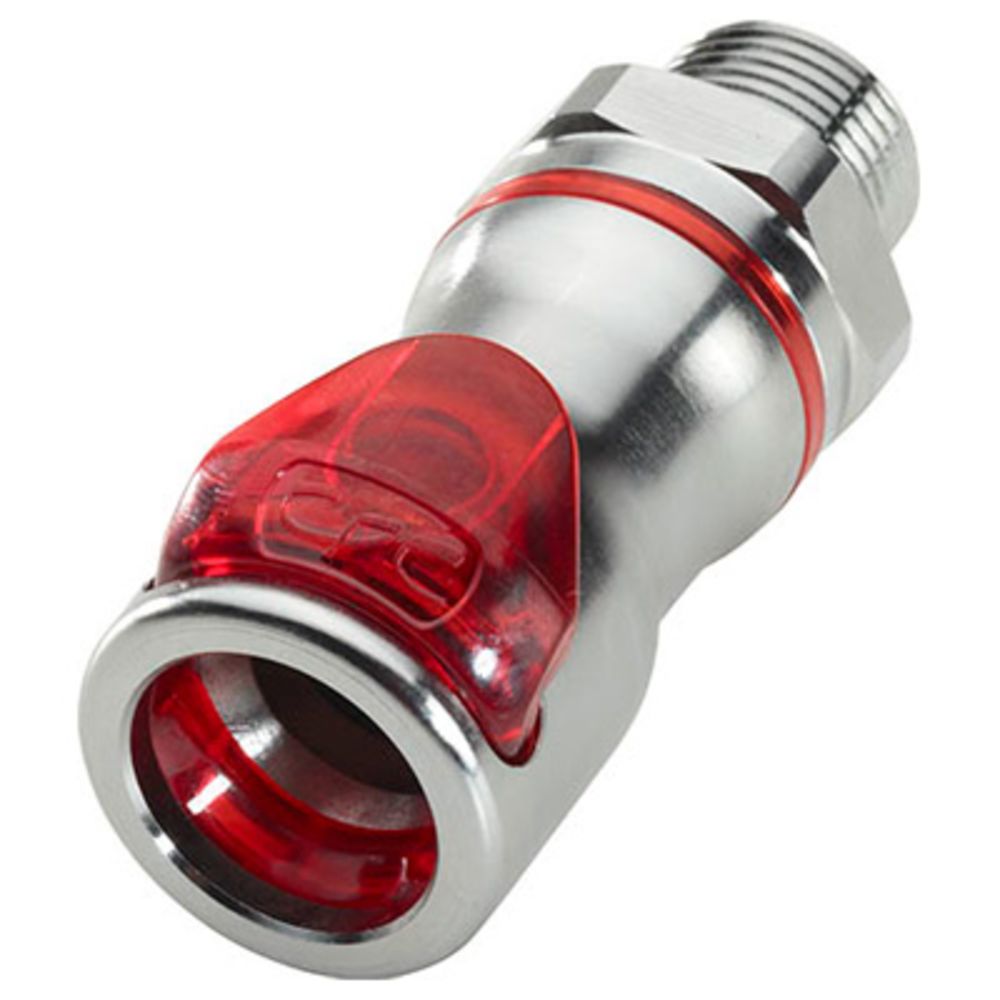

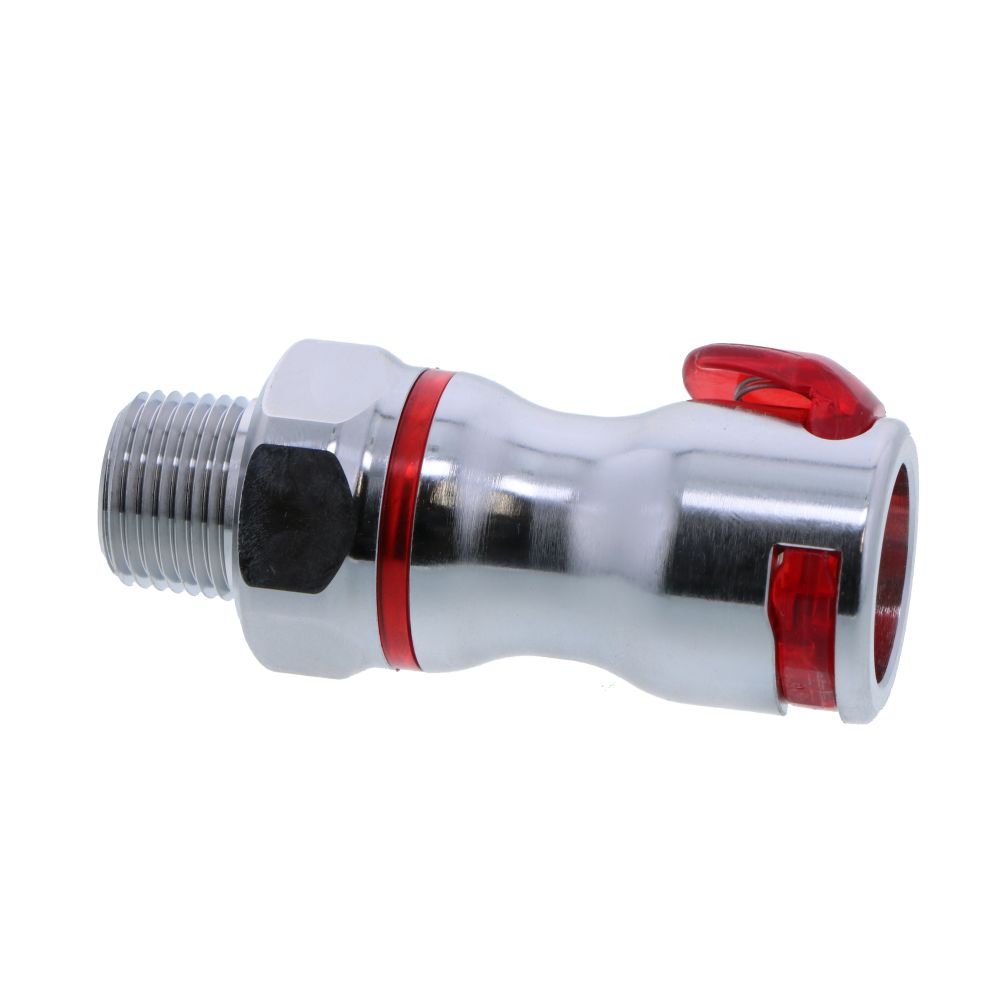

LQ6D10006RED Valved Pipe Thread Liquid Cooling Coupling Body 3/8 NPT Warm Red

Part Number: RPLQ4D46004RED

out of stock

Your price:

$33.56

Product not eligible for free shipping. Learn more

Choose

Single

Bag of 10

Pack of 100

Quantity

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

Specifications:

Material: Brass
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: 3/8 NPT Thread
Valve Option: Valved
Finish: Chrome
Color Coding: Cool Blue or Warm Red
Temperature Range: -0ºF to 240ºF
Max Flow at Disconnect: 4.0 gpm
Valve Spring: 302 Stainless Steel
Valves and Thumb Latch: Polysulfone
Lubricants: Krytox® PFPE
Seal Options: EPDM
Spillage:
<0.05 cc per disconnect (at 0 psi)
<0.125 cc per disconnect (at 120 psi)
Inclusion: <0.42 cc per connect

Product Details
Application	Water Cooling Systems
Body Material	Chrome-Plated Brass
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	EPDM
Series	LQ6
Shape	Straight
Size	3/8"
Spring	302 Stainless Steel
Thumb Latch	Polysulfone
Valve Type	Valved
Color / Finish	Red
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water Cooling Systems
Body Material	Chrome-Plated Brass
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	EPDM
Series	LQ6
Shape	Straight
Size	3/8"
Spring	302 Stainless Steel
Thumb Latch	Polysulfone
Valve Type	Valved
Color / Finish	Red
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water Cooling Systems
Body Material	Chrome-Plated Brass
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	EPDM
Series	LQ6
Shape	Straight
Size	3/8"
Spring	302 Stainless Steel
Thumb Latch	Polysulfone
Valve Type	Valved
Color / Finish	Red
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

Material: Brass
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: 3/8 NPT Thread
Valve Option: Valved
Finish: Chrome
Color Coding: Cool Blue or Warm Red
Temperature Range: -0ºF to 240ºF
Max Flow at Disconnect: 4.0 gpm
Valve Spring: 302 Stainless Steel
Valves and Thumb Latch: Polysulfone
Lubricants: Krytox® PFPE
Seal Options: EPDM
Spillage:
<0.05 cc per disconnect (at 0 psi)
<0.125 cc per disconnect (at 120 psi)
Inclusion: <0.42 cc per connect
