Home / Fittings / Quick-Disconnect Fittings / LQ2D2304LBLU Valved Elbow Locking Hose Barb Harb Liquid Cooling Coupling Insert 1/4"

Colder Products

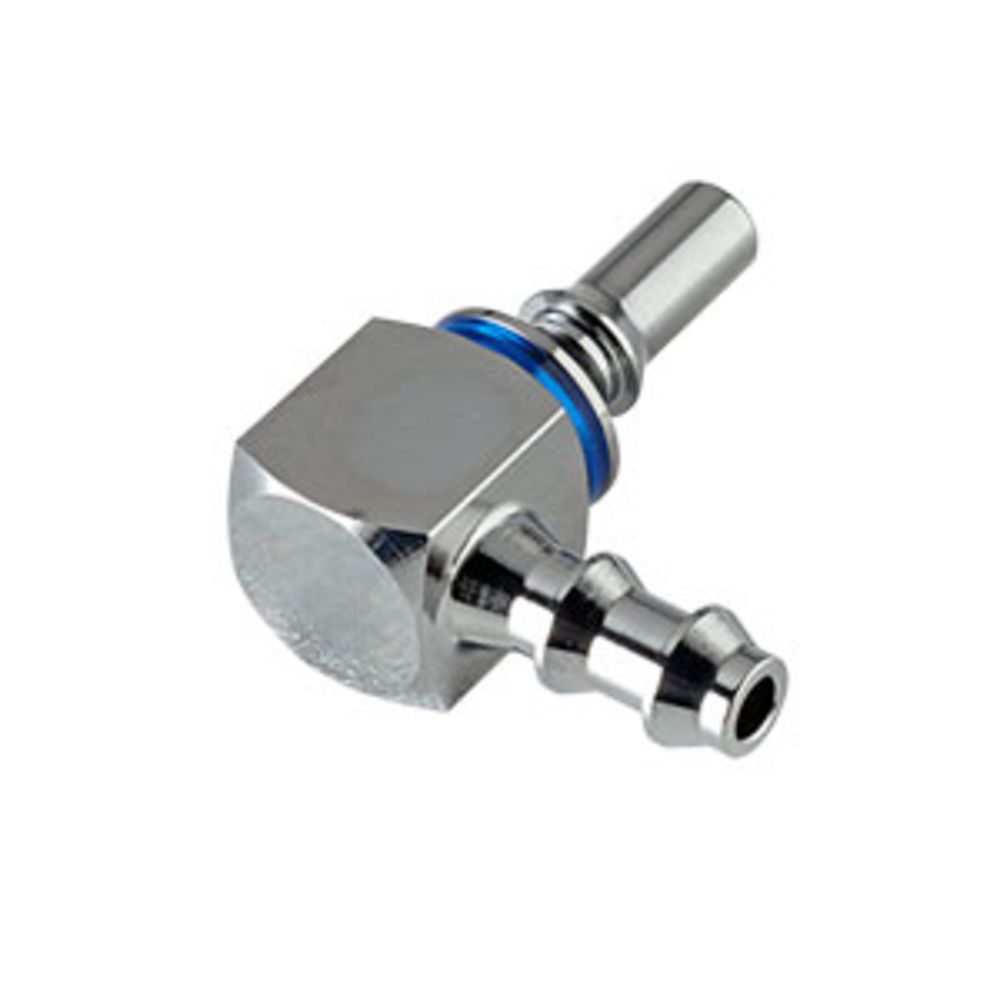

LQ2D2304LBLU Valved Elbow Locking Hose Barb Harb Liquid Cooling Coupling Insert 1/4"

Part Number: BACD16004MBLK

out of stock

This item is discontinued. We recommend the BACD16004 Valved In-Line Panel Mount Hose Barb BreakAway Coupling Body 1/4 ID Barb as a substitute.

MSRP: $16.90

Your price:

$16.90

Product not eligible for free shipping. Learn more

Choose

Single

Bag of 10

Pack of 100

Quantity

LQ2 Series provides ultra-reliable, drip-less connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome with cool blue
Mounting Option: Free Floating
Pressure Range: Vacuum to 200 psi, 13.8 bar
Temperature Range: 0°C to 240°F
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi

Product Details
Application	Water Cooling Systems
Barb Size	1/4" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	200
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	LQ2
Shape	90
Spring	Stainless Steel
Valve Type	Valved
Color / Finish	Blue
Type	Coupling Insert

Product Details
Application	Water Cooling Systems
Barb Size	1/4" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	200
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	LQ2
Shape	90
Spring	Stainless Steel
Valve Type	Valved
Color / Finish	Blue
Type	Coupling Insert

Product Details
Application	Water Cooling Systems
Barb Size	1/4" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	200
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	LQ2
Shape	90
Spring	Stainless Steel
Valve Type	Valved
Color / Finish	Blue
Type	Coupling Insert

Material: Brass
Material Finish: Chrome
Color: Chrome with cool blue
Mounting Option: Free Floating
Pressure Range: Vacuum to 200 psi, 13.8 bar
Temperature Range: 0°C to 240°F
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
