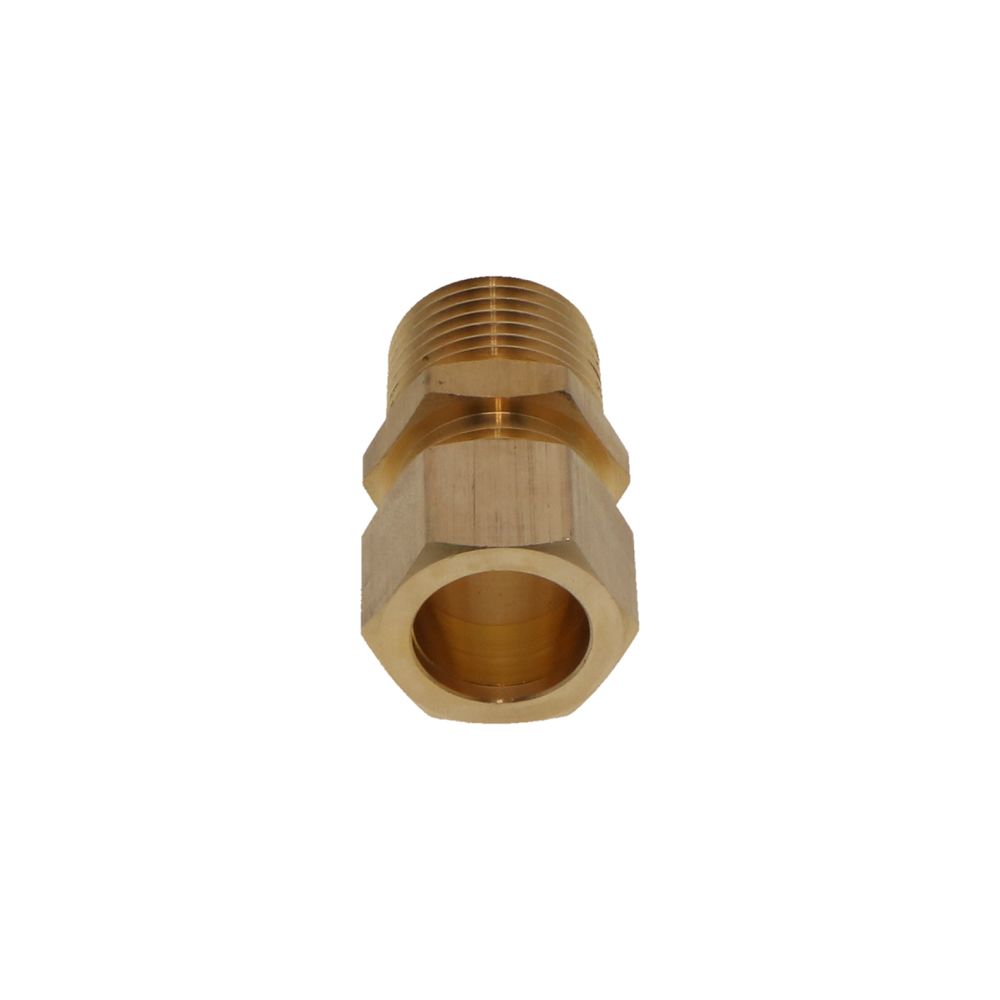

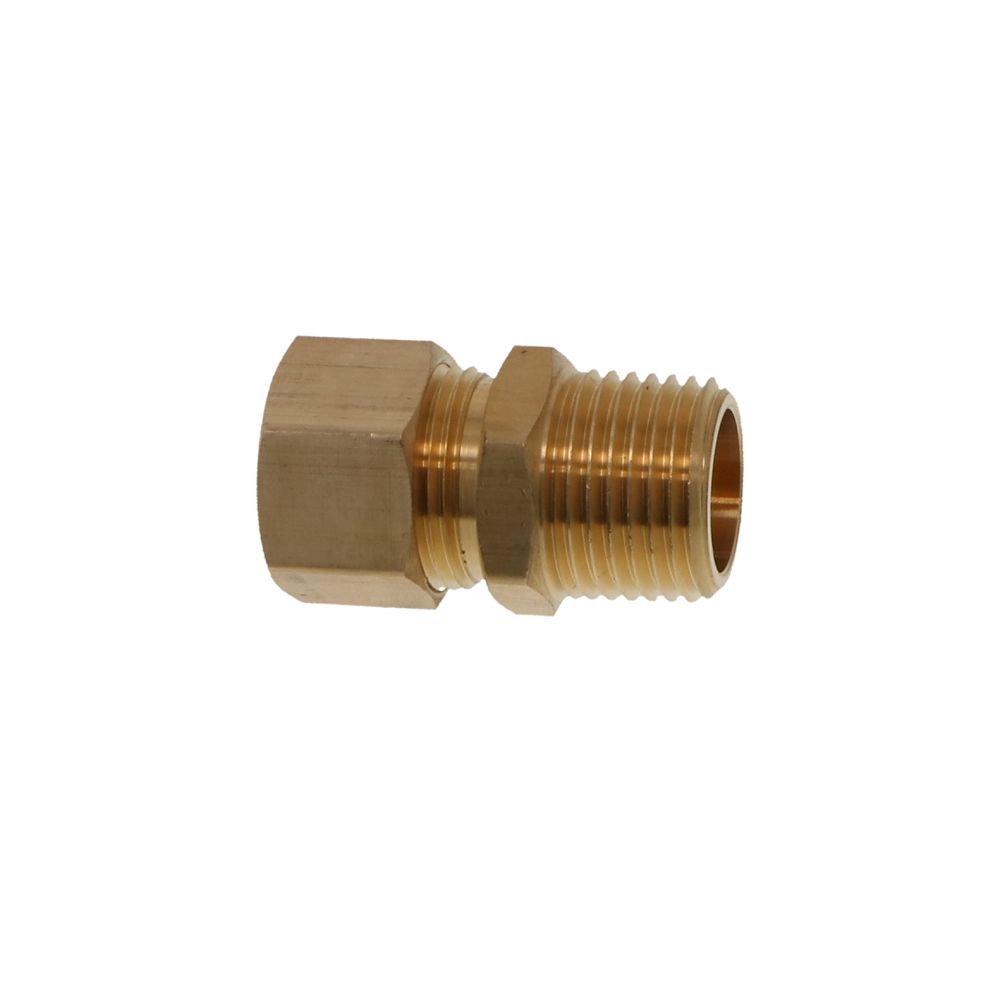

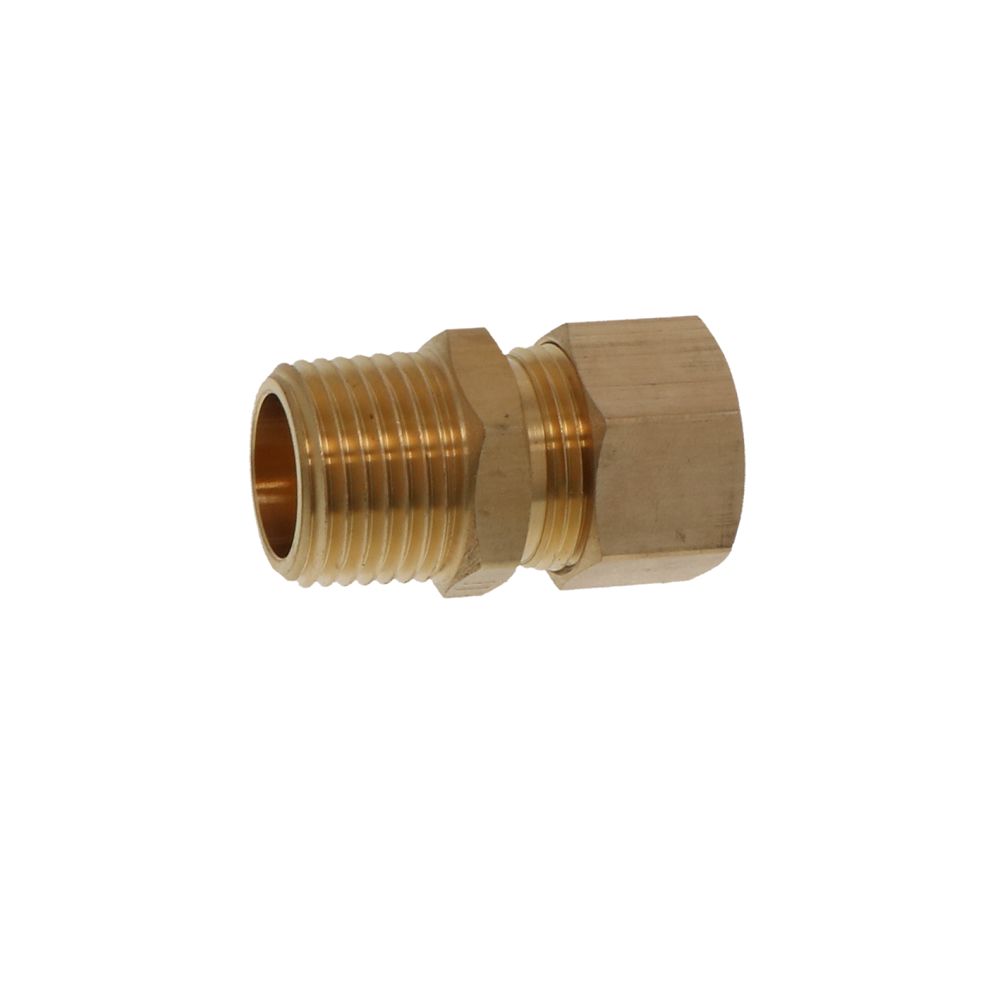

Lead-Free Brass Male Connector 5/8 Compression x 1/2 MPT

Part Number: HP-PP-26200-0.1226FL-E

Alt. Part Number: 700066-1008

in stock

Available to ship in 3-5 business days.

Your price:

$104.94

Choose

Single

Bag of 25

Quantity

The Lead-Free BCMC-5812 brass male connector is 5/8 compression by 1/2 MPT. It is manufactured to work with medium pressure tubing connection. This connector is not recommended for use with steel tubing, it should be used with copper, brass, and aluminum.

Specifications:

5/8 compression x 1/2MPT thread
Material: brass

Assembly Instructions:

Slide nut, then sleeve into tubing. The thread end of the nut must face out.
Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
Assemble nut to body, and tighten.

Product Details
Application	Water Gas Air Oil
Body Material	Lead Free Brass
Inlet Connection	5/8" Compression 1/2" MPT
Mounting Options	Thread
Outlet Connection	5/8" Compression,1/2" MPT
Push-In Size	5/8" OD
Series	LF Brass
Shape	Straight
Size	5/8" 1/2"
Color / Finish	Brass
Connection Type	Male (MPT) Compression
Type	Adapter

Product Details
Application	Water Gas Air Oil
Body Material	Lead Free Brass
Inlet Connection	5/8" Compression 1/2" MPT
Mounting Options	Thread
Outlet Connection	5/8" Compression 1/2" MPT
Push-In Size	5/8" OD
Series	LF Brass
Shape	Straight
Size	5/8" 1/2"
Color / Finish	Brass
Connection Type	Male (MPT) Compression
Type	Adapter

5/8 compression x 1/2MPT thread
Material: brass

Assembly Instructions:

Slide nut, then sleeve into tubing. The thread end of the nut must face out.
Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
Assemble nut to body, and tighten.
