John Guest

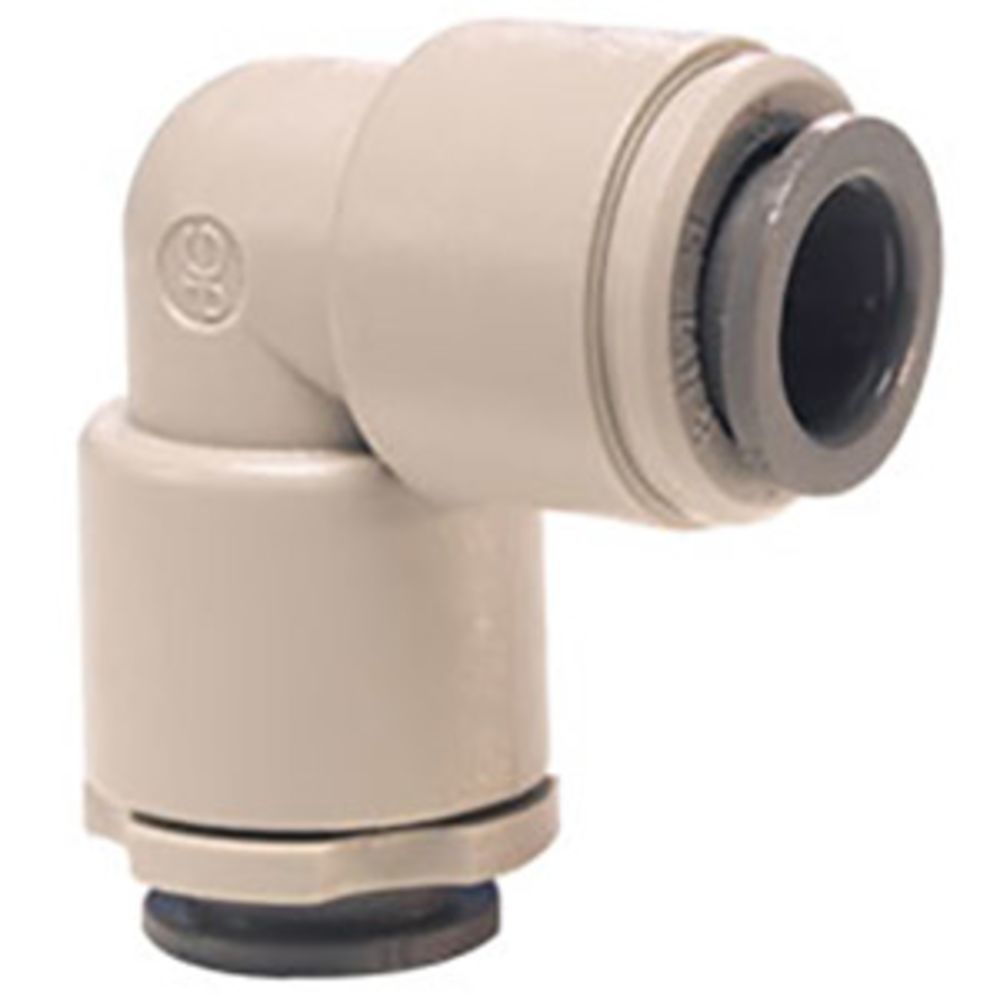

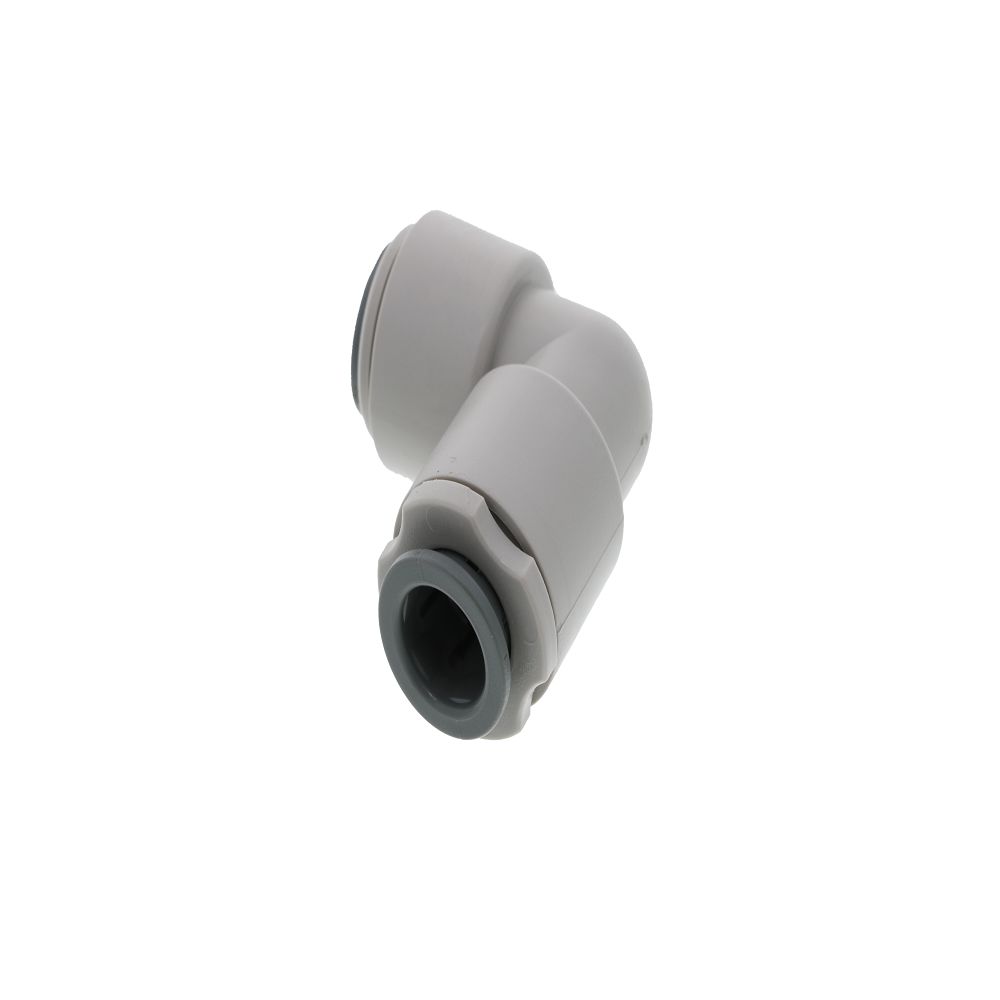

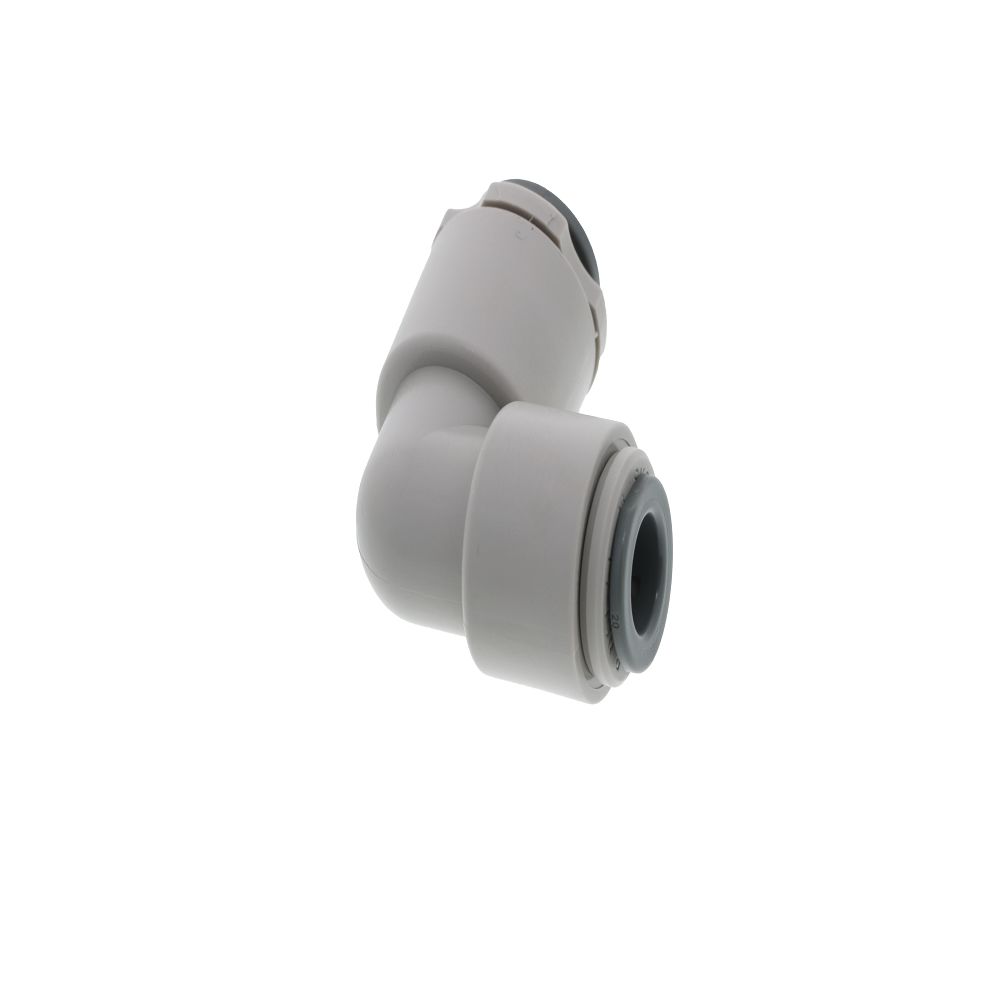

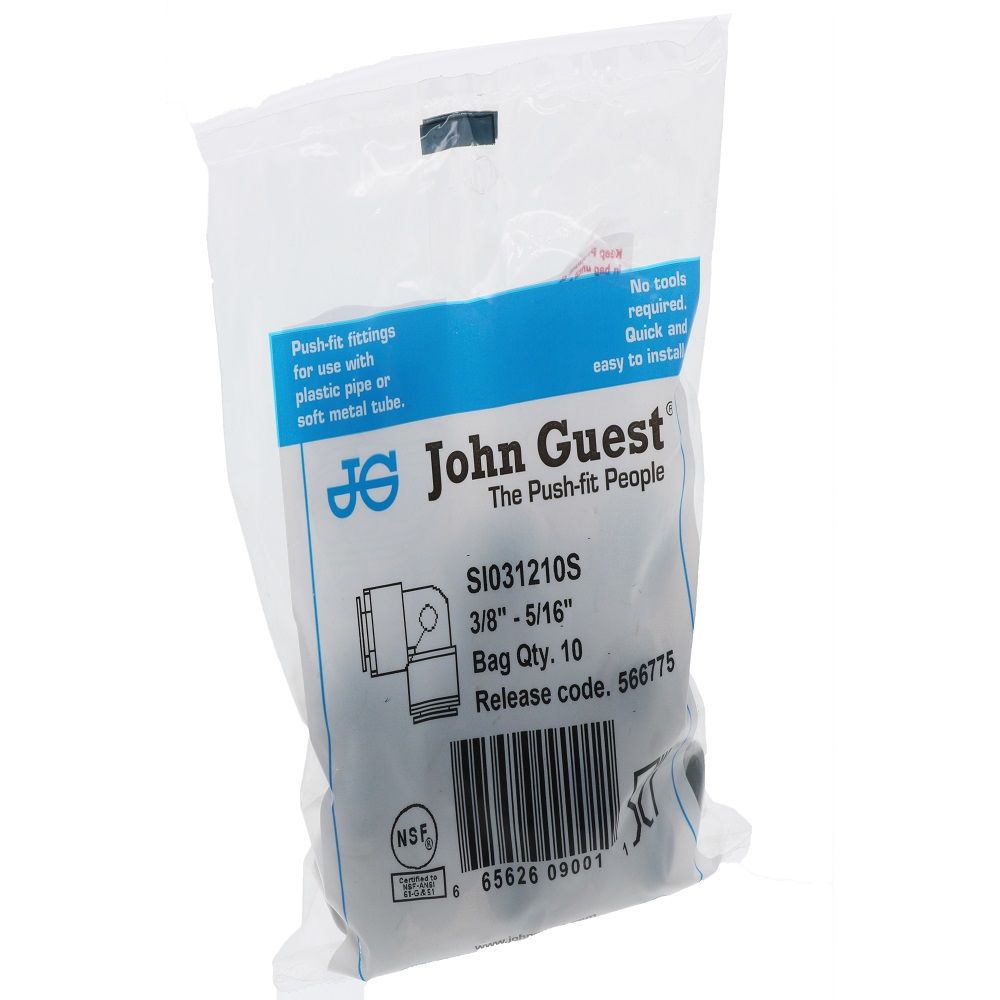

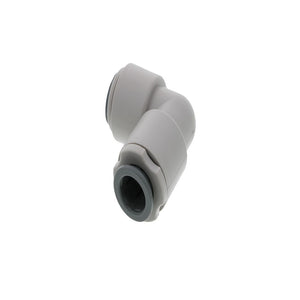

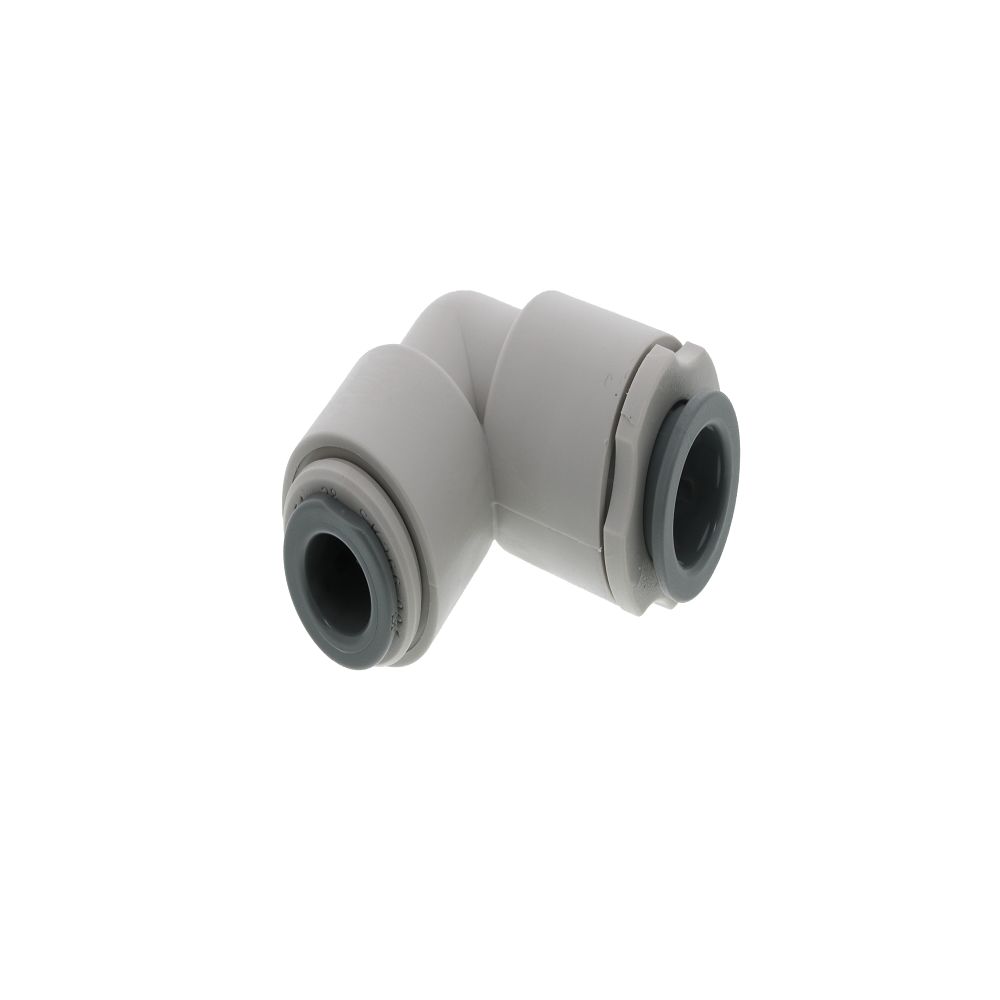

John Guest Superseal Elbow - 3/8 Superseal x 5/16

Part Number: SI031210S
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
Choose
Single
Bag of 10
Box of 150
The John Guest SuperSeal union elbow is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.

Features:
  • Used to connect stainless steel tubing
  • Acetal body with double Nitrile O-Rings
  • The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Made with lead free materials

Working pressure and temperature:
  • Max. 150 psi at 68° F
  • Max. 100 psi at 150° F
