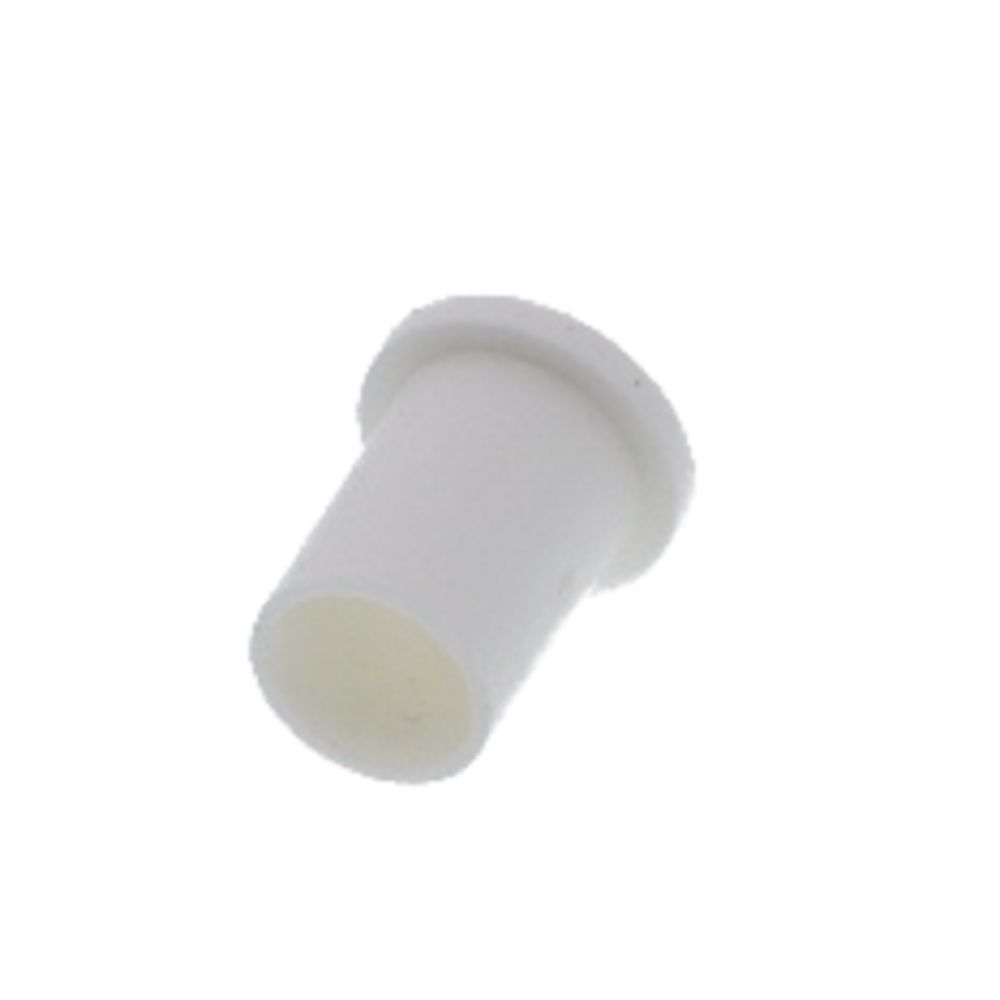

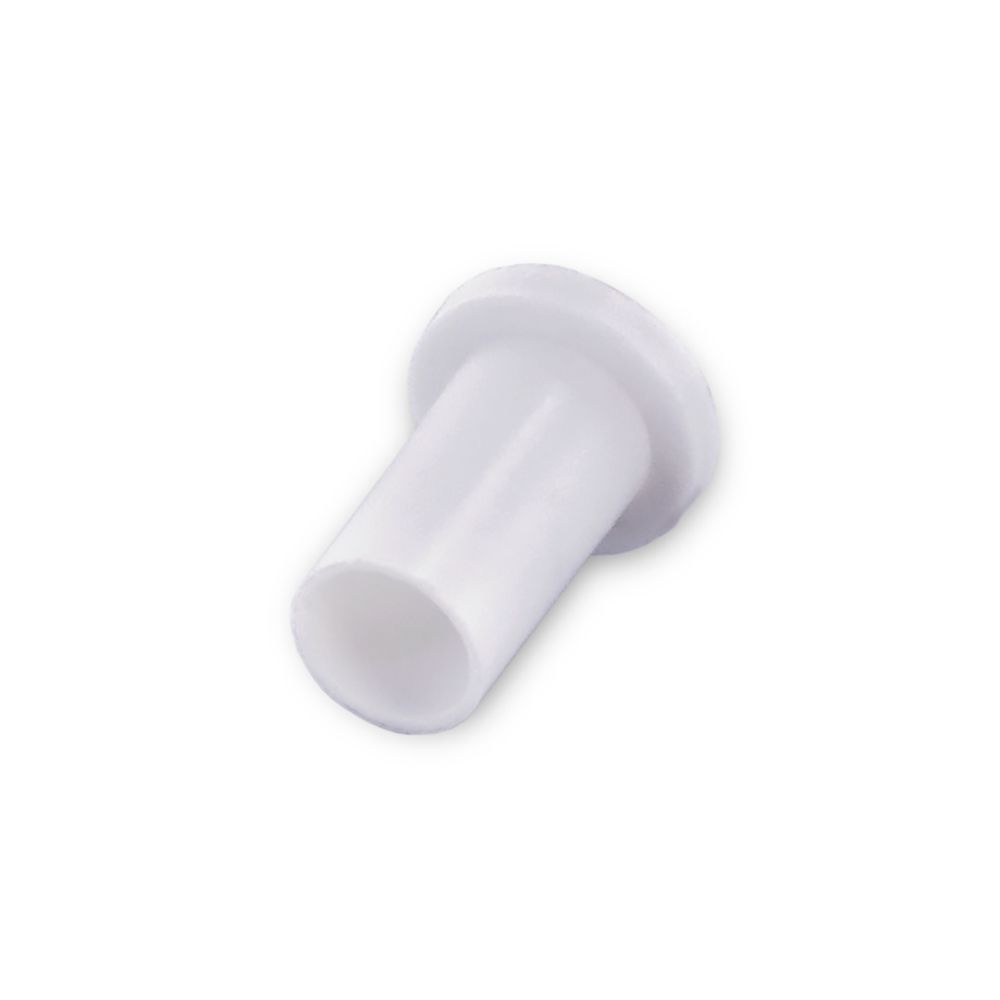

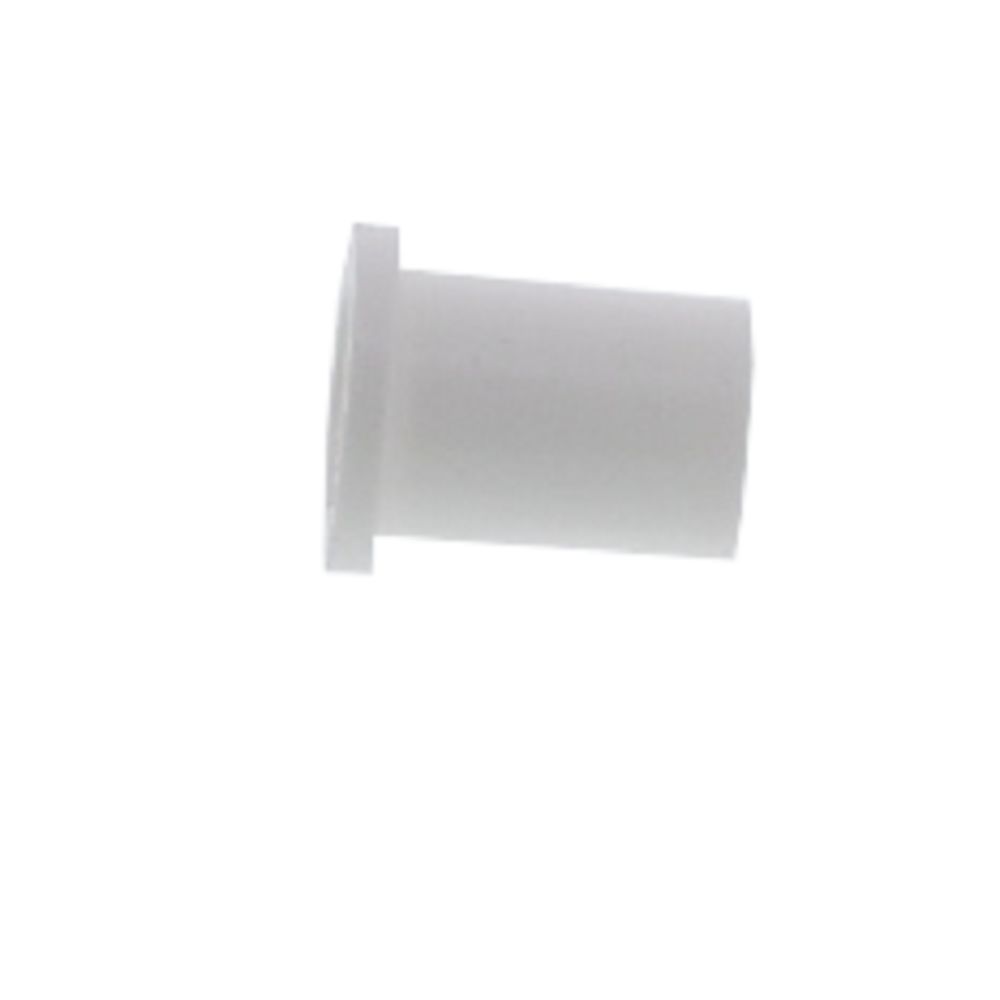

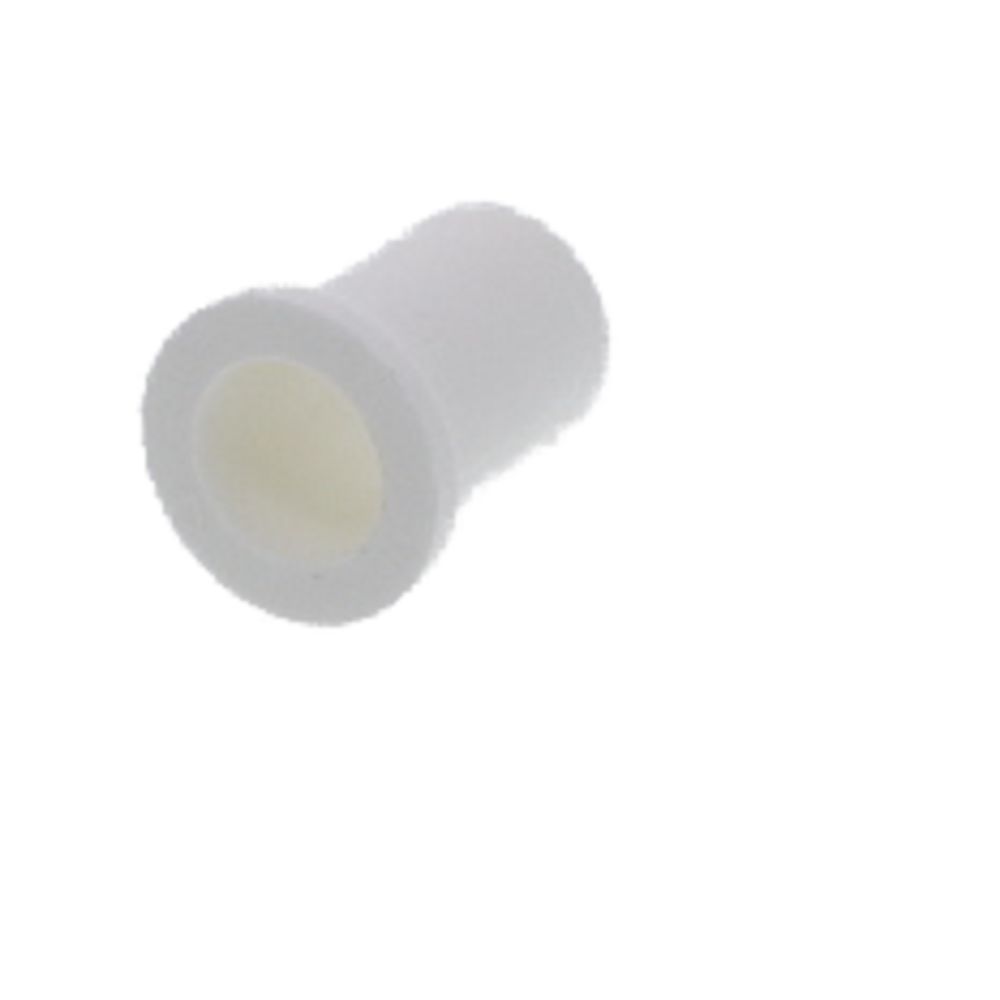

JACO P-P-8 Polypropylene Tube Insert For 1/2" OD Tubing

Part Number: P-P-8
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
Choose
Single
100-Pack
similar items
Jaco P-P-8 Polypropylene Insert Tube Fittings are used in soft or thin wall tubing's. The inserts will not wear a hole in the tubing and provides a grip to prevent sliding due to heat expansion. Polypropylene insert eliminates the need for special high temperature inserts.

Specifications:
  • Tubing Size: 1/2" OD
  • Inner Diameter of Fitting: 0.3"
  • Length Of Fitting: 9/16"
Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

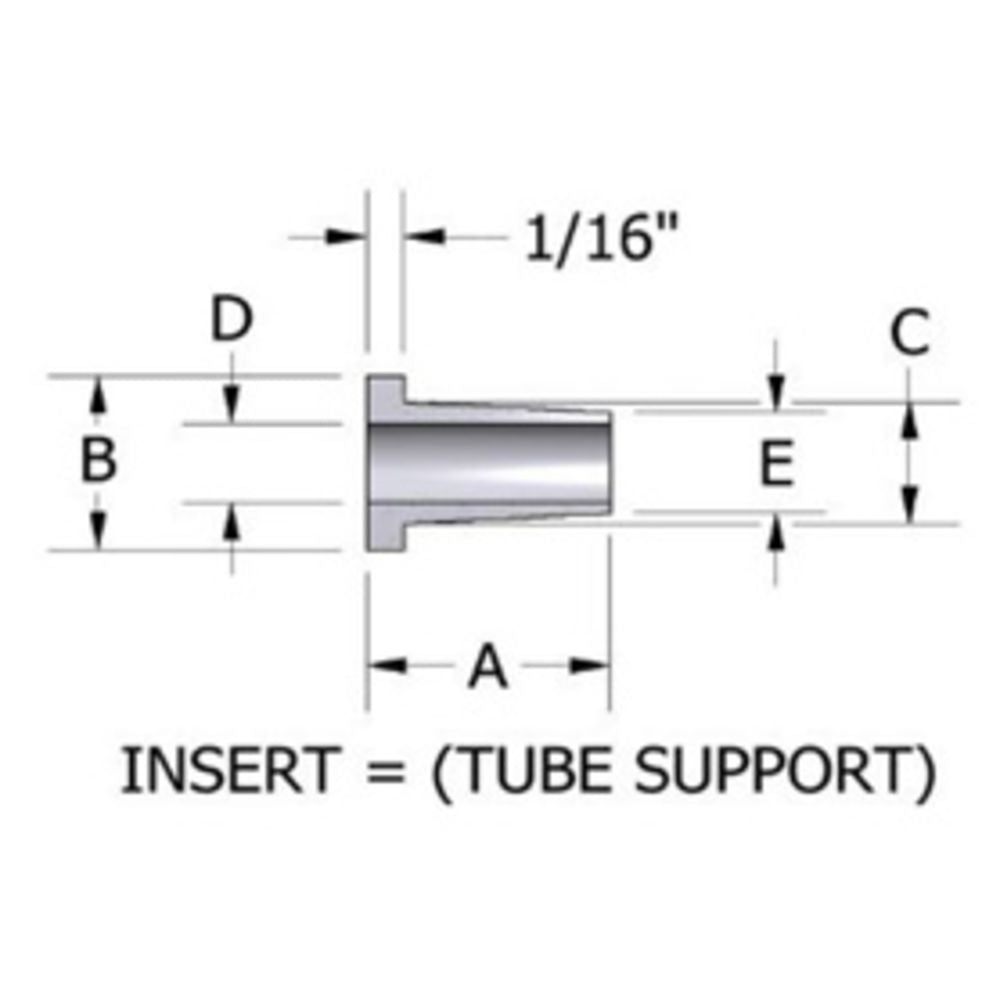

Jaco Part
Numbers 		Tube Size
(O.D.) 		A B C D E
 P-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
P-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
P-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
P-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches
