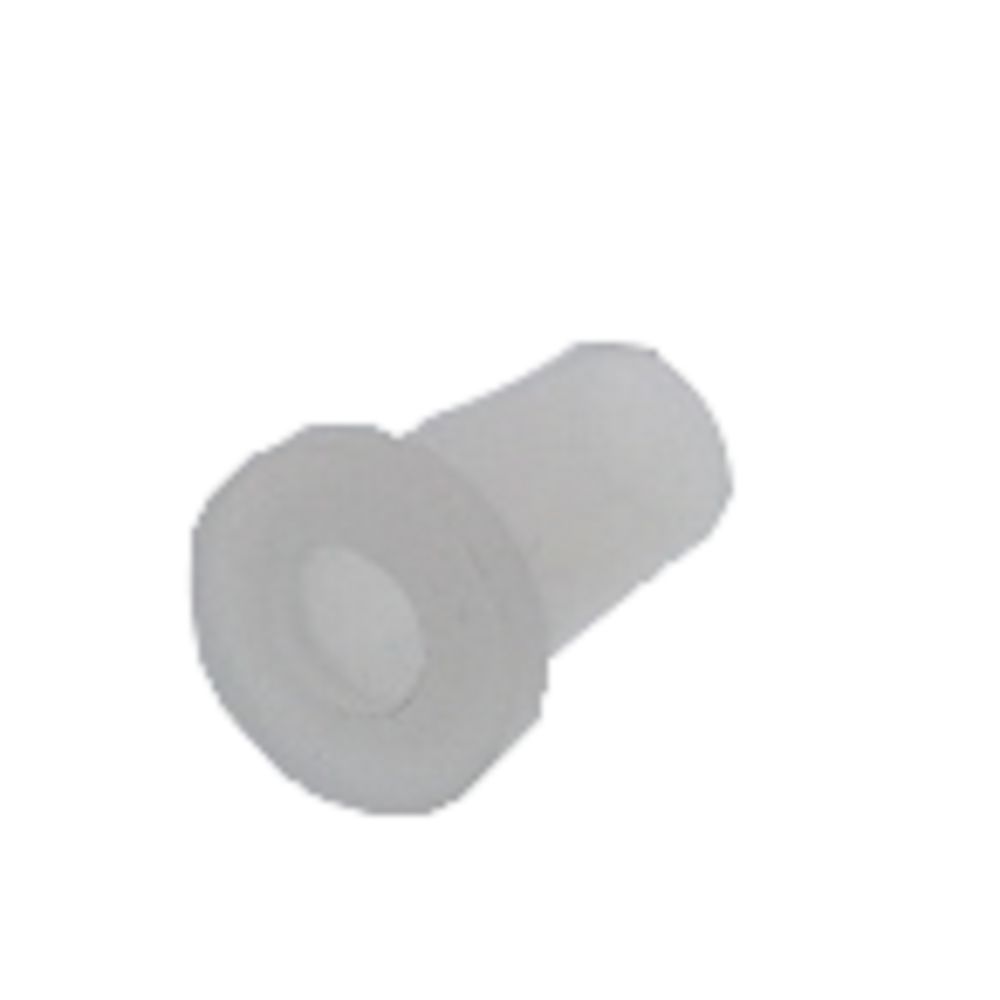

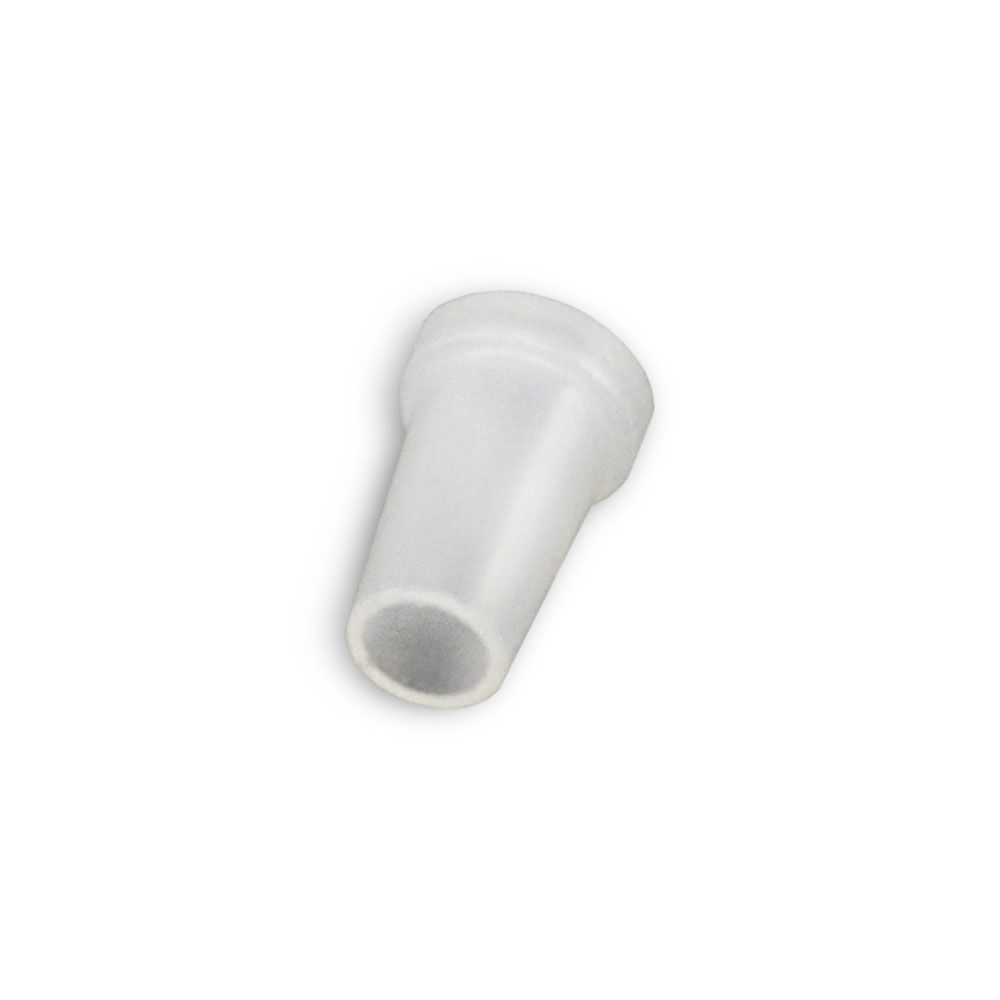

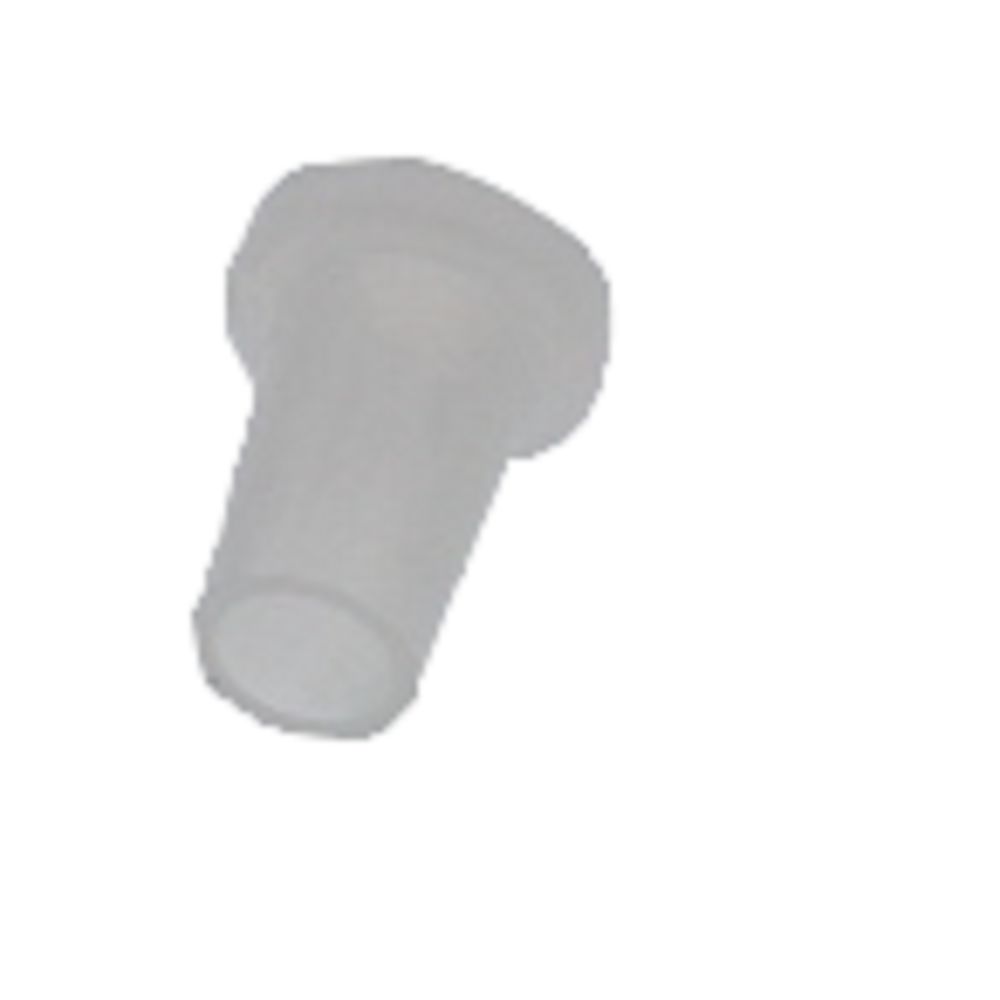

JACO N-P-5 Nylon Tube Insert 5/16" OD

Part Number: N-P-5
Product image 1
Product image 2
Product image 3
Product image 4
Your price:
Choose
Single
100-Pack
similar items
Jaco N-P-5 Nylon Tube Insert Fittings are used in soft or thin wall tubing. The inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Nylon inserts eliminate the need for special high temperature inserts.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Tubing Size: 5/16" OD
  • Inner Diameter of Fitting: 9/64"
  • Length of Fitting: 13/32"

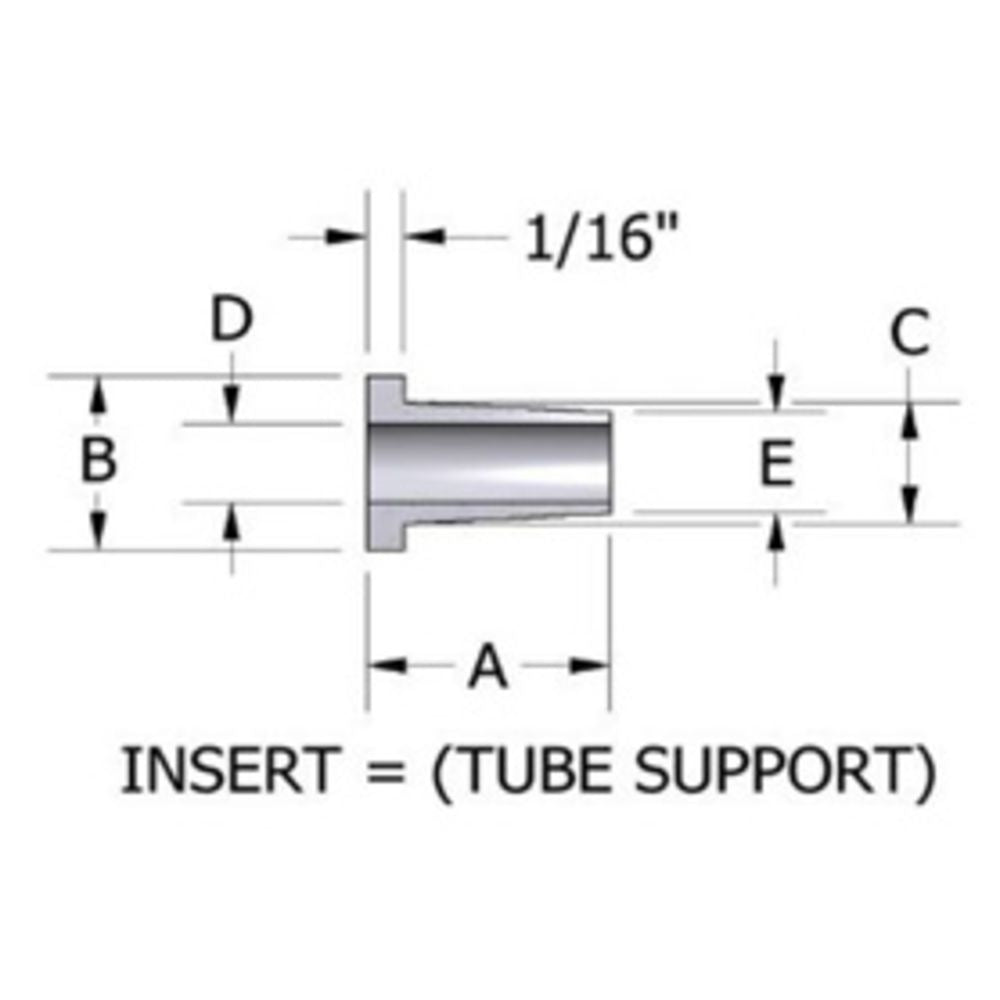

Jaco Part
Numbers 		Tube Size
(O.D.) 		A B C D E
N-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
 N-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
N-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
N-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches
