Home / Fittings / Compression Fittings / JACO 60-4-2-P-PG Polypropylene Male Branch Tee 1/4 OD Tube x 1/8 MPT

JACO Manufacturing Company

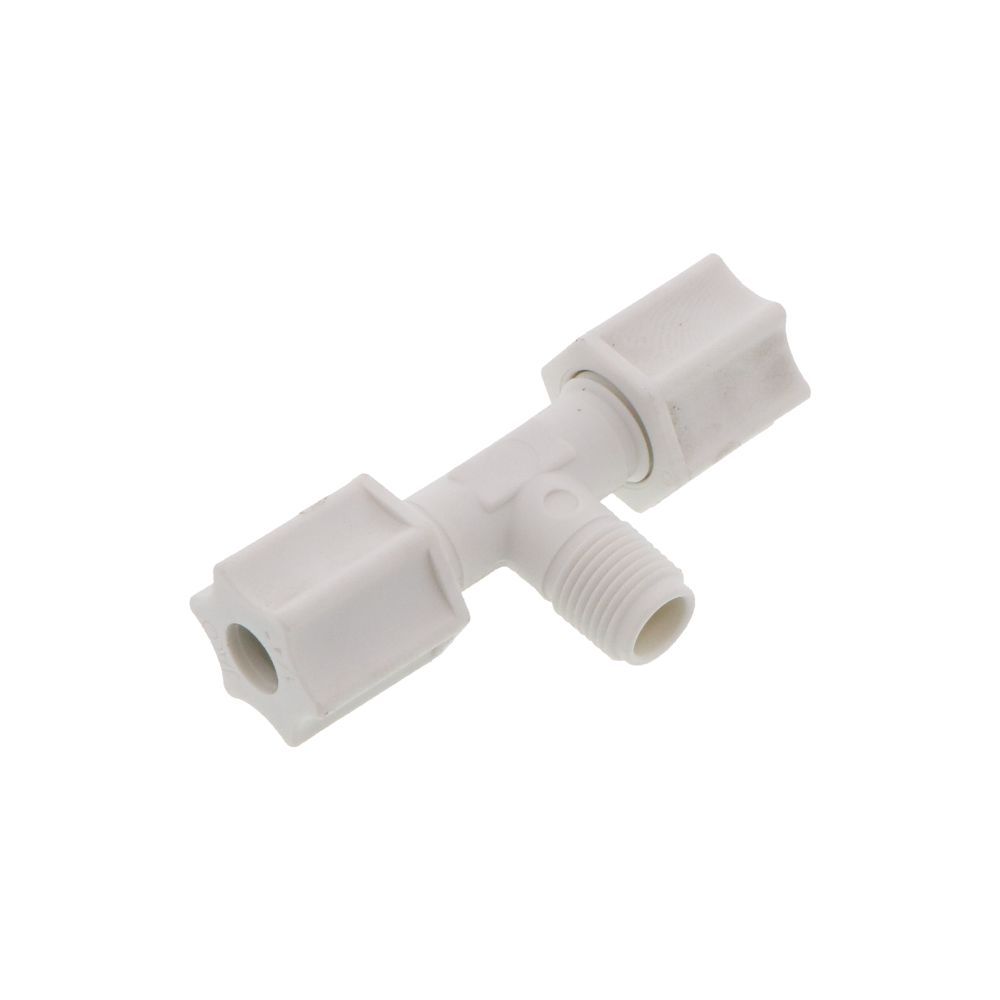

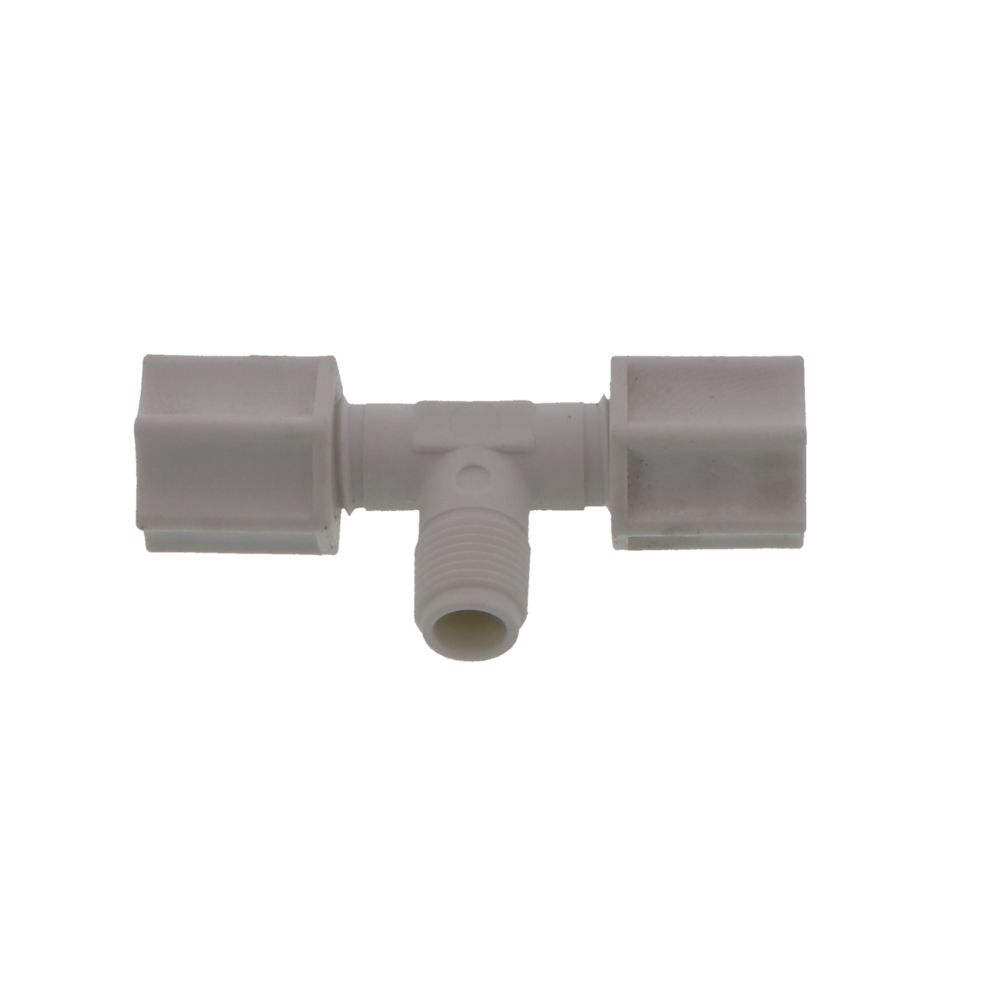

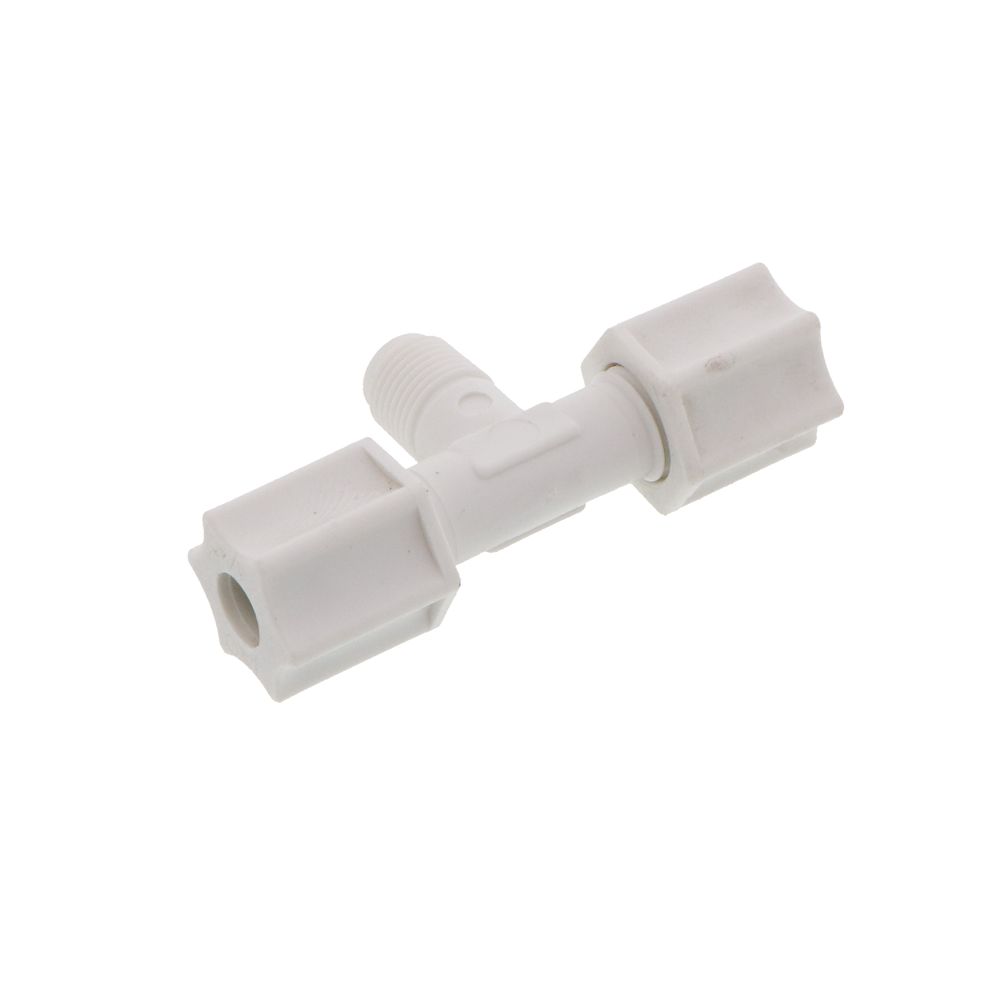

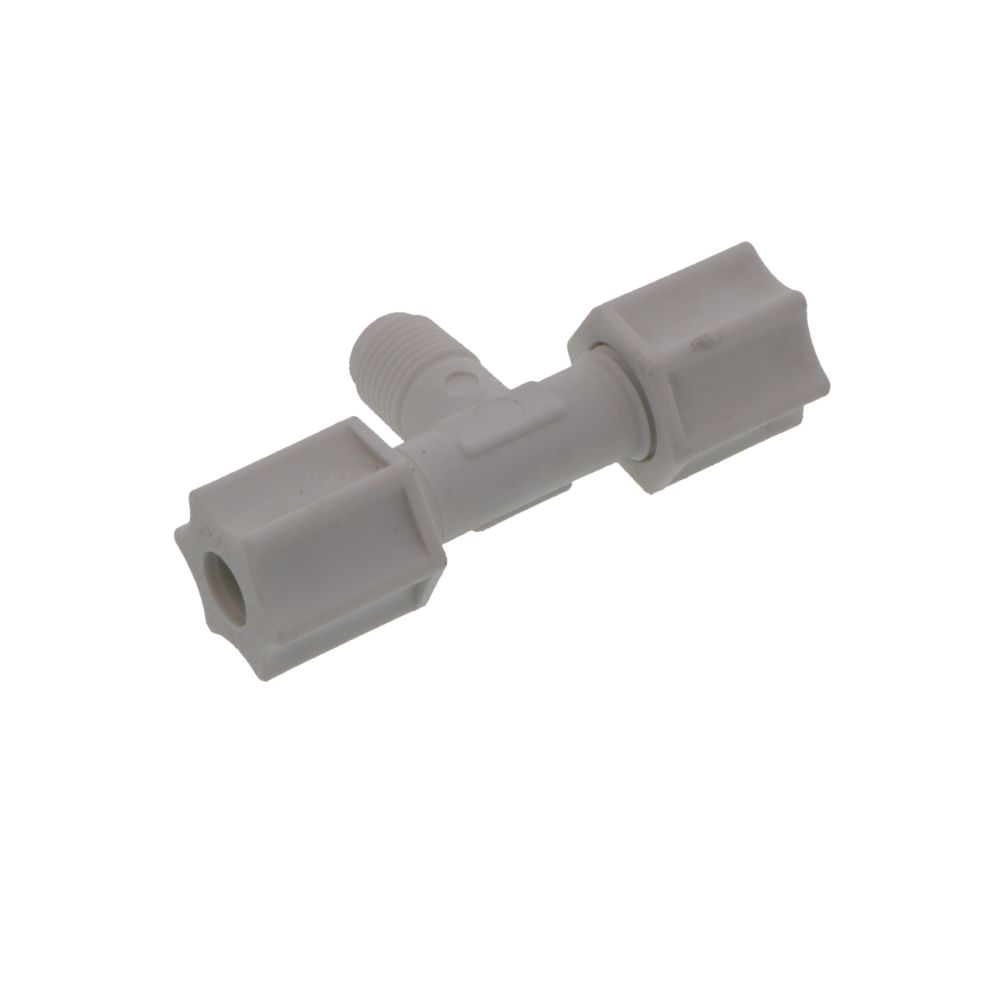

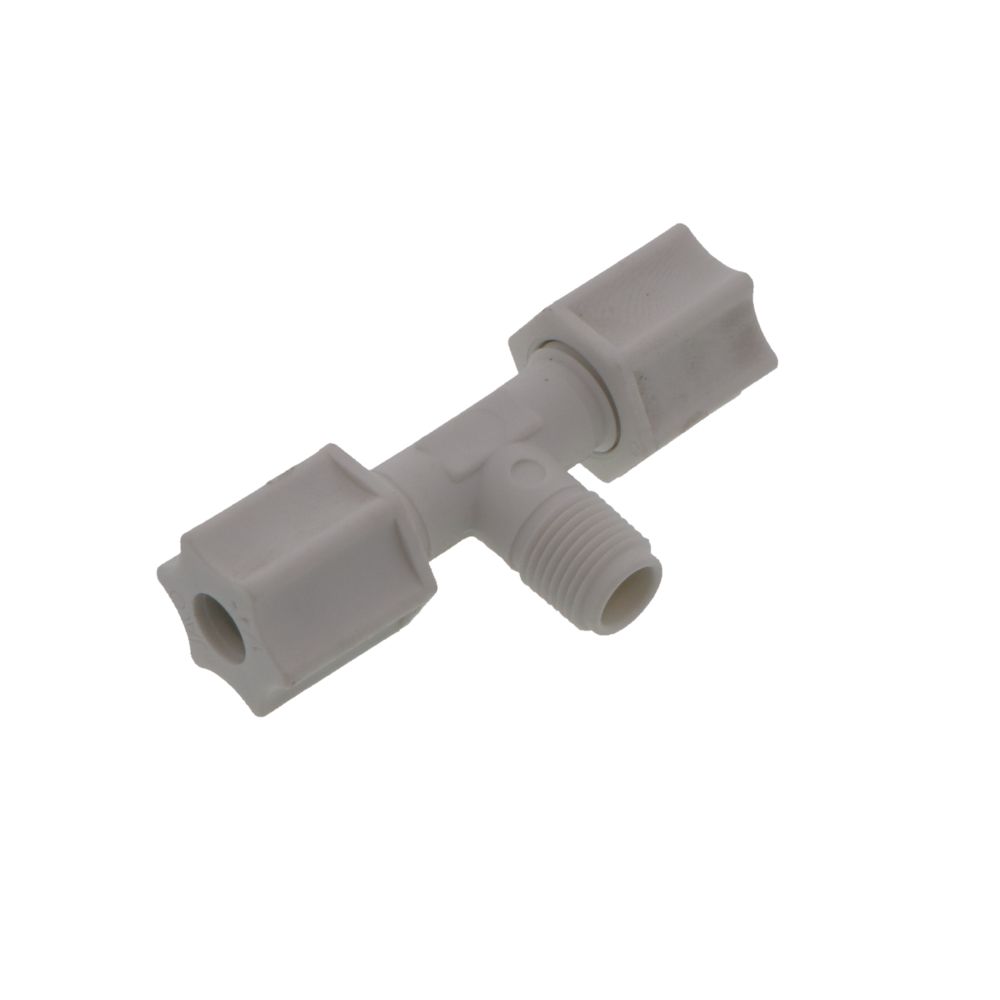

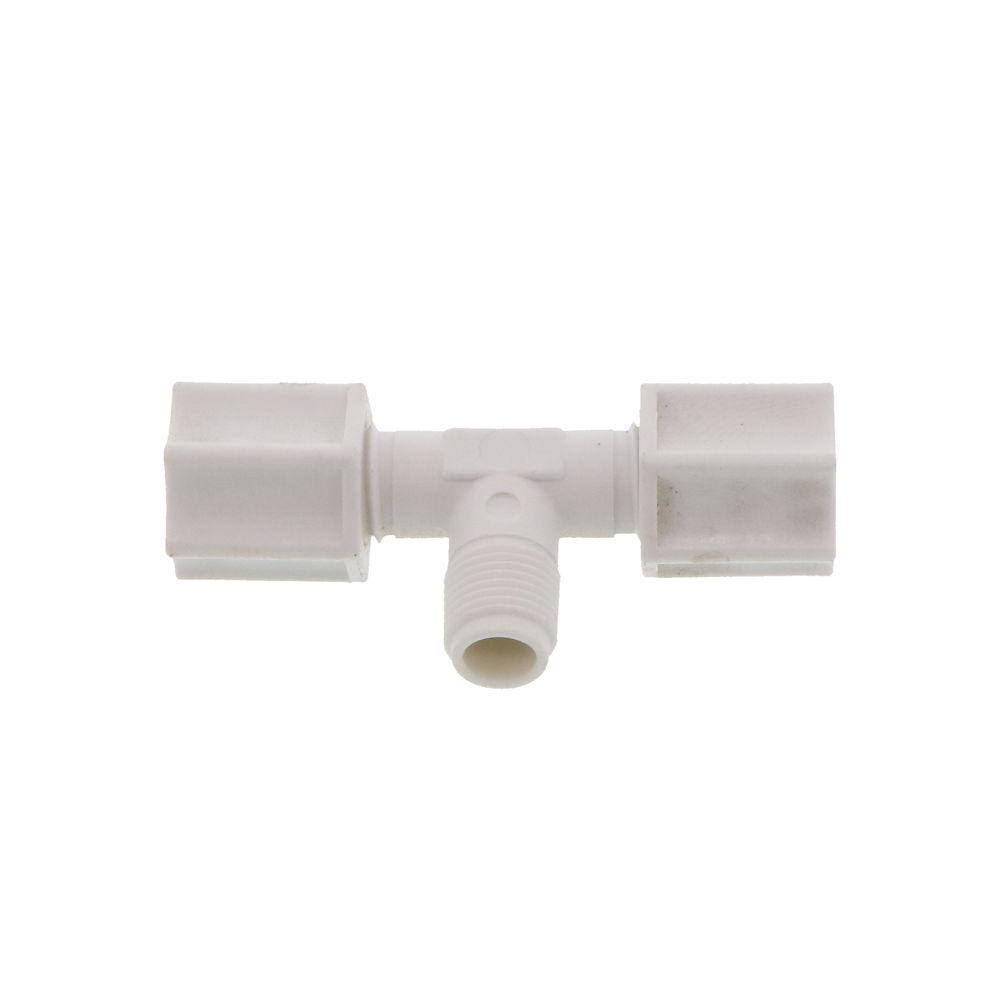

JACO 60-4-2-P-PG Polypropylene Male Branch Tee 1/4 OD Tube x 1/8 MPT

Part Number: 60-4-2-P-PG

in stock

MSRP: $1.79

Your price:

$1.58

Choose

Single

$1.58 each

200-Pack

$1.50 each

Quantity

JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Specifications:

Connections: 1/4" OD tube x 1/8" MPT
Fitting Material: polypropylene
Ferrule nut with plastic gripper for use with plastic tubing
Ferrule nut thread size: 7/16-20
Max Pressure: 220 psi
Temperature Range: -30° - 215° F
Color: opaque white

Advantages of JACO fittings over metal compression fittings:

Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
Low resistance to flow due to the smooth internal surface of the fittings.
Resistance to scale buildup.

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	1/8" MPT
Max Pressure (Psi)	220
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	-30
Mounting Options	Thread
Outlet Connection	1/8" MPT
Push-In Size	1/4" OD
Shape	Tee
Size	1/8"
Color / Finish	White
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	1/8" MPT
Max Pressure (Psi)	220
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	-30
Mounting Options	Thread
Outlet Connection	1/8" MPT
Push-In Size	1/4" OD
Shape	Tee
Size	1/8"
Color / Finish	White
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee

Connections: 1/4" OD tube x 1/8" MPT
Fitting Material: polypropylene
Ferrule nut with plastic gripper for use with plastic tubing
Ferrule nut thread size: 7/16-20
Max Pressure: 220 psi
Temperature Range: -30° - 215° F
Color: opaque white

Advantages of JACO fittings over metal compression fittings:

Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
Low resistance to flow due to the smooth internal surface of the fittings.
Resistance to scale buildup.
