Home / Fittings / Compression Fittings / JACO 15-5-P-O Polypropylene Union Connector 5/16 OD Tube x 5/16 OD Tube
JACO Manufacturing Company

JACO 15-5-P-O Polypropylene Union Connector 5/16 OD Tube x 5/16 OD Tube

Part Number: 15-5-P-O

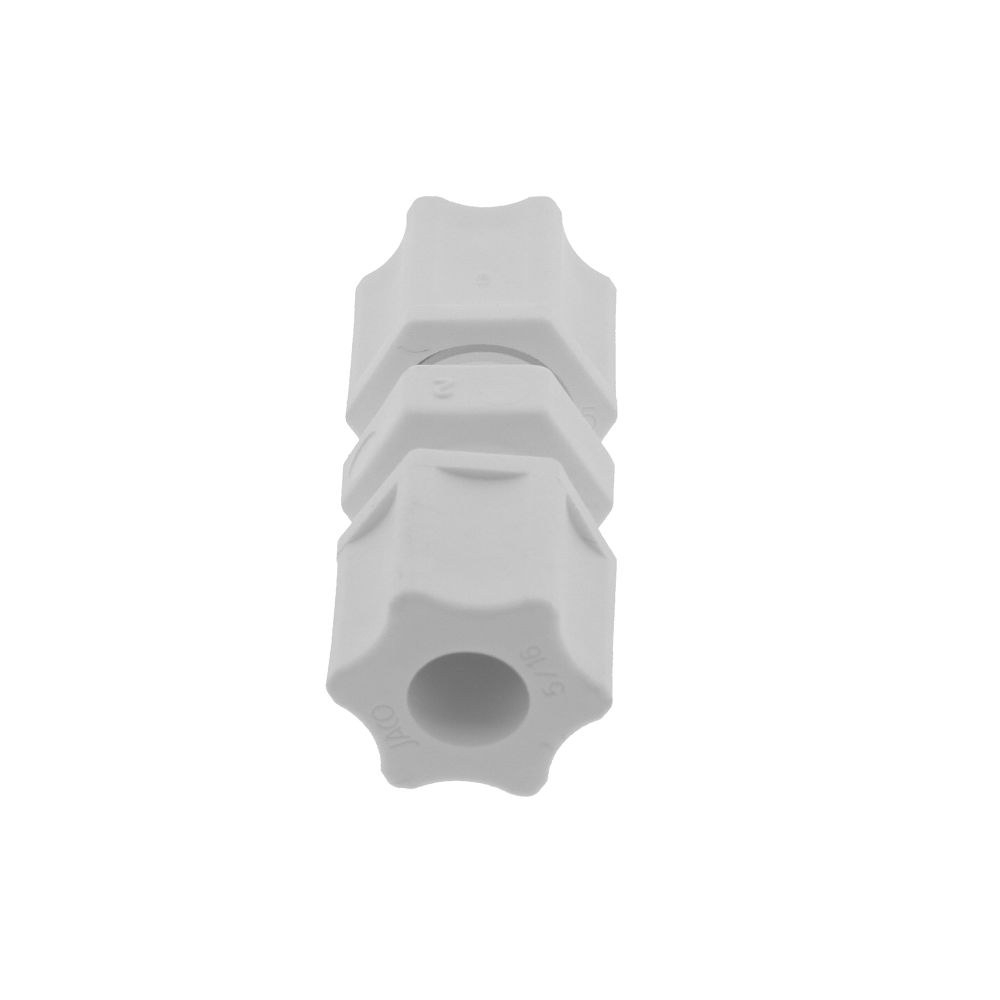

Product image 1

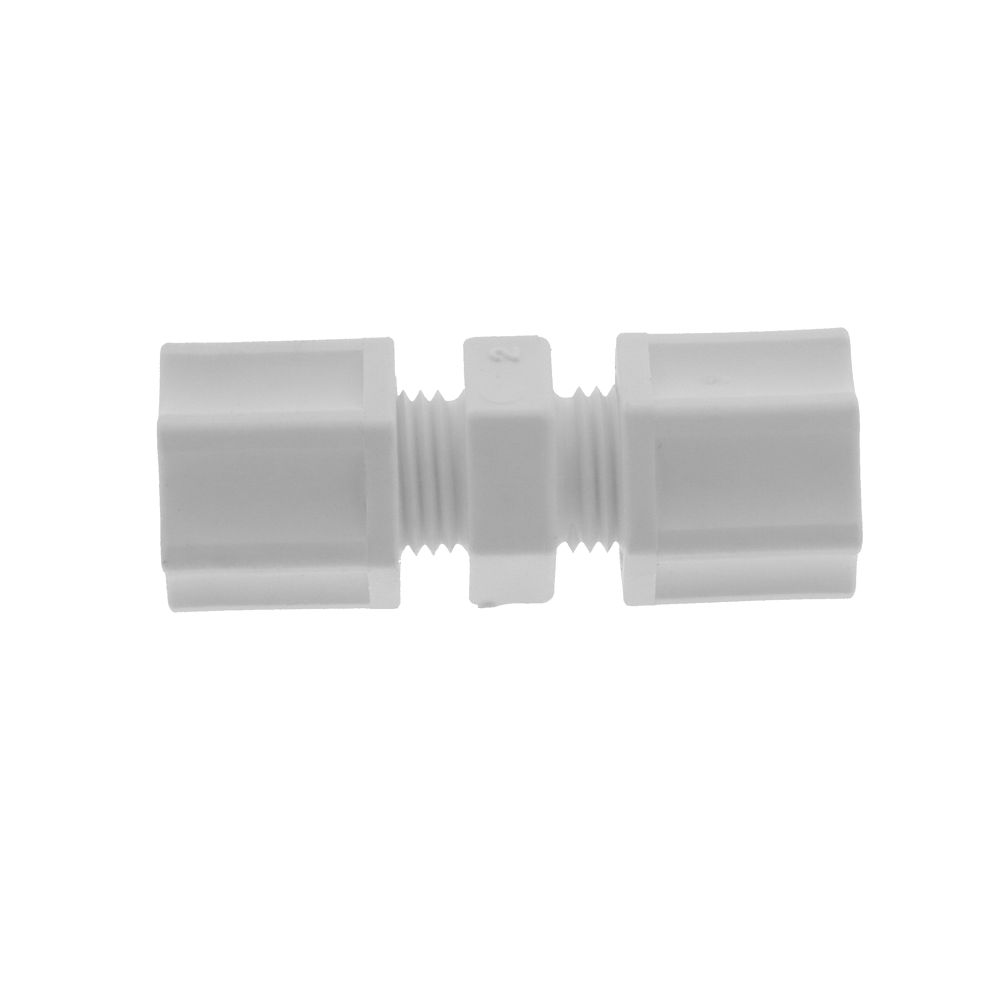

Product image 2

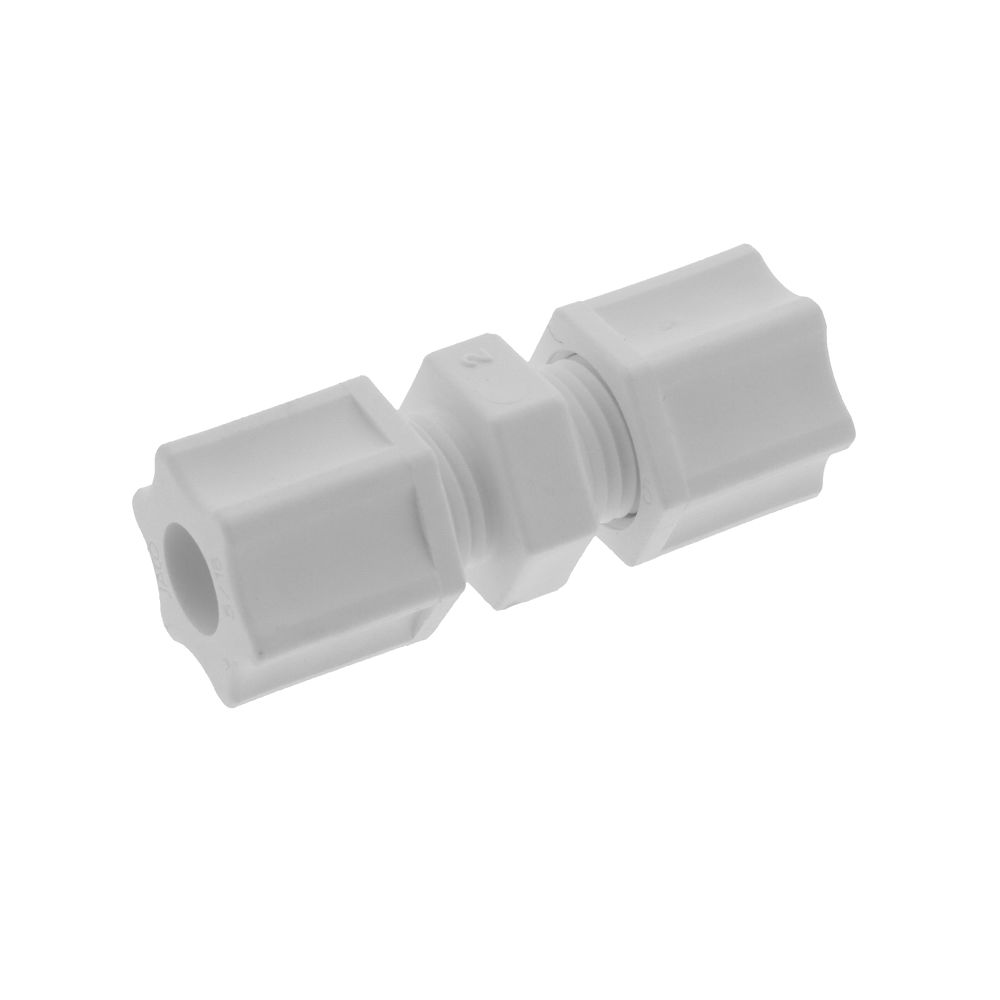

Product image 3
Your price:
Choose
Single
200-Pack
JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 5/16" OD tube x 5/16" OD Tube
  • Fitting Material: polypropylene
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 1/2-20
  • Max Pressure: 50 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white
