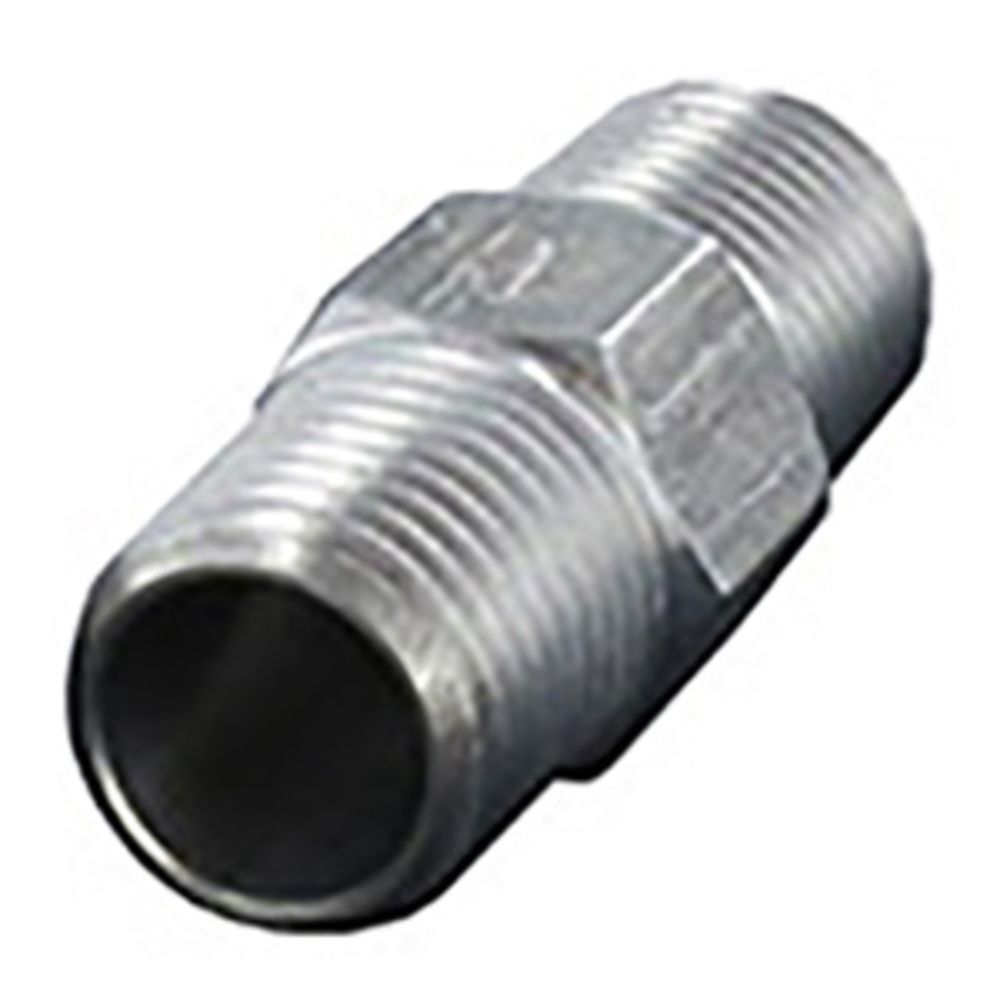

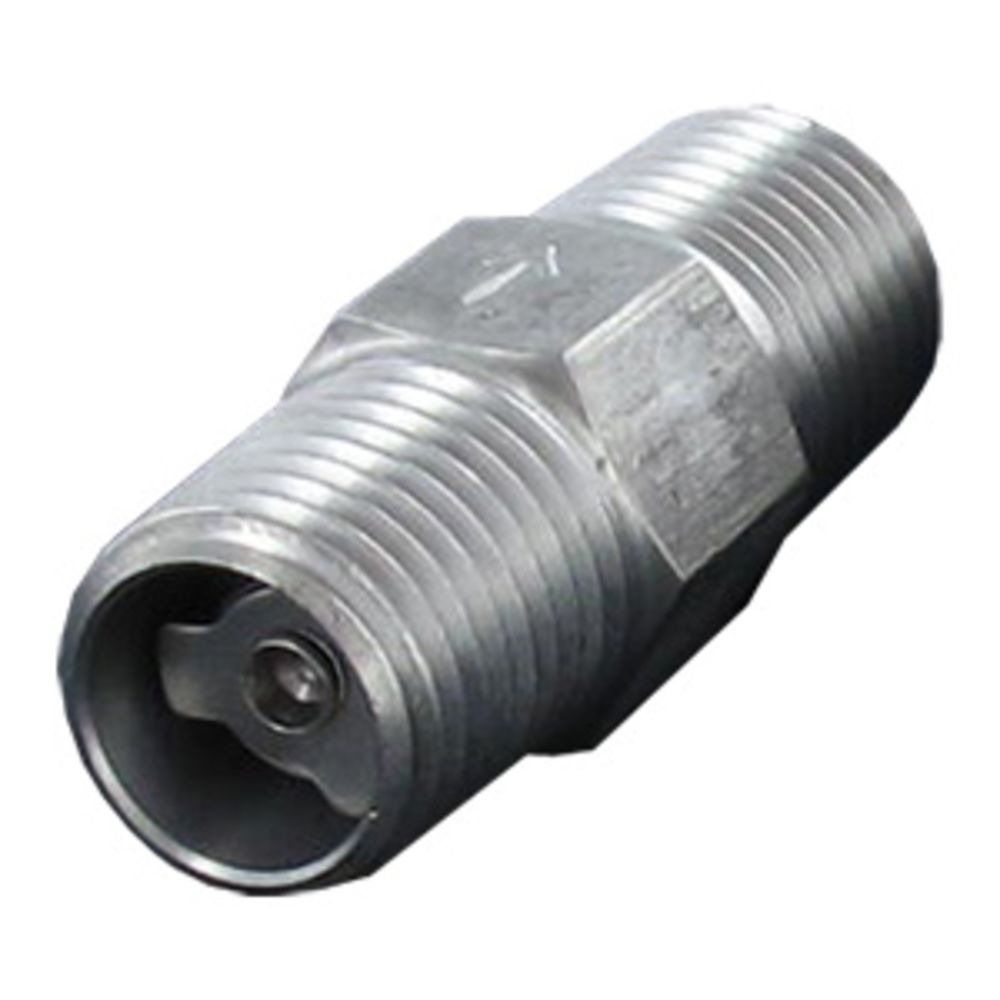

Inline Stainless Steel Check Valve - 1/8" mpt Inlet x 1/8 mpt Outlet

2 Reviews

Part Number: CV18S-MM

Alt. Part Number: CV14SS-MxM

in stock

Your price:

$10.72

Choose

Single

$10.72 each

Bag of 10

$9.22 each

Quantity

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

Material: Stainless Steel
Connection: 1/8" MPT Inlet x 1/8" MPT Outlet
Dimensions: 1" x 7/16" Hex
Cracking Pressure: 1.0 psi +/- 1/2 psi
Flow Rates: .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
O-Rings: Buna-N FDA grade

Product Details
Body Material	Stainless Steel FKM
Max Pressure (Psi)	125
Max Temp (°F)	240
Flow Rate	.35 GPM @ 5 psi
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	1" x 7/16" Hex
Product Weight (lbs)	0.0250

Product Details
Body Material	Stainless Steel FKM
Max Pressure (Psi)	125
Max Temp (°F)	240
Flow Rate	.35 GPM @ 5 psi
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	1" x 7/16" Hex
Product Weight (lbs)	0.2480

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

Material: Stainless Steel
Connection: 1/8" MPT Inlet x 1/8" MPT Outlet
Dimensions: 1" x 7/16" Hex
Cracking Pressure: 1.0 psi +/- 1/2 psi
Flow Rates: .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
O-Rings: Buna-N FDA grade
