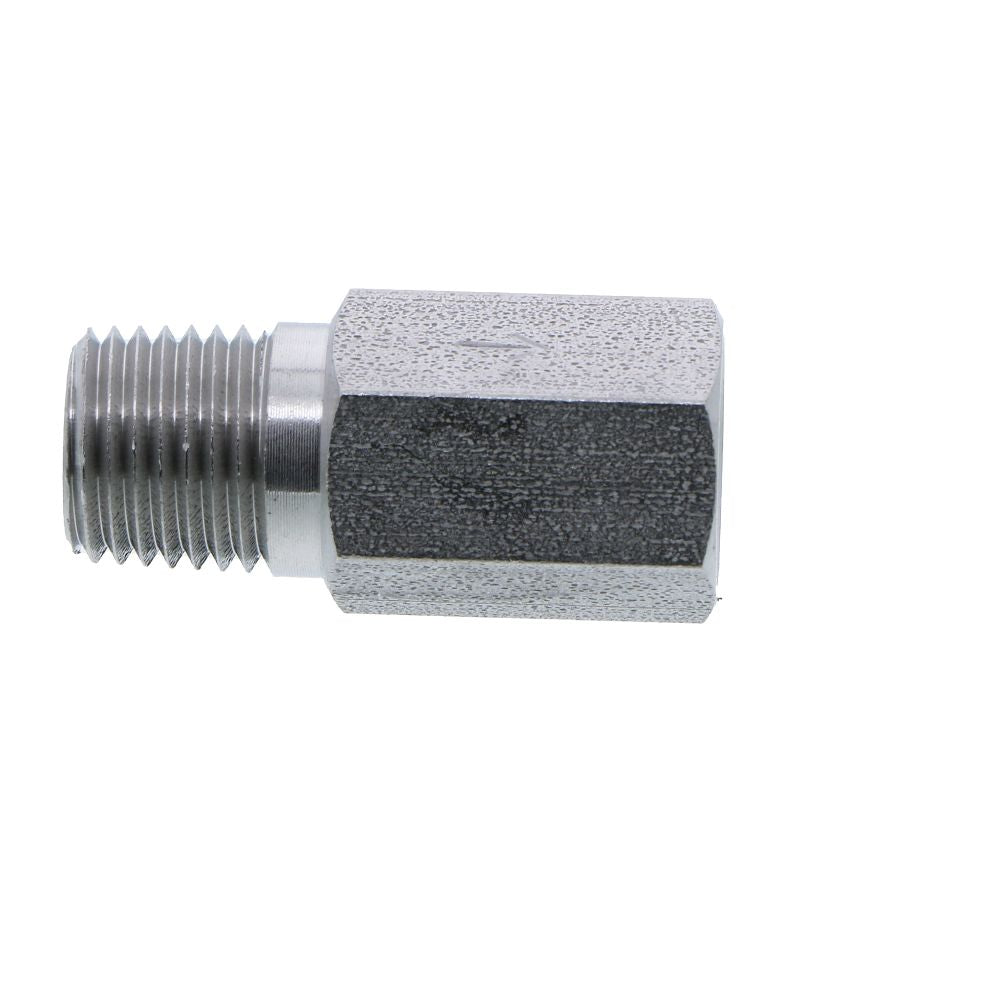

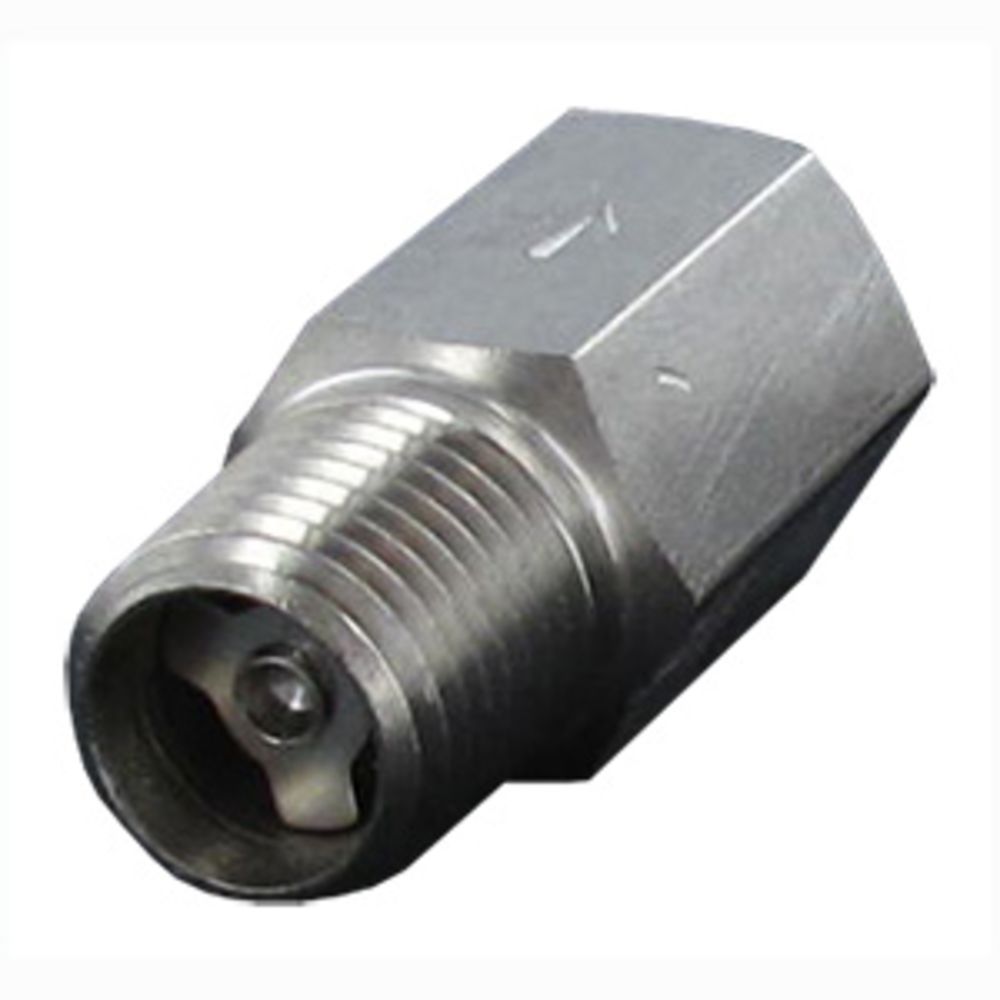

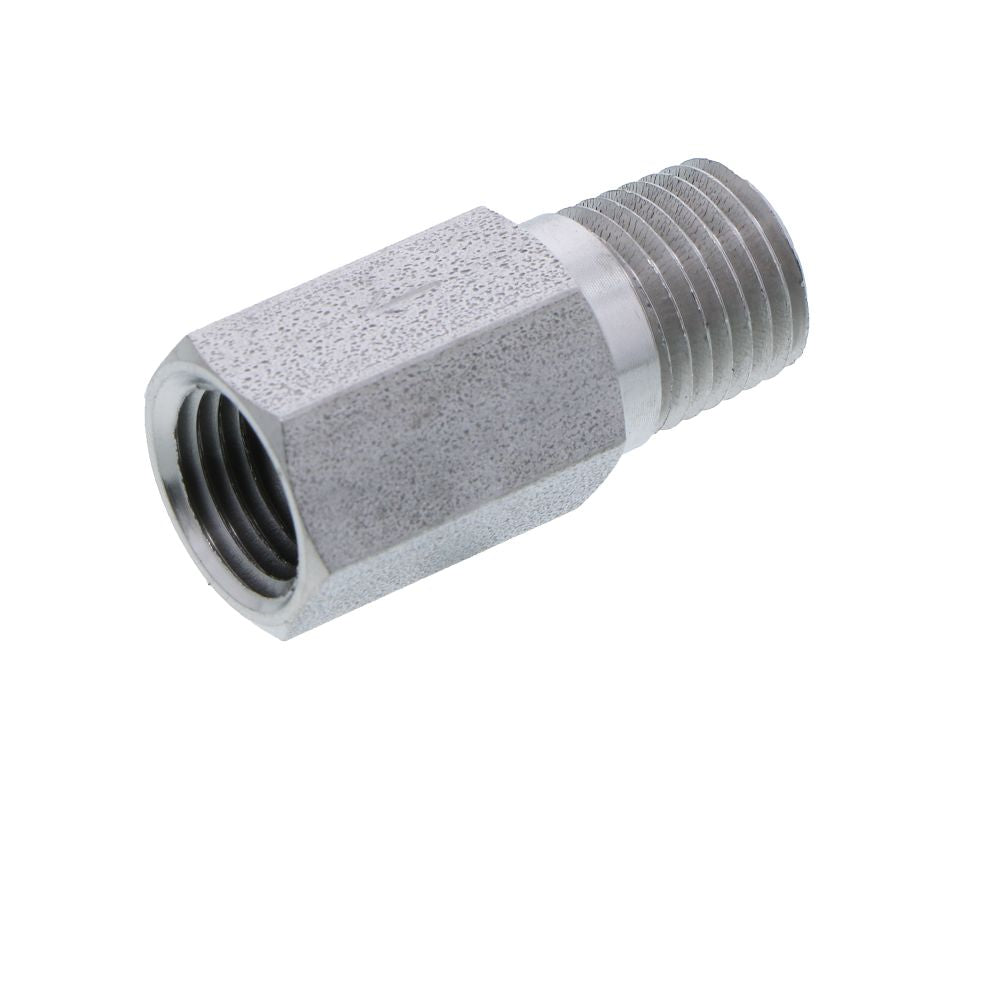

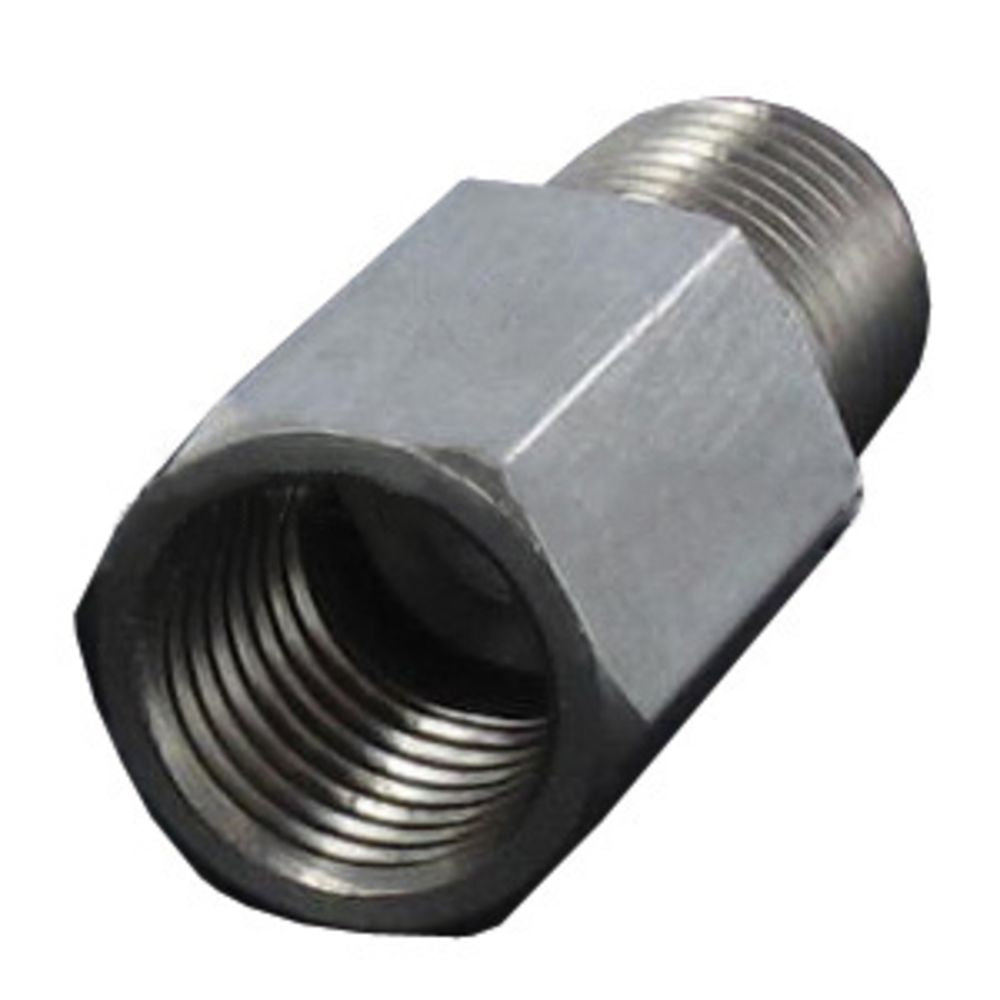

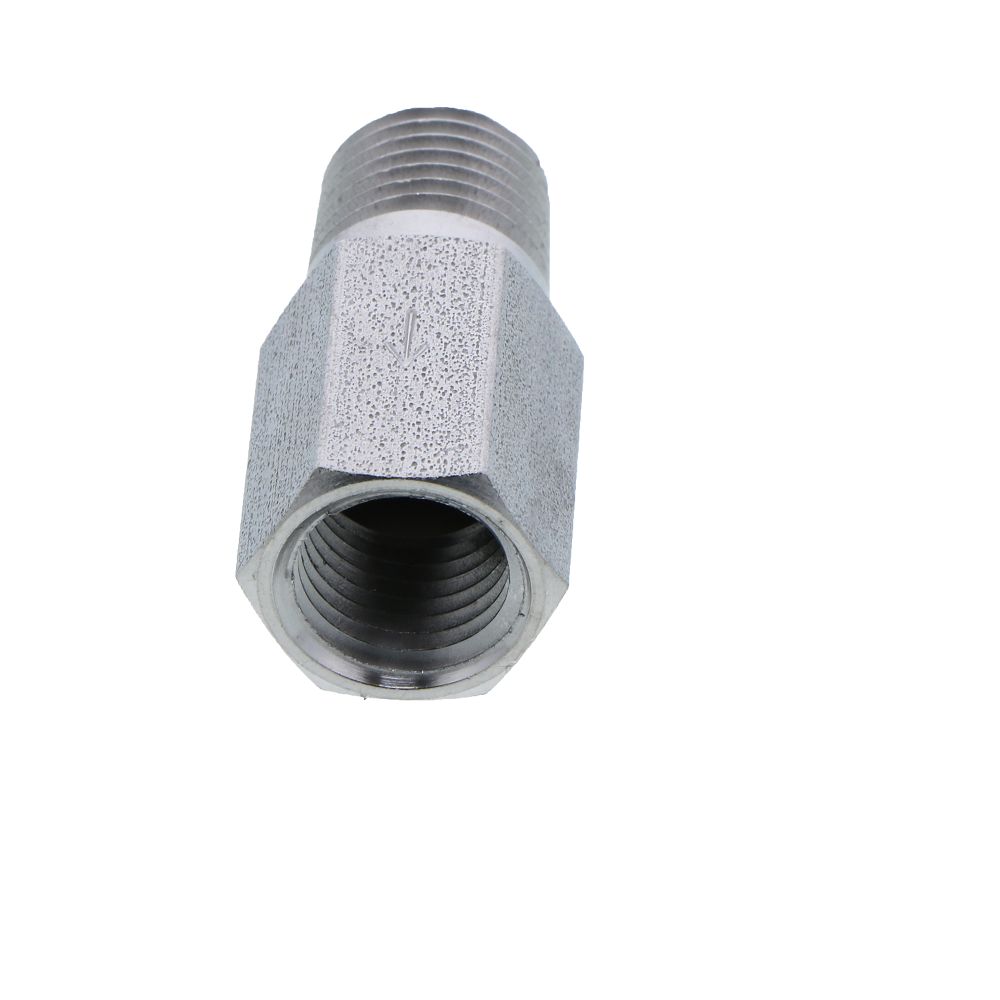

Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

Part Number: CV14SV-MF

Alt. Part Number: CV14SF-V, CV14SF-MxF

in stock

Your price:

$14.66

Choose

Single

$14.66 each

Bag of 10

$12.61 each

Quantity

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

Material: Stainless Steel
Connection: 1/4" MPT Inlet x 1/4" FPT Outlet
Dimensions: 1.41" x 11/16" Hex
Cracking Pressure: 1.0 psi +/- 1/2 psi
Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
O-Rings: Viton, FDA grade

Product Details
Body Material	Stainless Steel
Inlet Connection	1/4" FPT 1/4" MPT
Max Pressure (Psi)	125
Max Temp (°F)	390
O-Rings	Viton
Outlet Connection	1/4" FPT,1/4" MPT
Size	1/4"
Connection Type	Female (FPT) Male (MPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	10 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.1

Product Details
Body Material	Stainless Steel
Inlet Connection	1/4" FPT 1/4" MPT
Max Pressure (Psi)	125
Max Temp (°F)	390
O-Rings	Viton
Outlet Connection	1/4" FPT,1/4" MPT
Size	1/4"
Connection Type	Female (FPT) Male (MPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.7

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

Material: Stainless Steel
Connection: 1/4" MPT Inlet x 1/4" FPT Outlet
Dimensions: 1.41" x 11/16" Hex
Cracking Pressure: 1.0 psi +/- 1/2 psi
Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
O-Rings: Viton, FDA grade
