Home / Pumps & Motors / Rotary Vane Pumps & Motors / Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 240 gph 1/2" NPT

Fluid-o-Tech

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 240 gph 1/2" NPT

Part Number: MT1100DIYW-NL/AB

out of stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

MSRP: $1210.00

Your price:

$895.40

Quantity

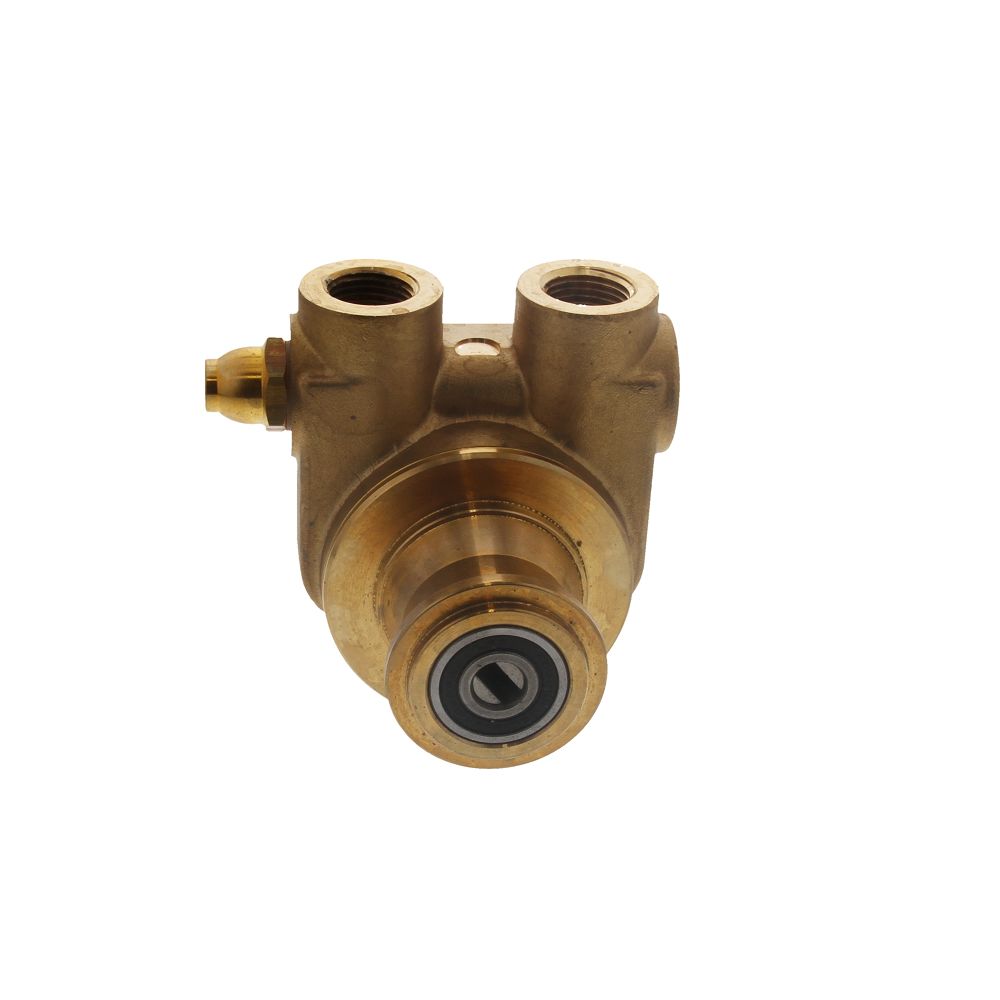

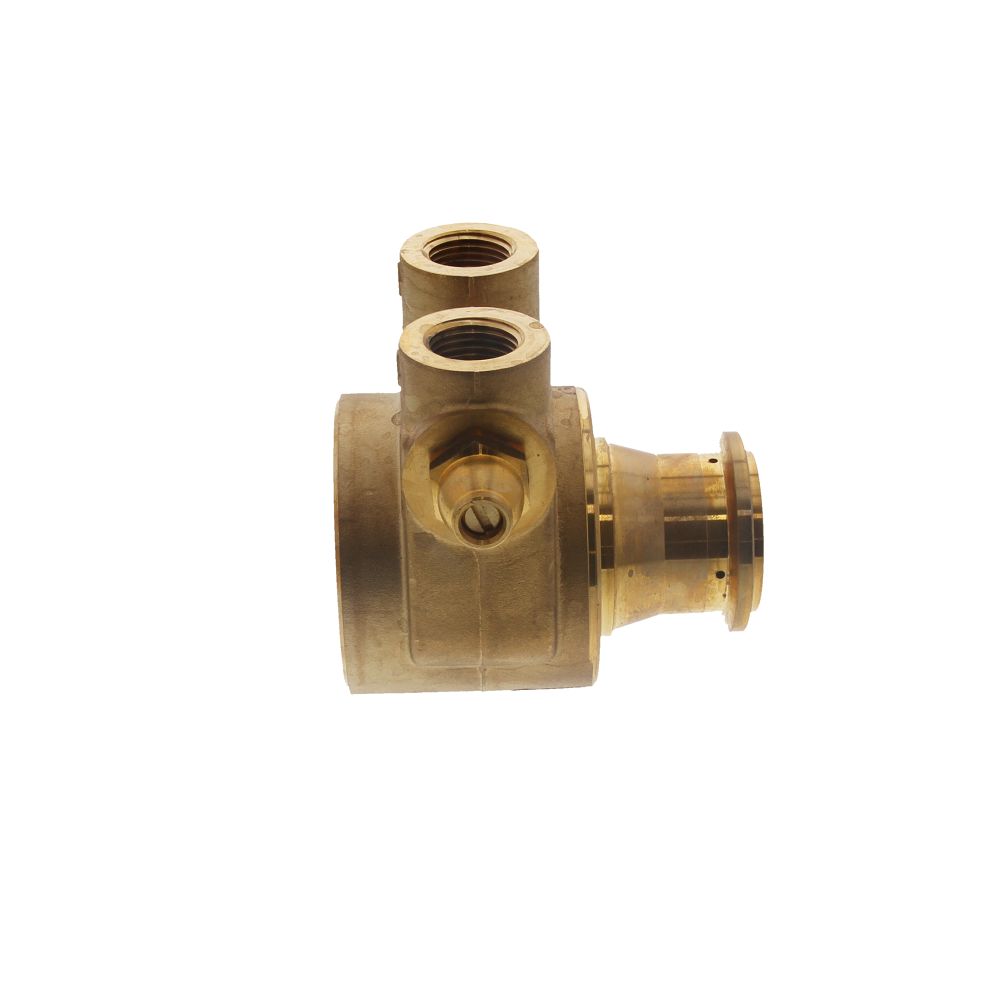

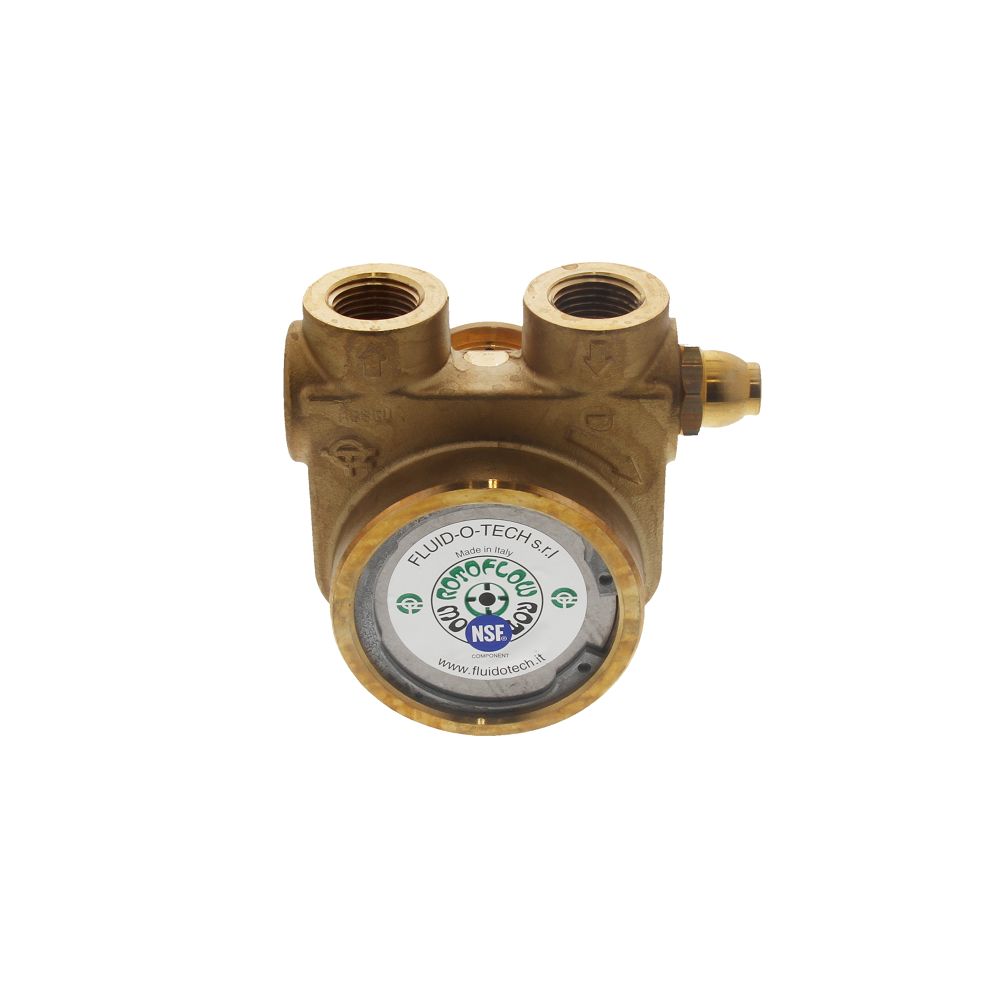

Fluid-o-Tech PA0801ANDFN5032 is a 240 gallon per hour rotary vane pump. The PA0801ANDFN5032 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.

Specifications:

Flow rate: 240 gallons per hour
Material: lead-free brass housing, graphite chamber
1/2" NPT ports
Clamp Mount: 4.2 lbs. (1.9kg)
Max Static Pressure: 290 PSI
Max Operating Temperature: 158°F
Max Speed: 1725 RPM

Applications:

Beverage Vending Machines
Booster Systems
Cooling Systems
Espresso Coffee Machines
Post Mix Drink Dispensers
Water Dispensers
Water Treatment

Product Details
Body Material	Brass
Elastomer Type	Buna-N
Inlet Connection	1/2" MPT
Max Outlet Pressure	230 PSI
Mounting Options	Clamp On
Nominal Speed - Rpm	1450
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	240
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	4.35

Flow rate: 240 gallons per hour
Material: lead-free brass housing, graphite chamber
1/2" NPT ports
Clamp Mount: 4.2 lbs. (1.9kg)
Max Static Pressure: 290 PSI
Max Operating Temperature: 158°F
Max Speed: 1725 RPM

Applications:

Beverage Vending Machines
Booster Systems
Cooling Systems
Espresso Coffee Machines
Post Mix Drink Dispensers
Water Dispensers
Water Treatment
