Home / Plumbing / Water Supply Adapters / Faucet Supply Adapter - w/ Inline Ball Valve 1/4" QC

G.A. Murdock

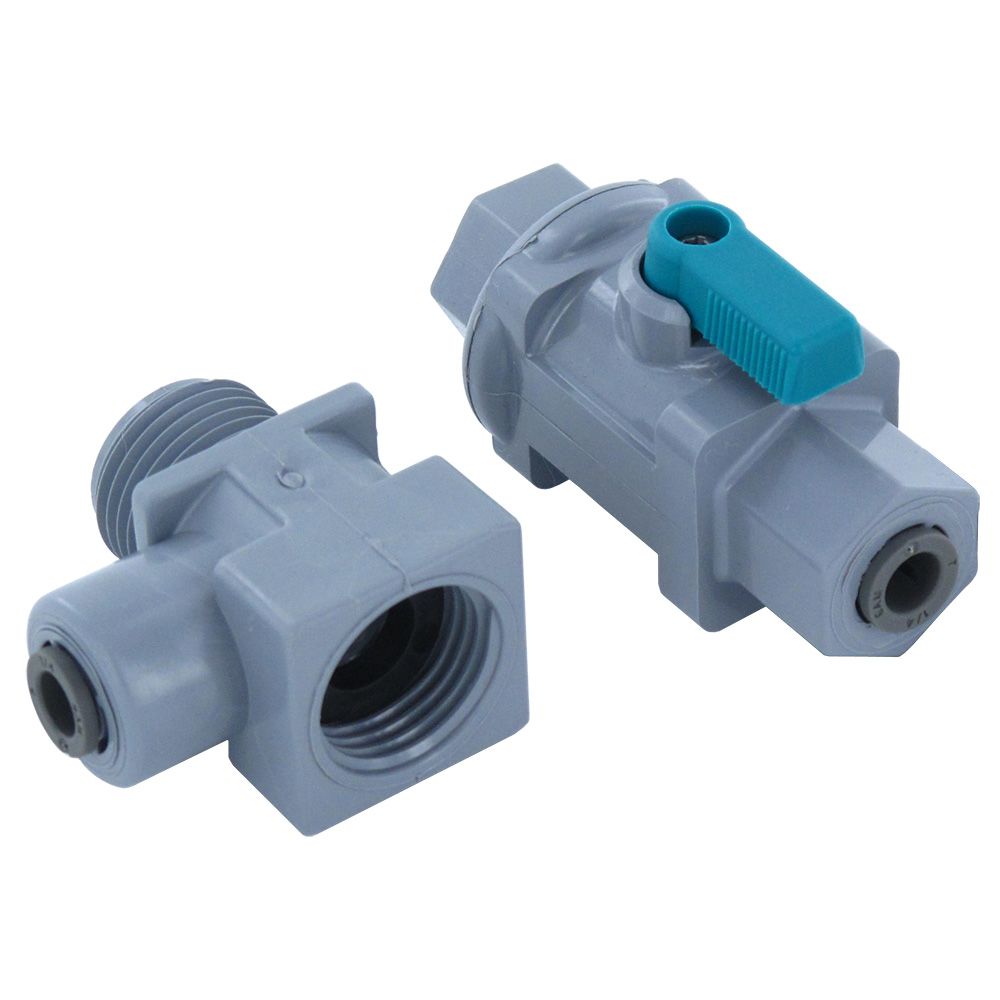

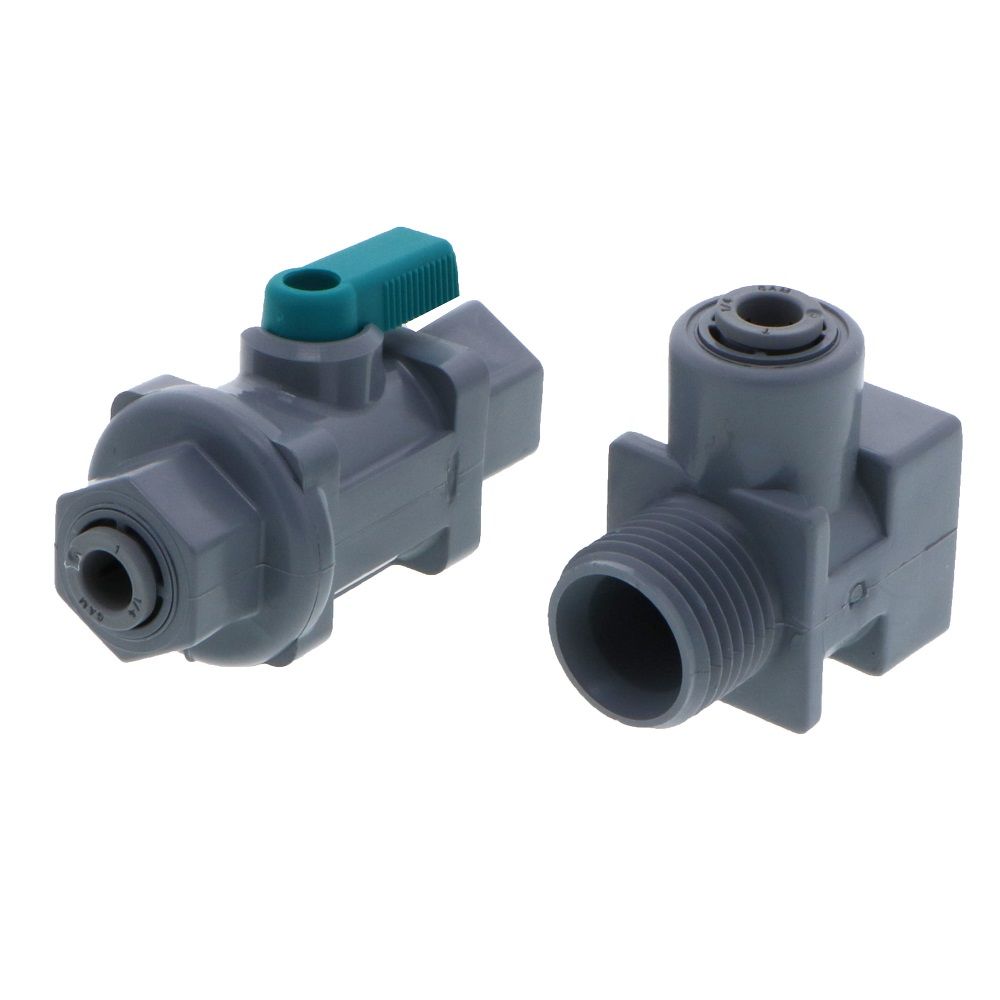

Faucet Supply Adapter - w/ Inline Ball Valve 1/4" QC

Part Number: H1030425-KIT

in stock

Your price:

$9.00

Choose

Single

5-Pack

10-Pack

20-Pack

Quantity

The GA Murdock EZ Faucet Adapter gives you a quick and easy water supply for your water filter. It provides full flow - great for homes with low water pressure. Unlike typical saddle valves, which puncture your supply line, the EZ Faucet Adapter does not damage your plumbing and can be easily removed!

Specifications:

All plastic design eliminates corrosion
Construction of NSF approved materials
JG Speedfit® for quick installation
Easily connects between standard kitchen sink faucet and supply tube.
1 Year warranty
Pressure: 0-150 p.s.i.
Temperature: 33°-140°F (1°-60°C)
Includes:EZ Faucet Adapter & 1/4" QC Inline Ball Valve
H-0830425 1/2" male & female compression thread and 1/4" JG outlet
H-0830625 1/2" male & female compression thread and 3/8" JG outlet

Easy to install:

Unscrew the supply line from the faucet stub.
Screw the EZ adapter onto the faucet stub, making sure the gasket is in place.
Screw the supply line onto the male end of the EZ adapter.
Insert tubing into the Push-In fitting.

Note: Insert the inline Ball Valve within 6 inches of the inlet to the filter device to control the flow of water and allow easy on-off.

Product Details
Application	Water Supply
Body Material	PVC
Inlet Connection	1/2" Compression
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	1/2" Compression
Push-In Size	1/4" OD 3/8" OD
Size	1/2"
Color / Finish	Gray
Connection Type	Compression
Warranty & Certifications
Warranty	1 Year
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	6 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.15

Product Details
Application	Water Supply
Body Material	PVC
Inlet Connection	1/2" Compression
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	1/2" Compression
Push-In Size	1/4" OD 3/8" OD
Size	1/2"
Color / Finish	Gray
Connection Type	Compression
Warranty & Certifications
Warranty	1 Year
Product Weight & Dimensions
Product Weight (lbs)	0.75

Product Details
Application	Water Supply
Body Material	PVC
Inlet Connection	1/2" Compression
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	1/2" Compression
Push-In Size	1/4" OD 3/8" OD
Size	1/2"
Color / Finish	Gray
Connection Type	Compression
Warranty & Certifications
Warranty	1 Year
Product Weight & Dimensions
Product Weight (lbs)	1.5

Product Details
Application	Water Supply
Body Material	PVC
Inlet Connection	1/2" Compression
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	1/2" Compression
Push-In Size	1/4" OD 3/8" OD
Size	1/2"
Color / Finish	Gray
Connection Type	Compression
Warranty & Certifications
Warranty	1 Year
Product Weight & Dimensions
Product Weight (lbs)	3

All plastic design eliminates corrosion
Construction of NSF approved materials
JG Speedfit® for quick installation
Easily connects between standard kitchen sink faucet and supply tube.
1 Year warranty
Pressure: 0-150 p.s.i.
Temperature: 33°-140°F (1°-60°C)
Includes:EZ Faucet Adapter & 1/4" QC Inline Ball Valve
H-0830425 1/2" male & female compression thread and 1/4" JG outlet
H-0830625 1/2" male & female compression thread and 3/8" JG outlet

Easy to install:

Unscrew the supply line from the faucet stub.
Screw the EZ adapter onto the faucet stub, making sure the gasket is in place.
Screw the supply line onto the male end of the EZ adapter.
Insert tubing into the Push-In fitting.

Note: Insert the inline Ball Valve within 6 inches of the inlet to the filter device to control the flow of water and allow easy on-off.
