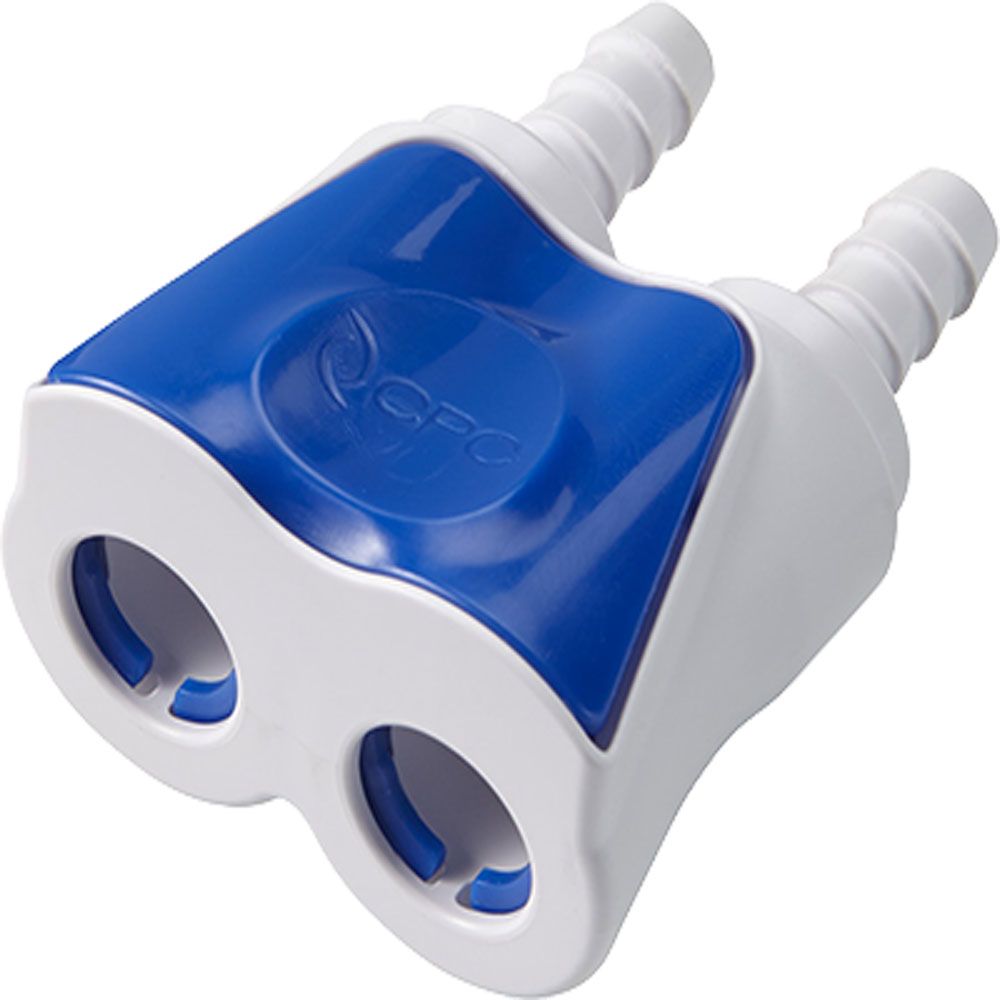

DTLD17006 Valved In-line Dual Hose Barb Coupling Body 3/8 ID Barb

The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting. One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts.

Specifications:

Material: ABS
Material Finish: White with blue latch
Valve Option: Valved
Mounting Option: Free Floating
Sterilization: EtO, E-beam, Gamma
Seal Options: BUNA-N
Pressure Range: Vacuum to 20 psi, 1.38 bar
Temperature Range: 32°F to 120°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	ABS
Max Pressure (Psi)	20
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	DTLD
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling Body
