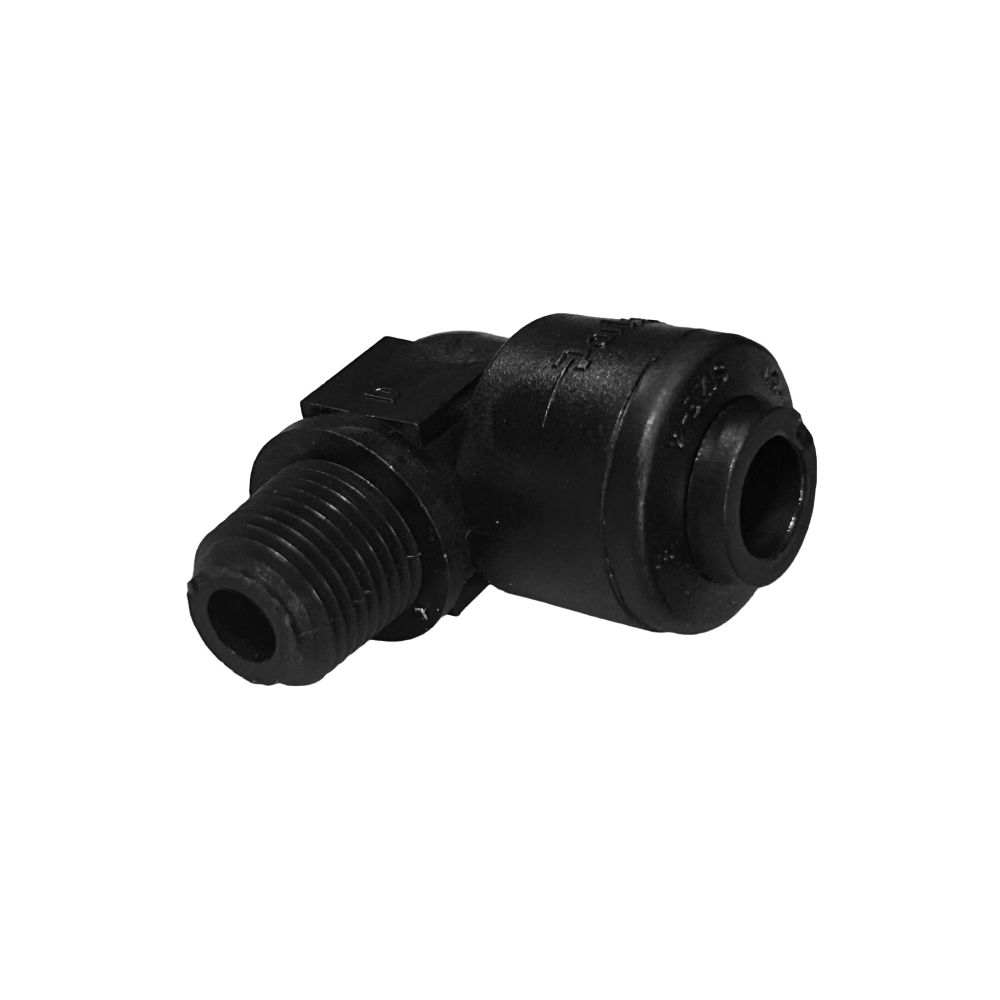

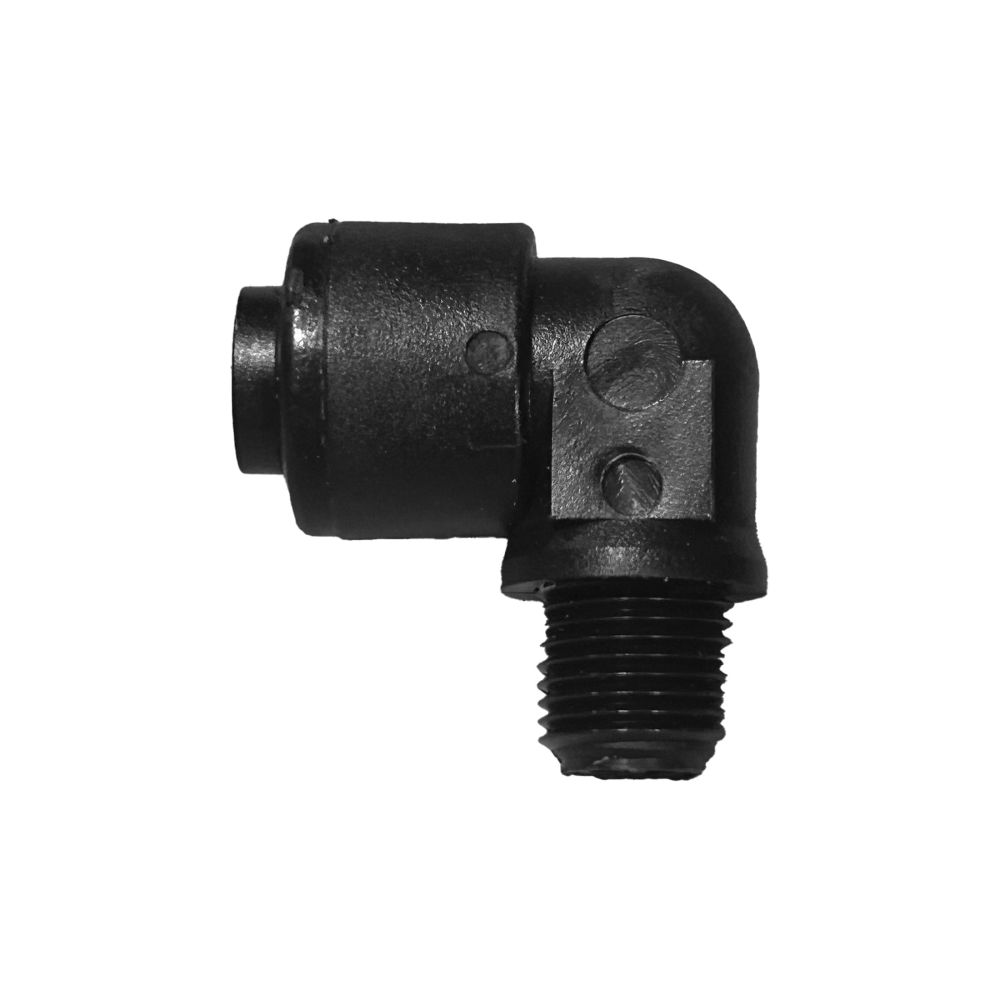

Black Kynar PVDF Male Elbow - 1/4 x 1/8 NPTF

Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.

Applications for Kynar Fittings

Chemical Processing/Storage
Fluid Handling
Semiconductor Equipment
DI Water Systems
High Purity
Aquariums

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Inlet Connection	1/8" MPT
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Outlet Connection	1/8" MPT
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Size	1/8"
Color / Finish	Black
Connection Type	Male (MPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
