Barb Tee x Male Branch - 1/2 ID x 1/4 MNPT

Home / Fittings / Hose Barb Fittings / Barb Tee x Male Branch - 1/2 ID x 1/4 MNPT

Parker

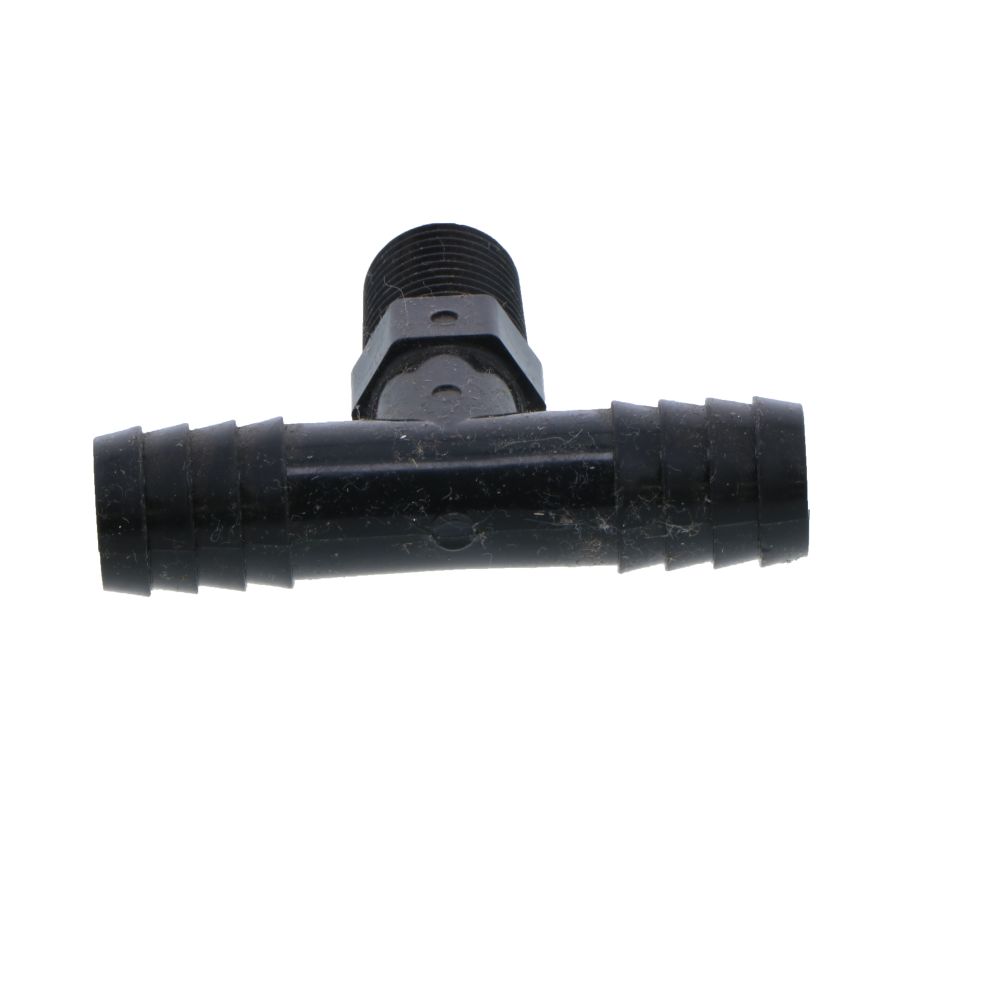

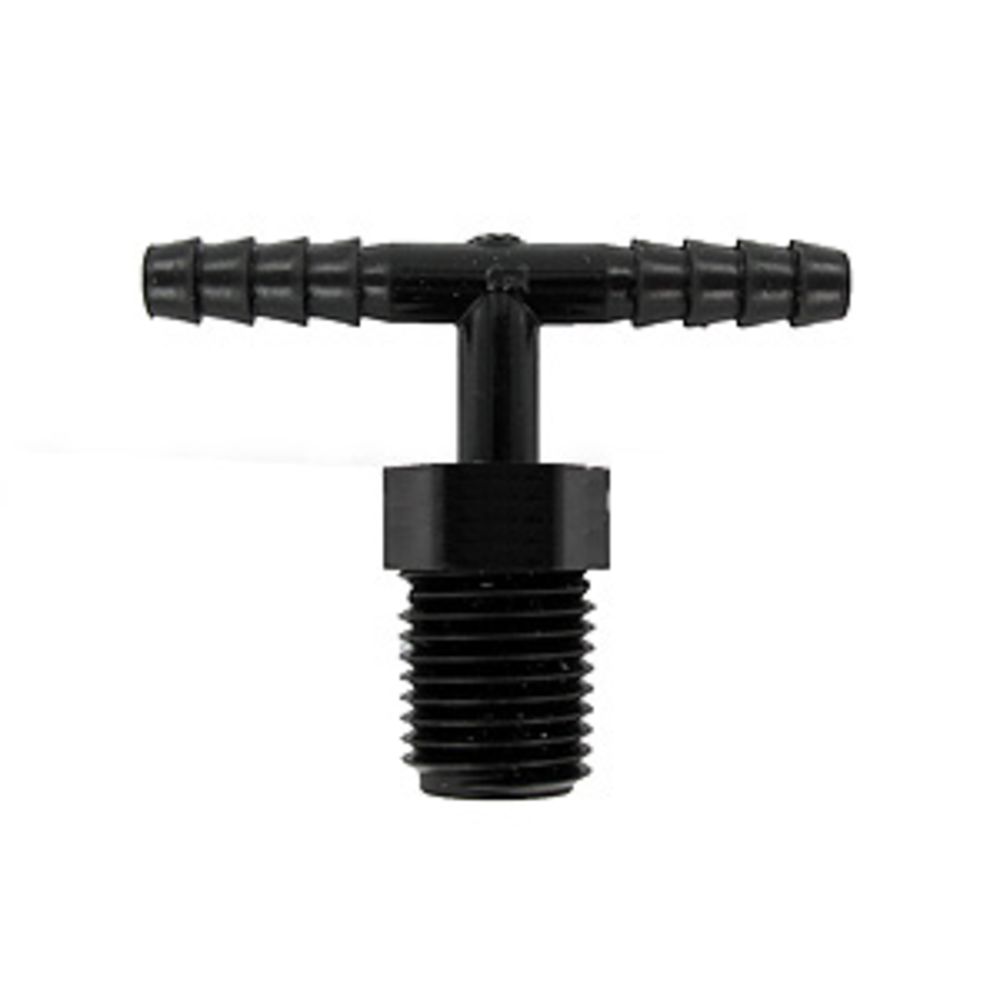

Barb Tee x Male Branch - 1/2 ID x 1/4 MNPT

Part Number: MTB-0804PP

Alt. Part Number: P8MTB4

Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.

Specifications:

Temperature Range: 65º F to 190º
Max Working Pressure: 125 psi

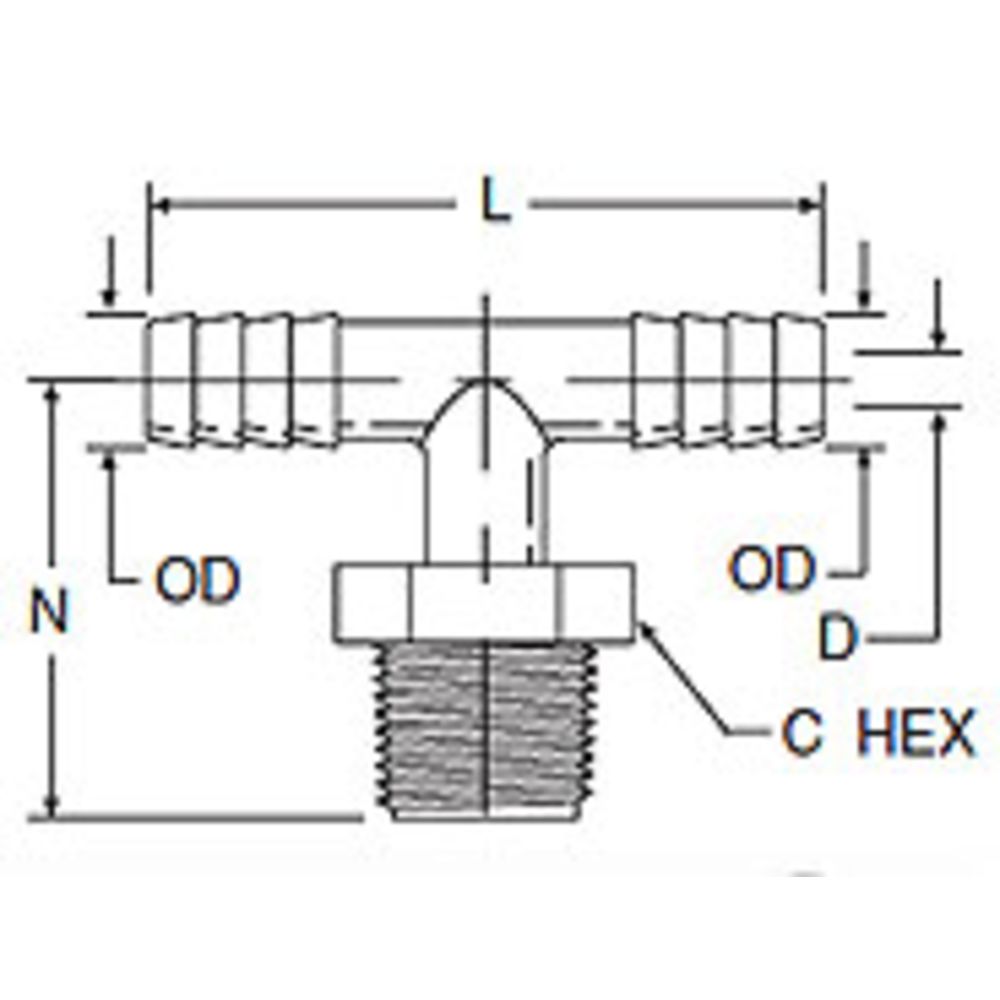

Par-Barb	Tube I.D.	NPTF Thread	C Hex	L	N	D
P4MTB4	1/4	1/4	9/16	2.004	1.406	.153

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Beverage Cooling Systems
Barb Size	1/2" ID
Body Material	Polypropylene
Inlet Connection	1/4" MPT
Max Pressure (Psi)	125
Max Temp (°F)	212
Min Pressure (Psi)	0
Min Temp (°F)	0
Mounting Options	Thread
Outlet Connection	1/4" MPT
Series	Par-Barb
Shape	Tee
Size	1/4"
Color / Finish	Black
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51

Temperature Range: 65º F to 190º
Max Working Pressure: 125 psi


Par-Barb	Tube I.D.	NPTF Thread	C Hex	L	N	D
P4MTB4	1/4	1/4	9/16	2.004	1.406	.153
