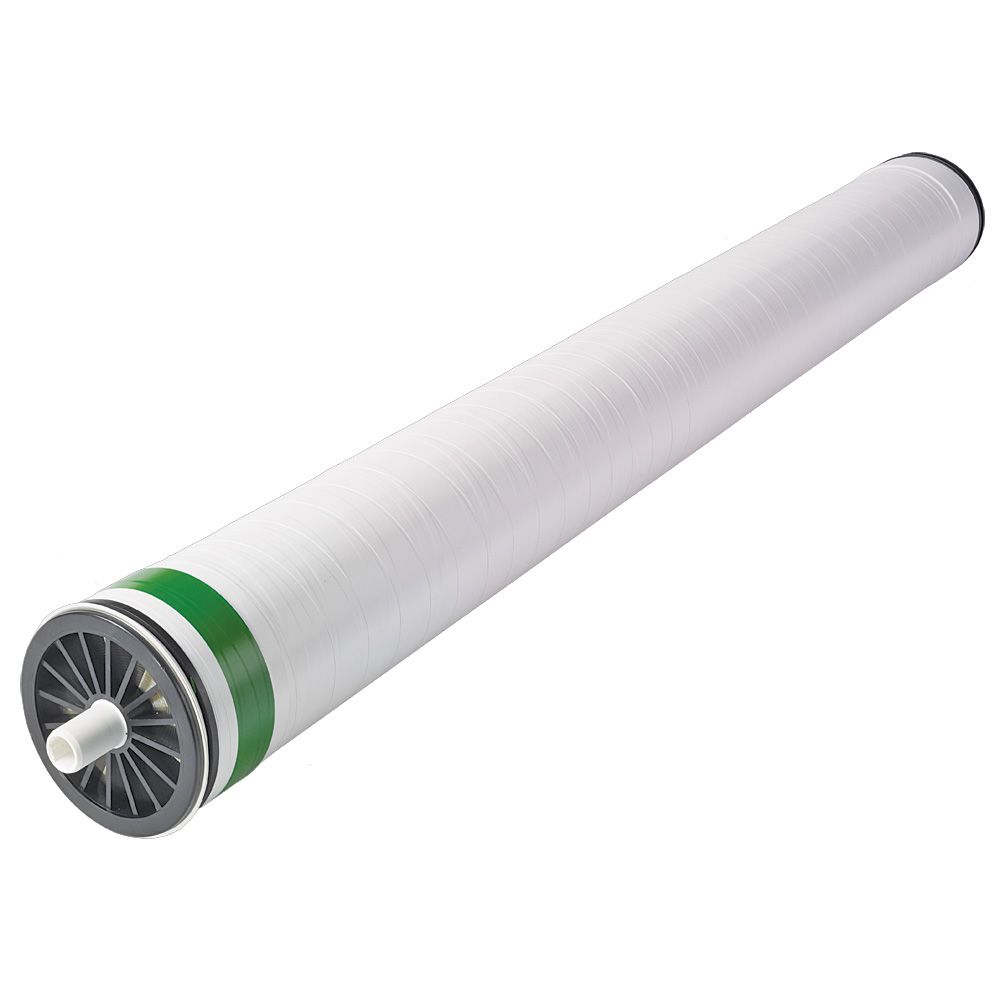

AXEON HF5-4040 2500 GPD RO Membrane Element

The AXEON HF5-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5-4040 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 2500 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 80 psi
Dimensions: 4" x 40"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Extra Low Energy, Brackish Water
Formerly known as RO UltraTec HF5-4040

AXEON RO membranes are dry packed

Product Details
Application	Brackish Water
Average Nacl Rejection	0.98
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	80 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	2500 gpd / (9.46 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	3.95"
Shipping Dimensions
Shipping Length	41 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41 in.
Product Width	4.5 in.
Product Weight (lbs)	7.25

AXEON HF5-4040 2500 GPD RO Membrane Element Manual
