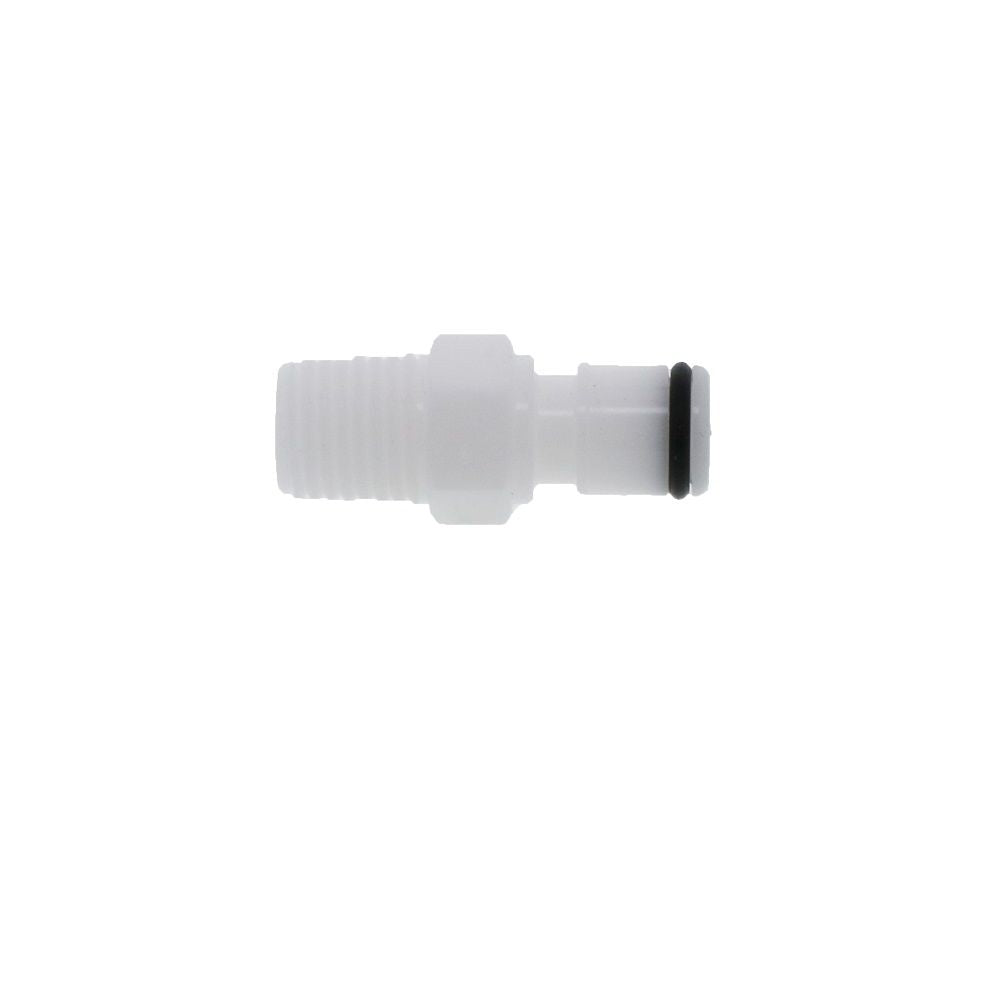

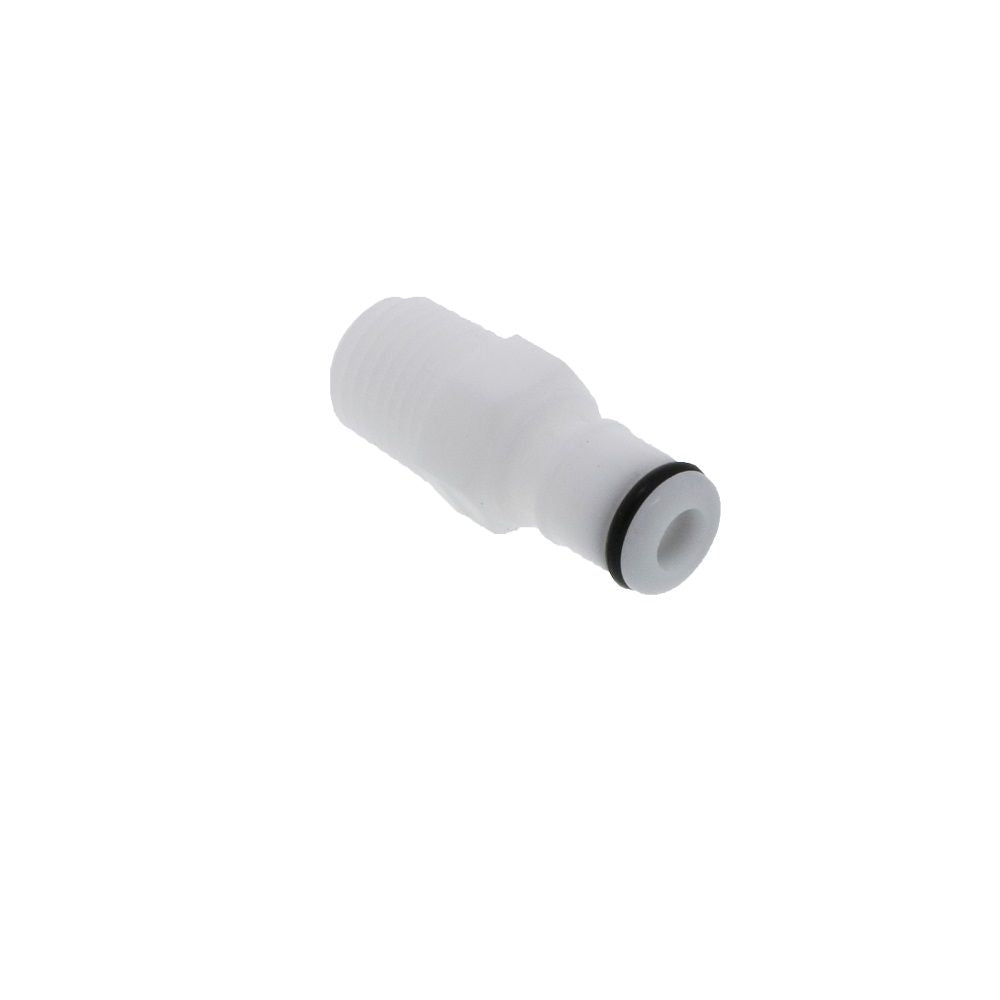

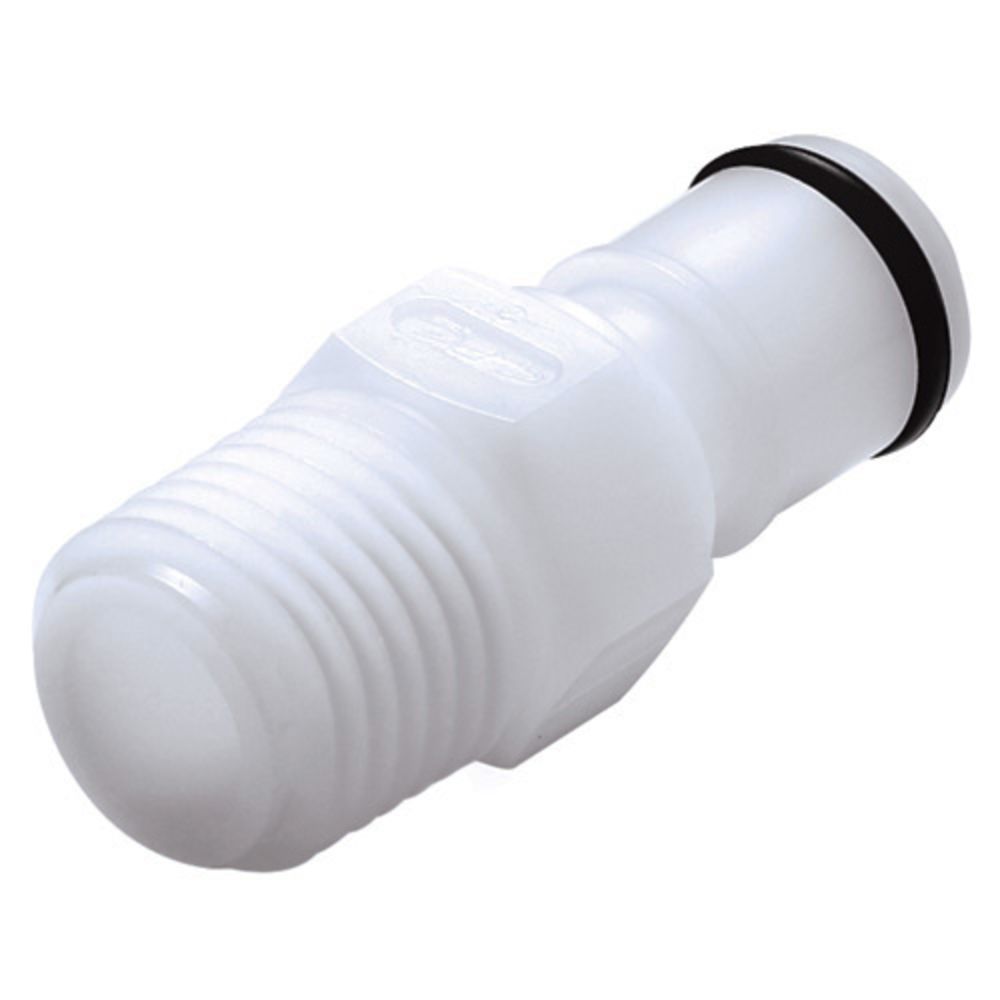

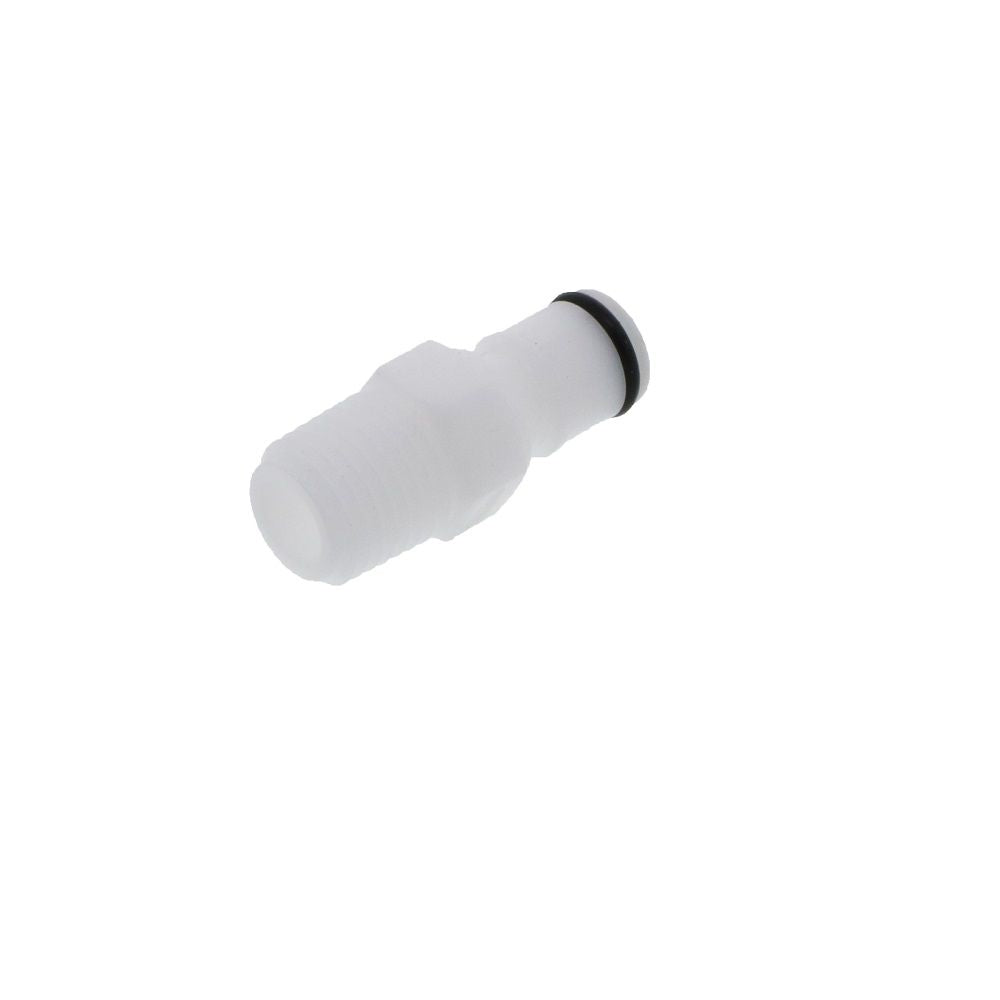

APC24004 NSF Male Thread Coupling Insert 1/4 NPT

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

NSF Listed
Material: Acetal
Color: White
Mounting Option: Thread
Seal Option: FDA EPDM
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	Yes
Number Of Seals	1
Outlet Connection	1/4" MPT
Seal Material	FDA EPDM
Series	APC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	White
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
