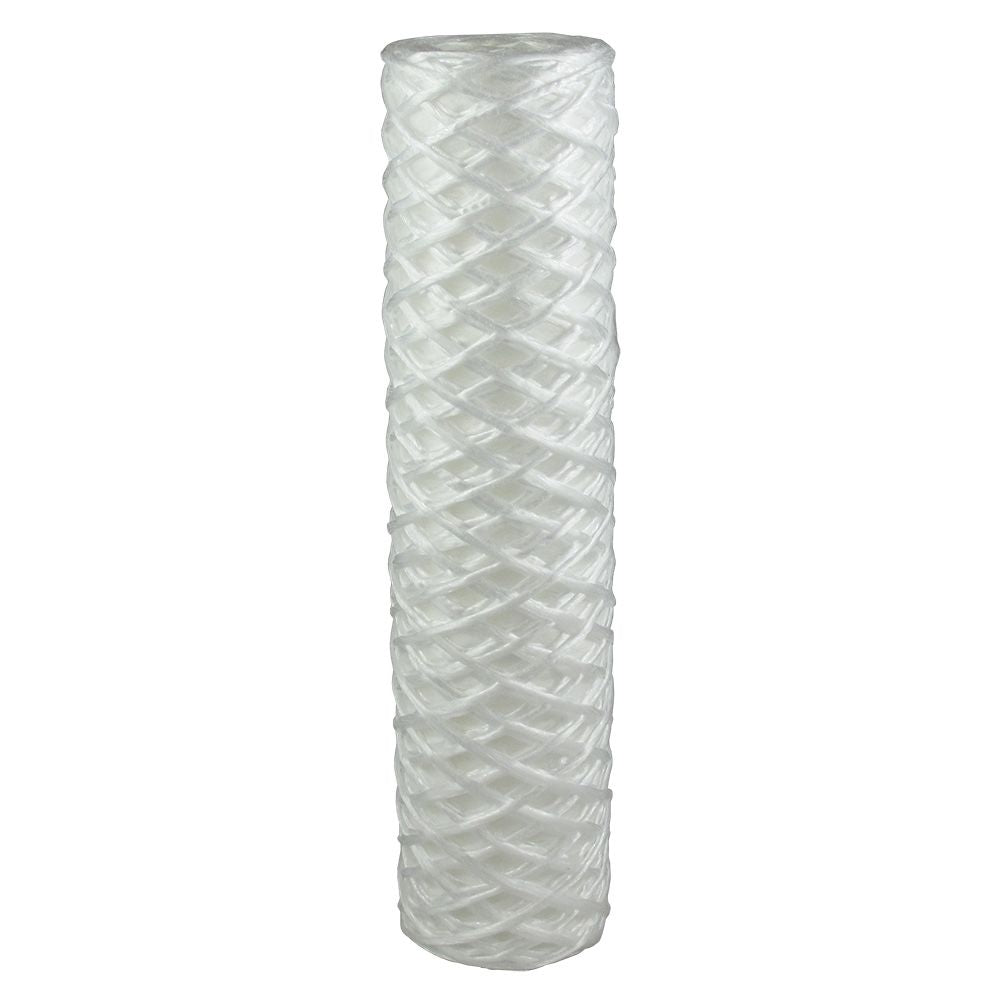

3M DPPPV1 Micro-Wynd II 100 mic Filter Cartridge

2 Reviews

Part Number: D-PPPV1

Alt. Part Number: JN-7200-0117-9, DPPPV1

in stock

Your price:

$14.72

Choose

Single

$14.72 each

Box of 50

$11.40 each

Box of 30

$12.22 each

Quantity

The 3M DPPPV1 Micro-Wynd II 100 mic Filter Cartridge is built for optimal removal, efficiency and extended capacity for superior life cycle of the cartridge. The durability of the polypropylene cartridge envelopes a high filtration filter ideal for food, beverage and other regulated applications. The 3M DPPPV1 is extremely easy to install and remove.

Features:

Higher filtration efficiency at the selected rating
Suitable for food & beverage, and other regulated applications
Very low pressure drop and high flow rates111
Longer filter life and more cost effective filtration
Suitable for water, electronics and electroplating
Eliminates joints that cause blinding or by-pass
Easy to install and remove
Ensures process and system compatibility
Reduces filter change-outs
Suitable for all filter housings
Less media migration than conventional wound cartridges
100 mic
9-7/8" x 2-3/8"
CFR 21 listed materials of construction

Product Details
Application	Food & Beverage
Max Psid	125 psid
Max Temp (°F)	250
Micron Rating (Nominal)	100 µm
Recommended Flow Rate	5 GPM
Cap Material	Polypropylene Media Blanket
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/8"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	String Wound
Filter Type	Sediment Depth
Flow Rate	5 GPM
Inner Diameter	1"
Media Type	Polypropylene Media Blanket
Micron Rating	100 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5
Product Length	10
Product Width	2.5
Product Weight (lbs)	1

Higher filtration efficiency at the selected rating
Suitable for food & beverage, and other regulated applications
Very low pressure drop and high flow rates111
Longer filter life and more cost effective filtration
Suitable for water, electronics and electroplating
Eliminates joints that cause blinding or by-pass
Easy to install and remove
Ensures process and system compatibility
Reduces filter change-outs
Suitable for all filter housings
Less media migration than conventional wound cartridges
100 mic
9-7/8" x 2-3/8"
CFR 21 listed materials of construction

Product Details
Application	Food & Beverage
Max Psid	125 psid
Max Temp (°F)	250
Micron Rating (Nominal)	100 µm
Recommended Flow Rate	5 GPM
Cap Material	Polypropylene Media Blanket
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/8"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	String Wound
Filter Type	Sediment Depth
Flow Rate	5 GPM
Inner Diameter	1"
Media Type	Polypropylene Media Blanket
Micron Rating	100 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5
Product Length	10
Product Width	2.5
Product Weight (lbs)	1

Product Details
Application	Food & Beverage
Max Pressure (Psi)	125 psid
Max Temp (°F)	250
Micron Rating (Nominal)	100 µm
Recommended Flow Rate	5 GPM
Cap Material	Polypropylene Media Blanket
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/8"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	String Wound
Filter Type	Sediment Depth
Flow Rate	5 GPM
Inner Diameter	1"
Media Type	Polypropylene Media Blanket
Micron Rating	100 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	15.125 in.
Shipping Width	12.75 in.
Shipping Height	10.75 in.
Product Weight & Dimensions
Product Height	10.75
Product Length	15.125
Product Width	10.75
Product Weight (lbs)	13.132
