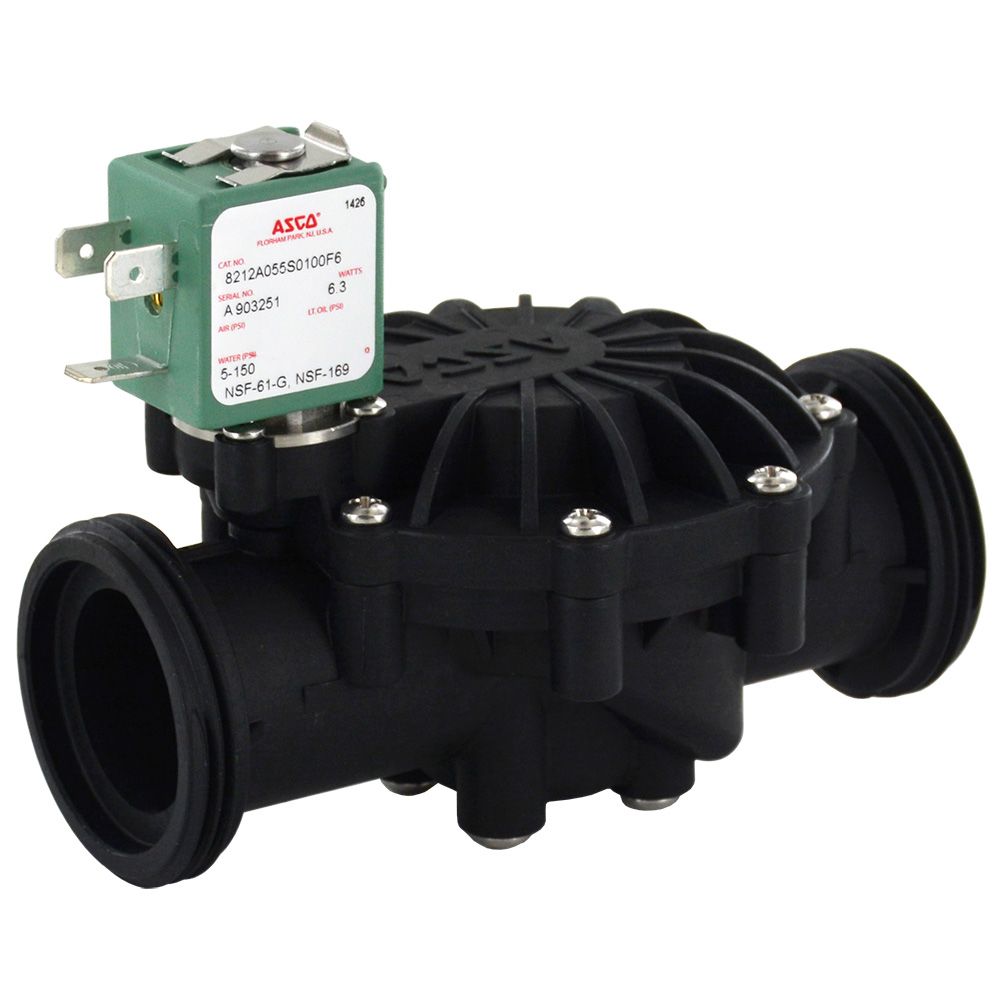

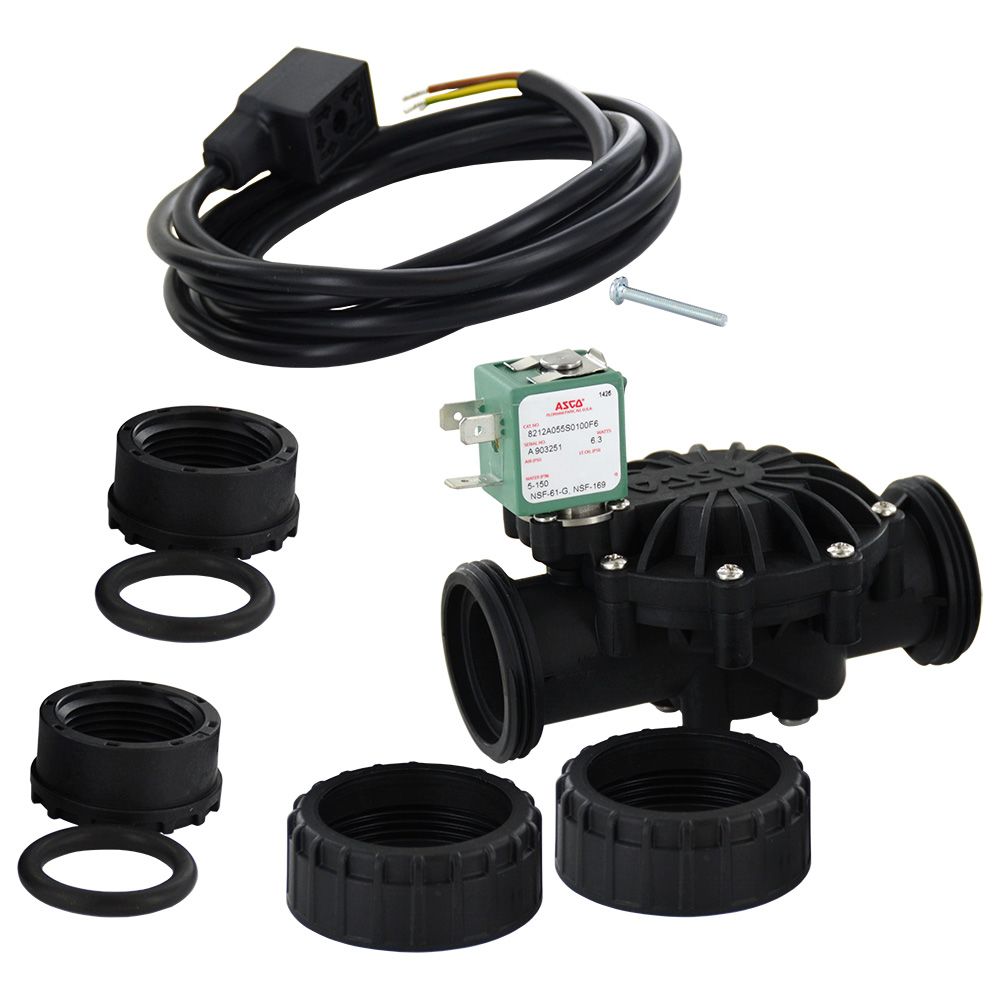

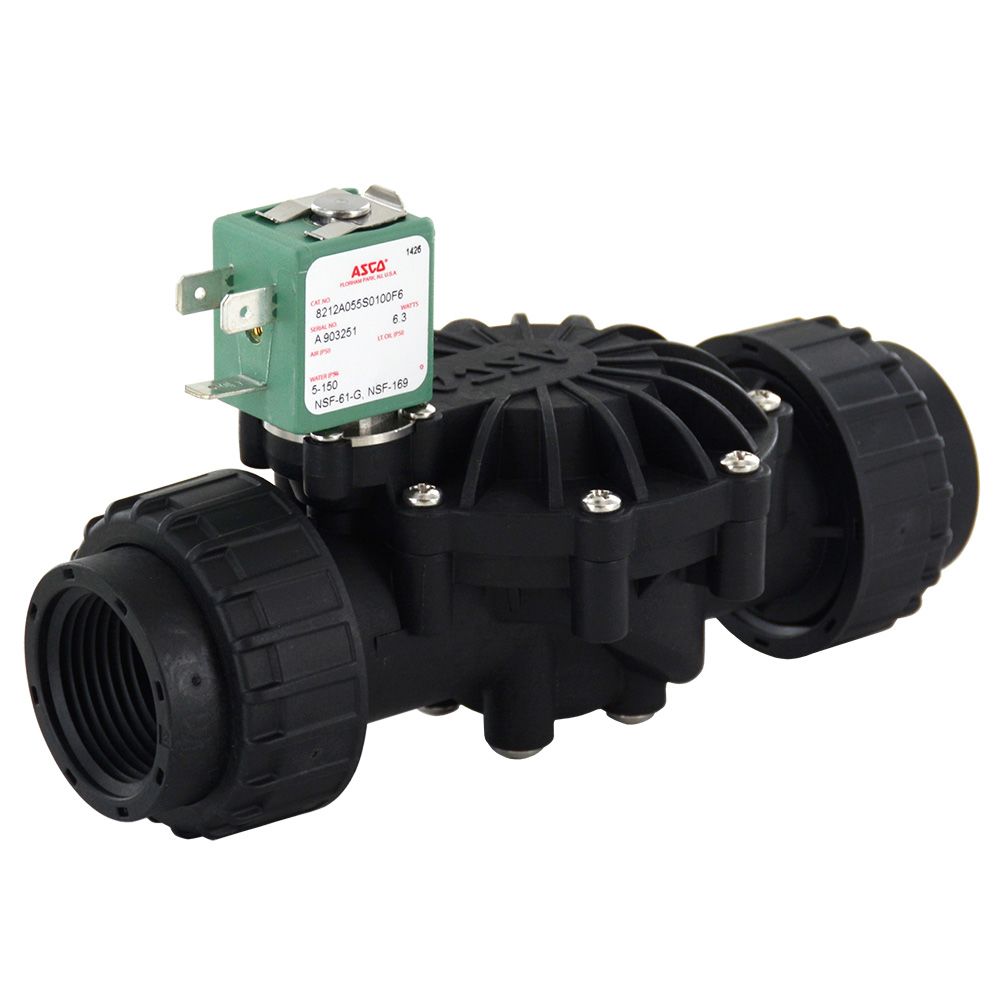

2-Way Solenoid Valve Normally Closed 1" FPT 240V

Home / Plumbing / Valves / 2-Way Solenoid Valve Normally Closed 1" FPT 240V

AXEON

2-Way Solenoid Valve Normally Closed 1" FPT 240V

Part Number: SOL-1.0/2

Alt. Part Number: 8212A055S0100F6

This 2-way normally closed solenoid valve is suitable for use in commercial/industrial water purification applications such as reverse osmosis systems, restaurant food and beverage equipment and grocery store produce misting systems. It can also be used with UV water treatment system. Valves are easy to install and are NSF certified.

Specifications:

Composite body valve
2-way normally closed valve
FasN™ connection system with 1" FPT fittings
Temperature rating: Up to 180°F
Max Pressure: 150 psi
Voltage: 240V
UL listed and NSF certified
Manufacturer: ASCO Mfg Part #: 8212A055S0100F6

Compatible with:

AXEON/RO Ultratec

207675

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Polyphenylene Ether (PPE)
Max Pressure (Psi)	150
Max Temp (°F)	120
Min Pressure (Psi)	5
Min Temp (°F)	32
Power	6.3
Psid@Flow Rate	1 PSI @ 13 GPM
Rating	F
Seal Material	EPDM
Va Inrush / Va Holding	12.1/8.8
Wetted Materials	Stainless Steel Composite Engineered Plastic
Port Size	1" FPT"
Type	2-Way
Voltage	240V
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42, NSF/ANSI 169
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.1

Composite body valve
2-way normally closed valve
FasN™ connection system with 1" FPT fittings
Temperature rating: Up to 180°F
Max Pressure: 150 psi
Voltage: 240V
UL listed and NSF certified
Manufacturer: ASCO Mfg Part #: 8212A055S0100F6
