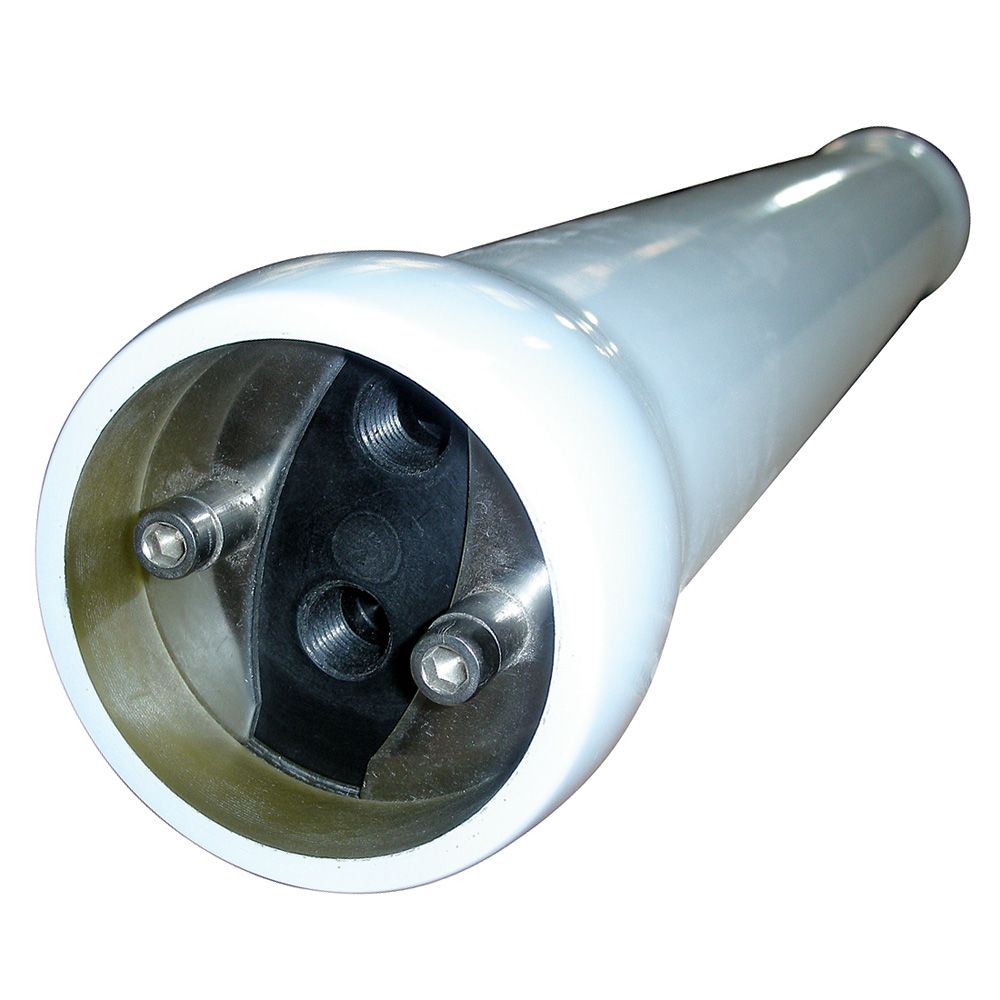

2.5 X 40 Fiberglass Membrane Housing 300 psi

Part Number: MHFG-2540-14-300

More expected soon

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

backorder

Your price:

$399.14

Quantity

ROPV 2.5" x 40" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials. These fiberglass pressure vessels accommodate standard 2.5" membrane filtration elements and operate at pressures up to 300 psi. Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.

Features:

Easy installation and maintenance
Constructed for best chemical compatibility and corrosion resistance
End port design
Operating temperature range: 14° F to 150° F
Operating pressure: 300 psi
Feed and concentrate port: 1/4" FNPT
Permeate port: 1/4" FNPT

NOTE:Comparable to housings manufactured by A & M and HCTI.

Product Details
Cleaning Ph Range	2-12
Closure Type	Locking Ring
Housing Material	Fiberglass
Max Pressure (Psi)	300
Max Temp (°F)	150
Membrane Size	2-1/2" x 40"
Min Temp (°F)	14
O-Rings	EPDM
Ph Range	3-11
Diameter	3.1"
End Cap Type	ABS
Port Size	1/4"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	47 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Length	42.8"
Product Weight (lbs)	7

Easy installation and maintenance
Constructed for best chemical compatibility and corrosion resistance
End port design
Operating temperature range: 14° F to 150° F
Operating pressure: 300 psi
Feed and concentrate port: 1/4" FNPT
Permeate port: 1/4" FNPT

NOTE:Comparable to housings manufactured by A & M and HCTI.
