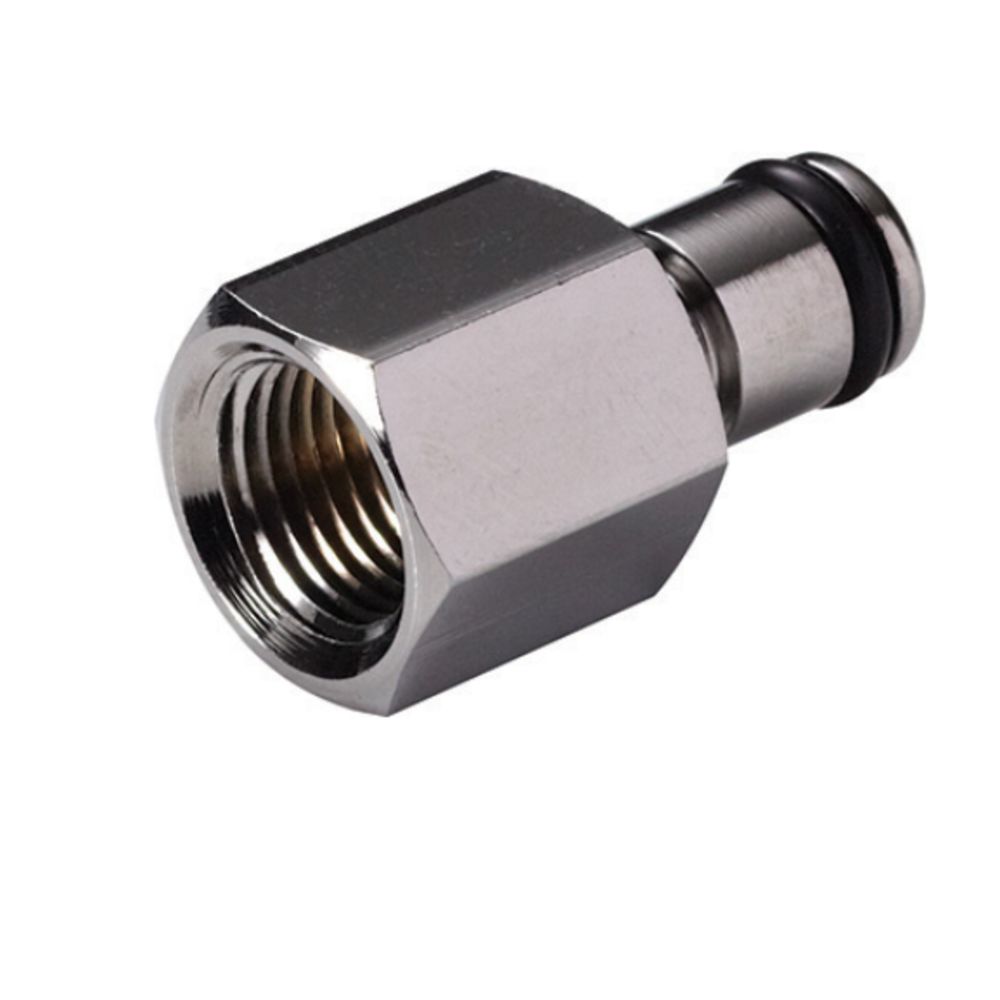

17500 NSF Non-Valved Coupling Insert 1/8 NPT

MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Valve Option: Non-Valved
Mounting Option: Thread
Temperature Range: -40°F to 180°F
Pressure Range: Vacuum to 250 psi, 17.3 bar
Seal Options: BUNA-N

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Chrome-Plated Brass
External Springs And Pin	Stainless Steel
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	Yes
Number Of Seals	1
Outlet Connection	1/8" MPT
Seal Material	FDA Buna-N
Series	MC
Shape	Straight
Size	1/8"
Spring	316 Stainless steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	Male (MPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Body Material	Chrome-Plated Brass
External Springs And Pin	Stainless Steel
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	Yes
Number Of Seals	1
Outlet Connection	1/8" MPT
Seal Material	FDA Buna-N
Series	MC
Shape	Straight
Size	1/8"
Spring	316 Stainless steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	Male (MPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
