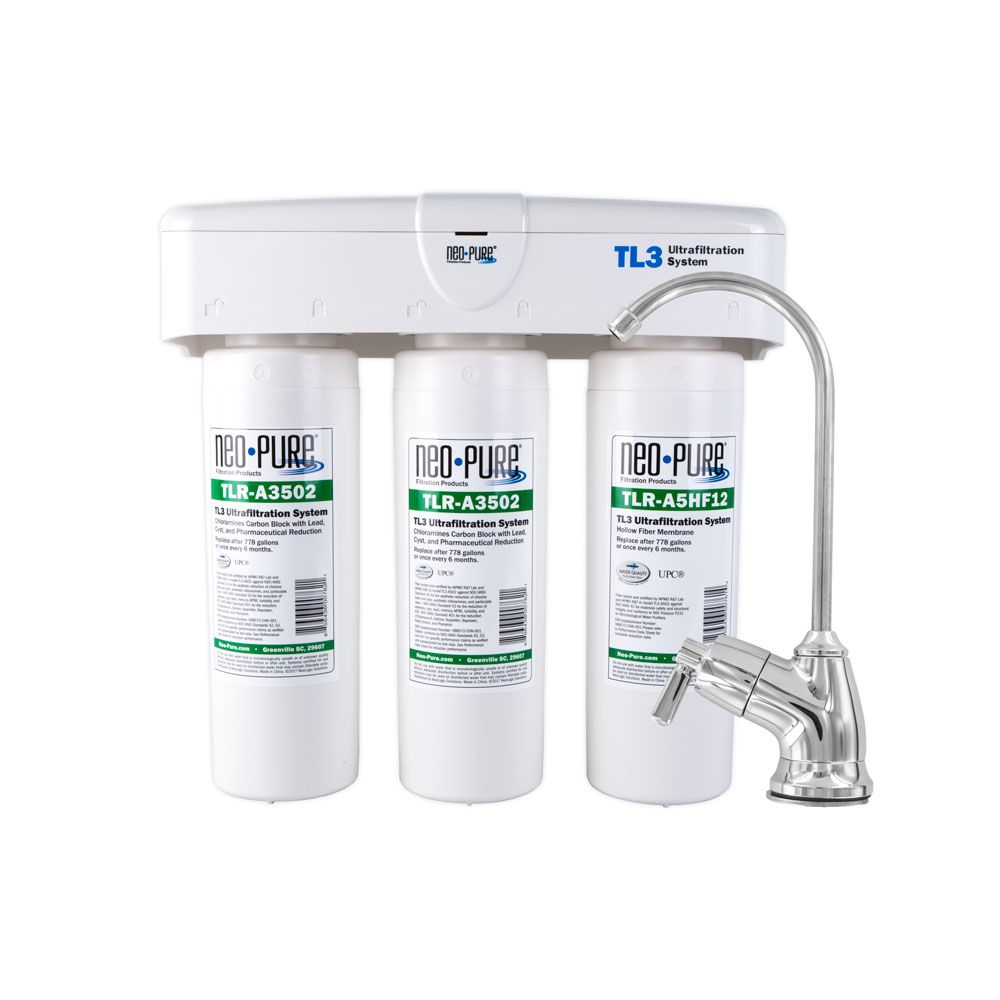

The Neo-Pure TL3-A502 ultrafiltration water system removes contaminants from your drinking water, while retaining beneficial minerals. These minerals give better flavor to the water used for drinking and coffee and tea brewing. Chemical contaminants, bacteria, and viruses cannot pass through the ultrafiltration (UF) membrane, and the carbon block filters reduce chlorine taste and odor. The Neo-Pure TL3 system fits directly under your sink for convenient access.

Learn more about ultrafiltration on our blog.

The twist-lock cartridges have a built-in shut-off valve that allows you to conveniently remove and replace your system’s parts without turning off the water. Simply twist these filter cartridges to remove or lock them in place.

Learn what contaminants might be in your water and how contaminants enter the water supply.

Benefits of the Neo-Pure TL3-A502

• Eco-friendly: This ultrafiltration water system produces no wastewater, eliminating the need for a large holding tank.
• IAPMO certified: The Neo-Pure TL3-A502 filters are certified by IAPMO according to the NSF/ANSI standards 42, 53, 401, and NSF Protocol P231 for microbial water purifiers for contaminant reduction.
• Sub-micron membrane: The UF membrane (.025 sub-micron) has twice as much surface area compared to other under sink filtration systems.
• Quick filter replacements: These ¼ turn quick-change filters are built with shut-off valves for more simple and sanitary replacements.
• Increased flow rate: The increased surface area of the UF membrane allows the Neo-Pure system to operate at a higher flow rate (1 gpm). Unlike other ultrafiltration water systems, the higher flow rate allows the Neo-Pure TL3 to supply fresh drinking water to multiple points of use (water faucet, refrigerator ice maker, instant hot water system, etc.).

What’s included in the Neo-Pure TL3?

1. Triple-stage head
2. Twist-lock cartridges
3. Chrome faucet
4. ¼" tubing (6ft)
5. Angle stop valve adapter (ASVA)
6. Faucet connector with insert, ferrule, and compression nut

Read our Neo-Pure TL3 system manual under the specifications tab for instructions on how to install your Neo-Pure system.

Other installation tools needed

• Two Phillips screws (at least 7/8" to 1" long)
• Phillips screwdriver
• 1/8" drill bit
• Center punch
• Adjustable wrench
• Utility knife
• File
• Tape measure
• Safety glasses
• Masking tape
• Newspaper or towels
• Pencil
• Bucket or pan

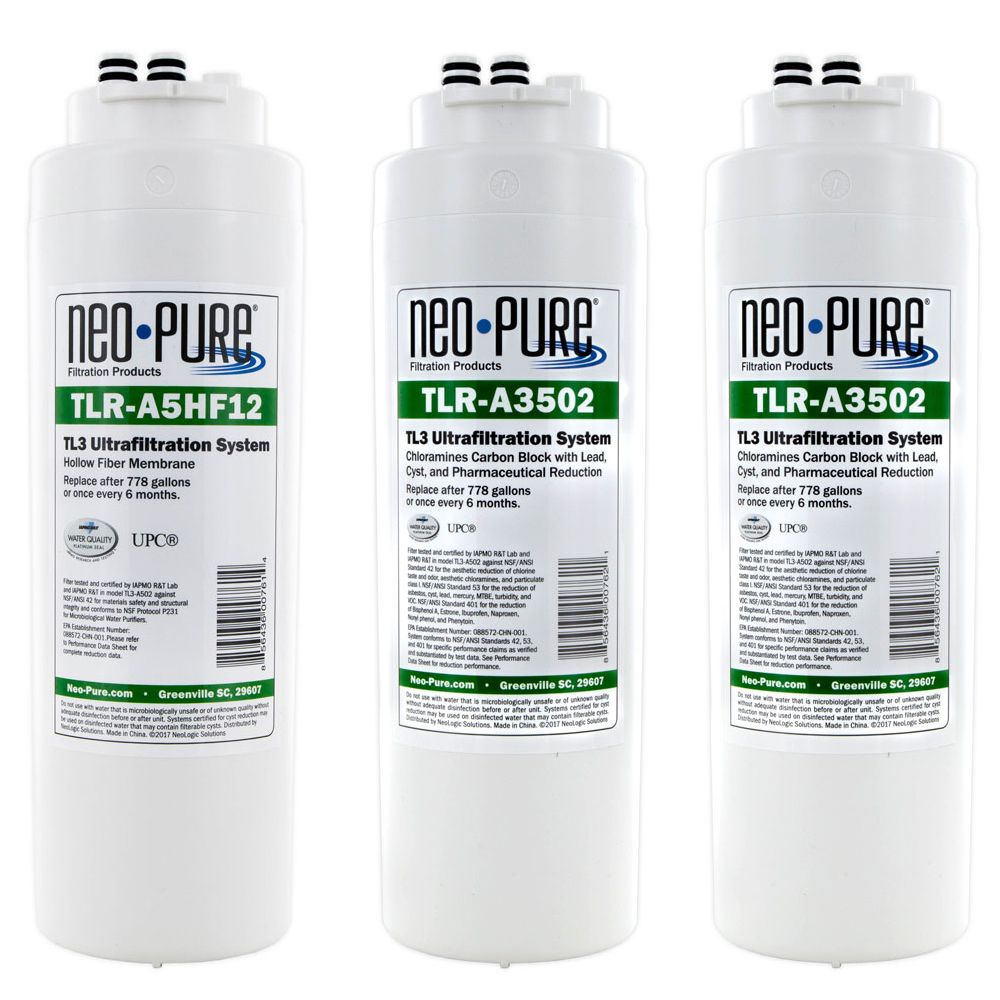

How often should you replace your Neo-Pure filter cartridges and UF membrane?
Carbon filter cartridges: 6 months

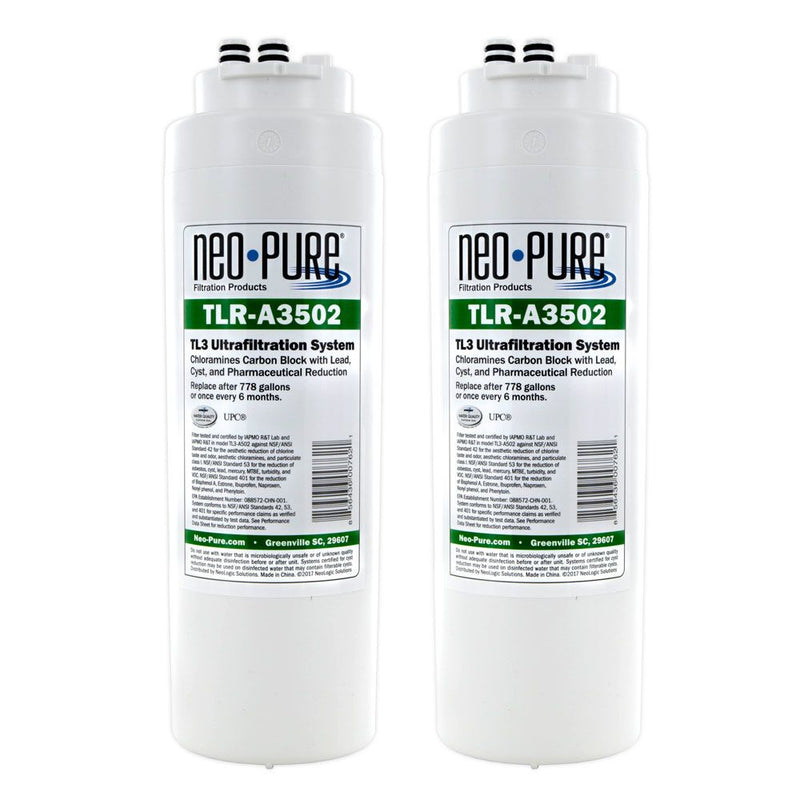

• TLR-A3502: carbon block filter for stages one and two of filtration

UF membrane: 6 months to 1 year

• TLR-A5HF12: hollow fiber membrane cartridge for stage three filtration

Compatible with:

Aqua-Pure™/3M Purification	AP802, 5585704, 55857-04, AP802-1.5, AP802-1.5-C
AquaCera	W9371040-KIT
