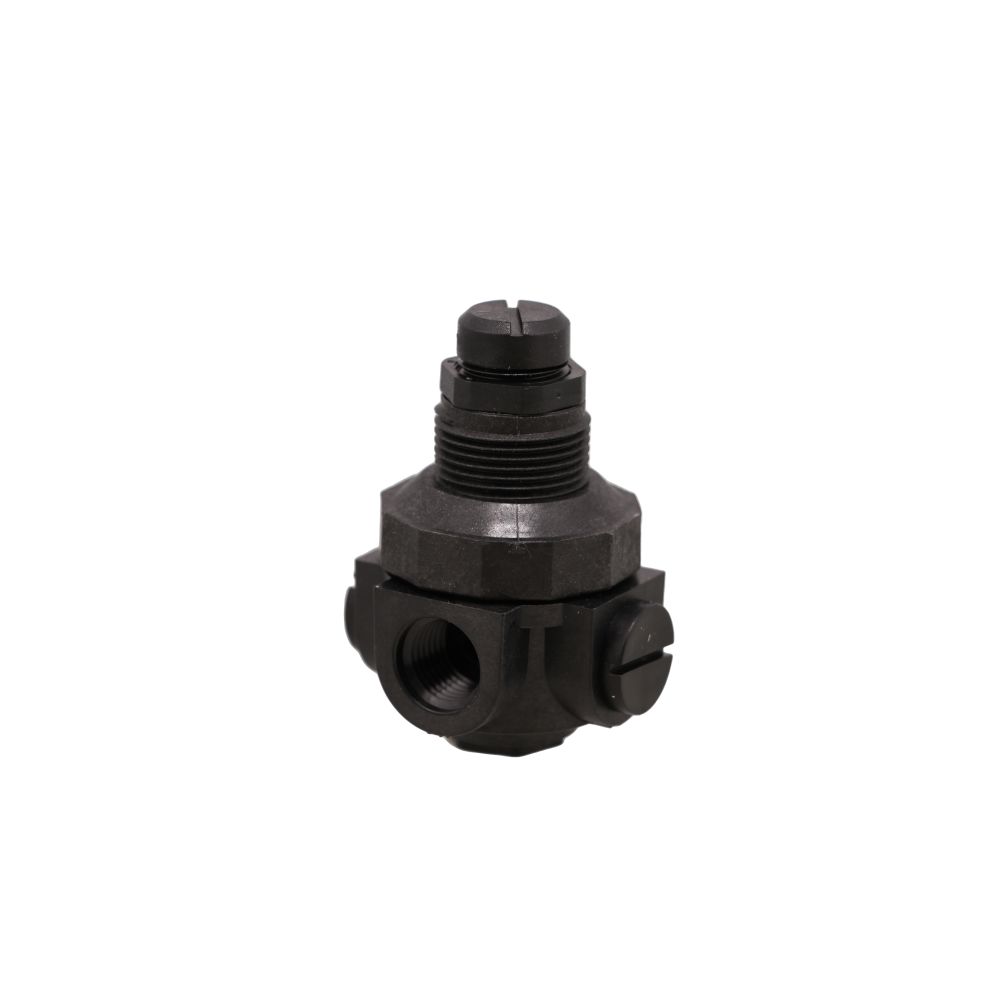

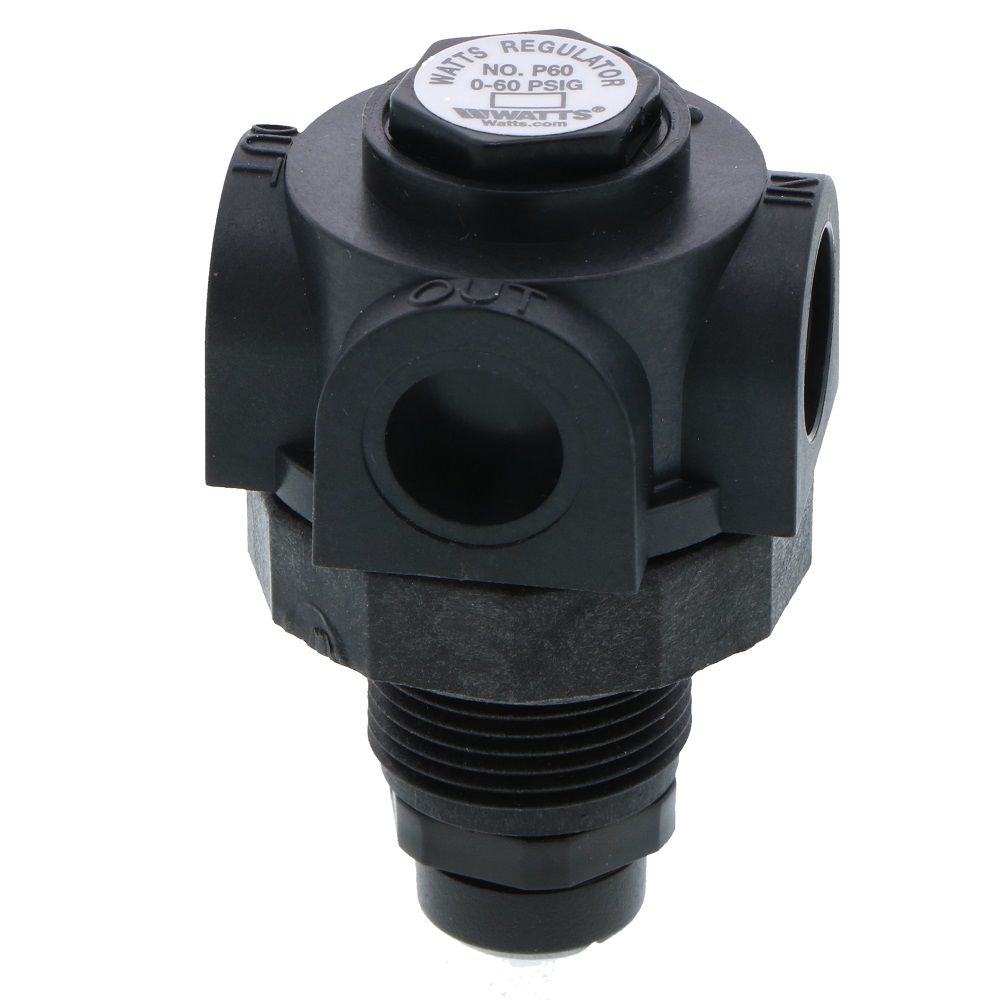

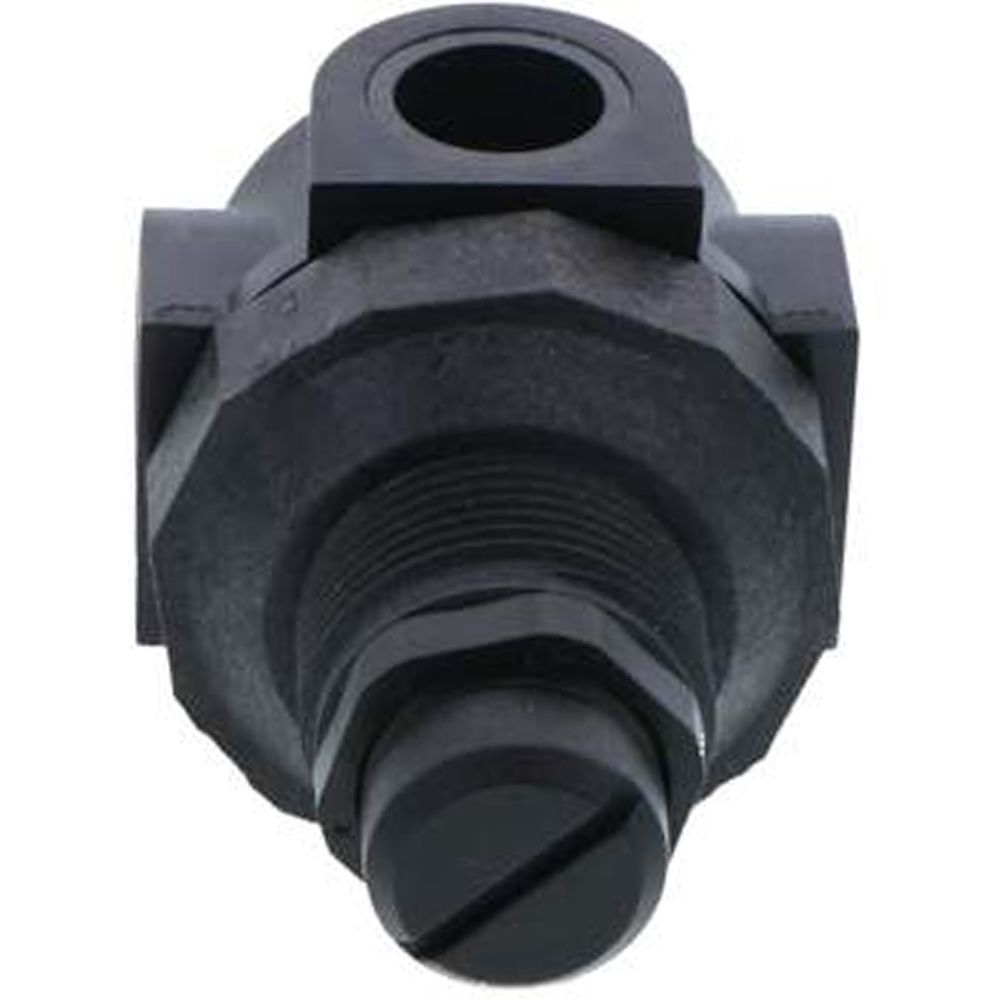

Watts P60 Series Miniature Plastic Water Pressure Regulator - 2 Way - 1/4" FNPT 0-125 psi

Part Number: P60-M1-2C
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Your price:
Choose
Single
Box of 50
Series P60 Miniature Plastic Water Pressure Regulators are used in general purpose and OEM applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction with *1/4 in. NPT female connections or quick connect fittings in a straight through or 90° inlet to outlet design. All external components are NSF approved thermoplastics and all internal rubber components (disc, diaphragm, and seals) of FDA grade elastomers. All internal metal components are 300 Series stainless steel, and features a bottom clean-out plug for service. Series P60 is compact and lightweight with a high flow capacity. It is also suitable for deionized water applications.

Features:
  • Available with 1/4" NPT female threads or 1/4" quick connect fittings*
  • Corrosion Resistant thermoplastic body
  • Compact design and lightweight construction
  • All external components are made of NSF approved thermoplastics
  • All internal rubber components in contact with fluid are of 300 series stainless steel

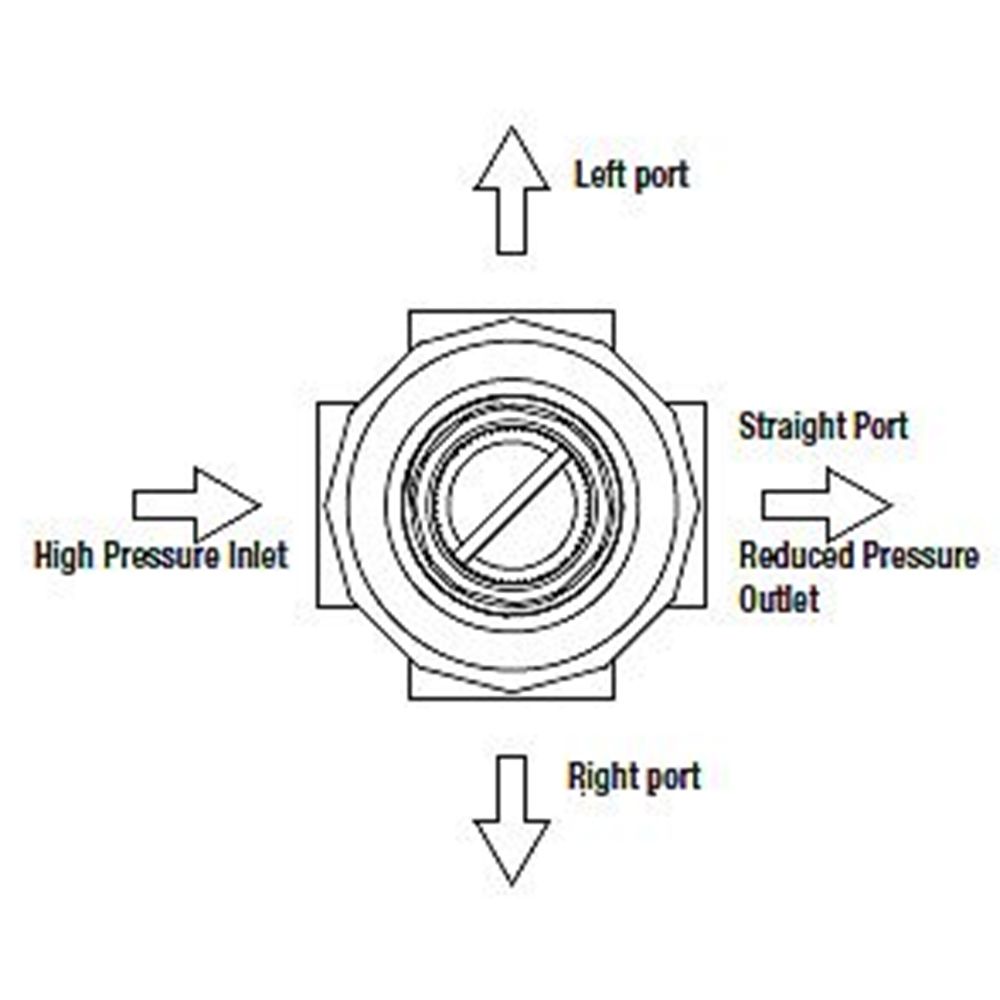

  • Straight thu or 90º inlet to outlet options
  • High Capacity
  • Bottom "clean out plug" for service
*Quick connect fittings not available in all configurations.

NOTE: 2-way regulators will not accept a pressure gauge. If you need to add a gauge, select the 4-way configuration. For more size, pressure, and connection options please refer to the table below.

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.

Product UPC
Order Code
Lead Free
Pre-set Pressure Description
098268224368 0354553 YES  50 psi 1/4 P50 M1 0-125
098268224375 0354554 YES  15 psi 1/4 P60 M1 0-25
098268224382 0354555 YES  40 psi 1/4 P60 M1 0-60
098268224399 0354556 YES  50 psi 1/4 P60 M1 0-125
098268243895 0363001 YES  15 psi 1/4 P60 M5 0-25
098268243901 0363002 YES  40 psi 1/4 P60 M5 0-60
098268243918 0363003 YES  50 psi 1/4 P60 M5 0-125
098268244021 0363007 YES  40 psi 1/4 P60 M5 4-way 0-60
098268244069 0363008 YES  50 psi 1/4 P60 M5 4-way 0-125
098268244076 0363009 YES  40 psi 1/4 P60 M5 4-V 0-60
098268298031 0354576 YES  40 psi 1/4 P50 M1 QD 0-60
098268329636 0354590 YES  15 psi 1/4 P60 M1 4-way 0-25
098268329643 0354591 YES  40 psi 1/4 P60 M1 4-way 0-60
098268329650 0354592 YES  50 psi 1/4 P60 M1 4-way 0-125
098268341911 0354608 YES  50 psi 1/4 P60 M1 QD 4-way 0-125
