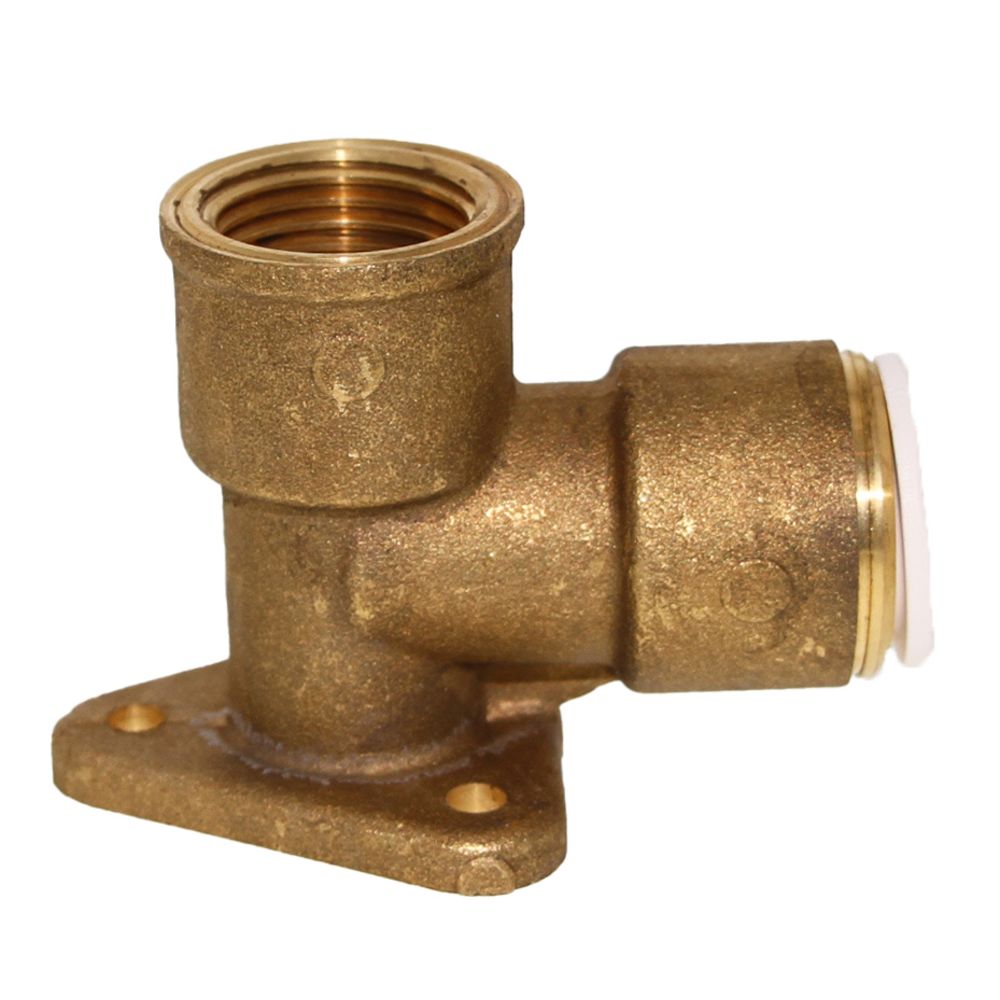

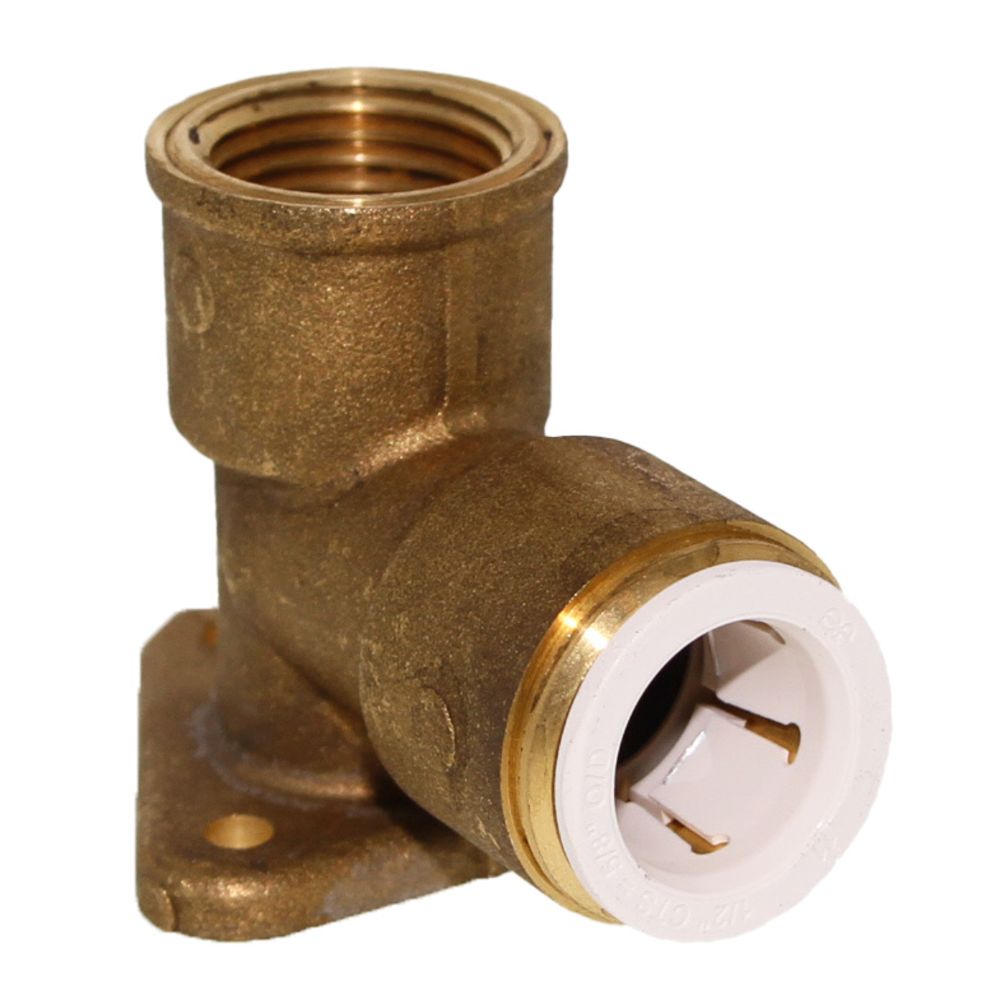

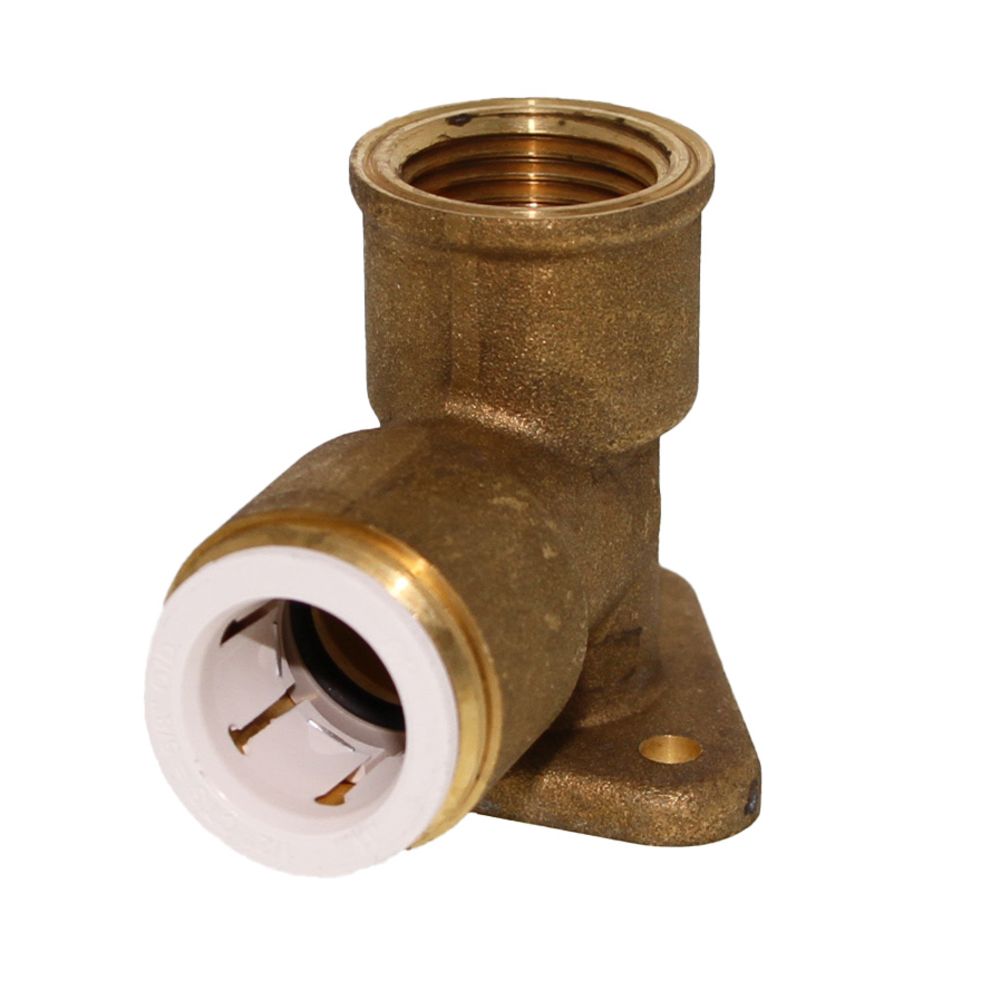

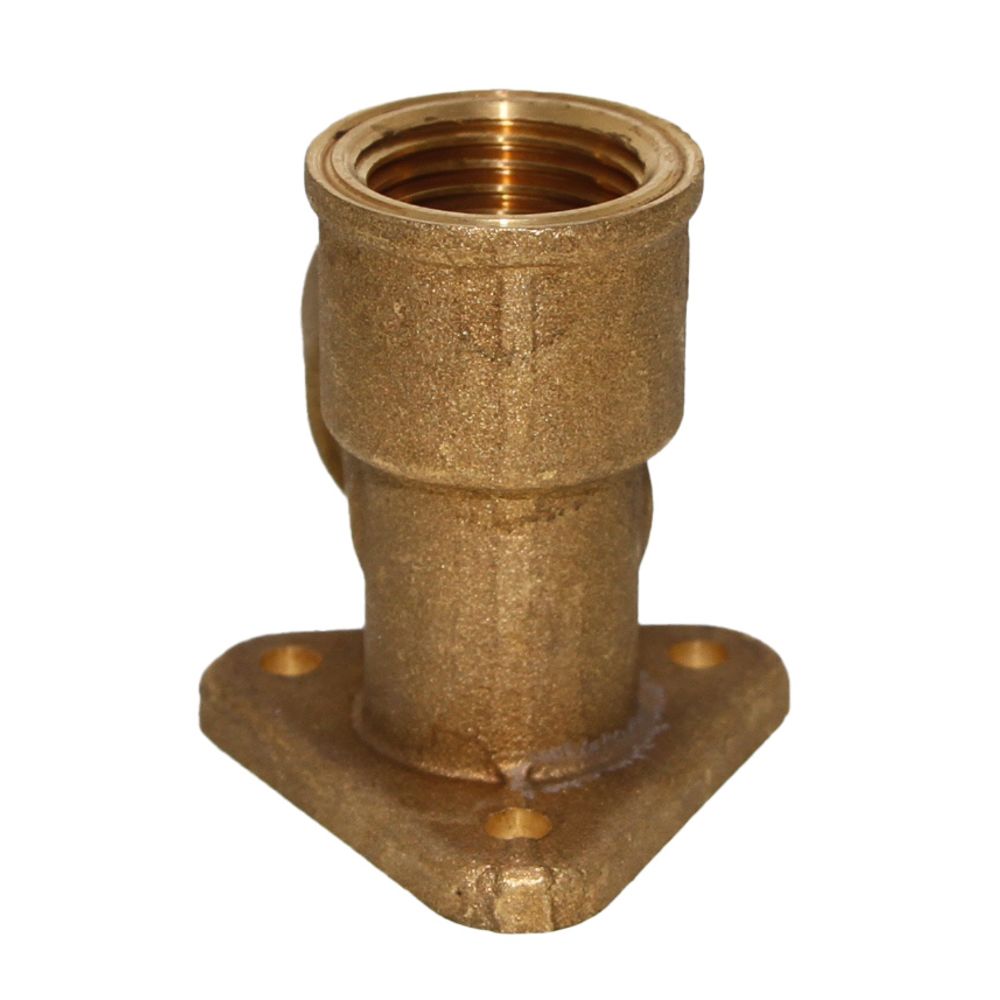

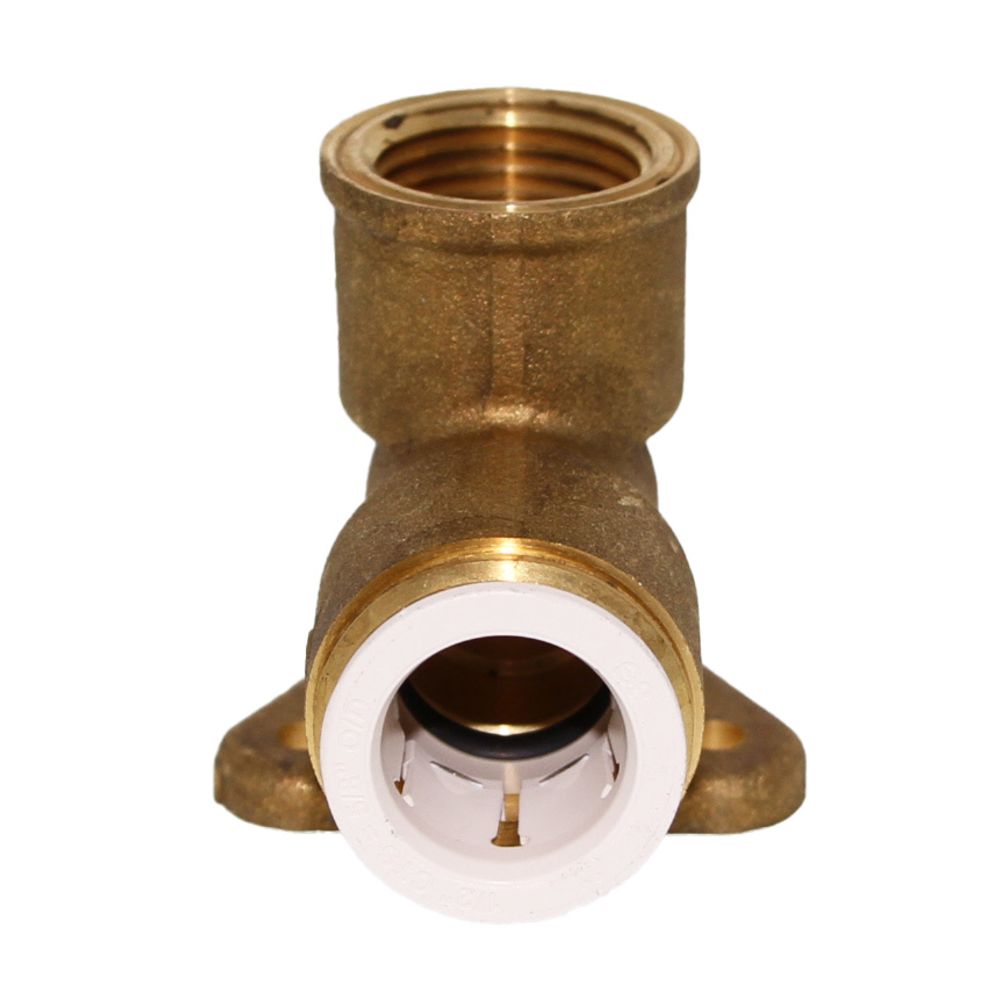

John Guest Drop Ear Elbow - 1/2 CTS x 1/2 NPT

The John Guest Speedfit Wing Back Elbow Connector is used for connecting shower arm and tub spouts. This fitting has three mounting holes for secure mounting and easily connects to Copper, PEX or CPVC. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.

Features:

For use with Copper, PEX, and CPVC
No soldering, glue or clamps
Can be installed on wet lines.
Approved for behind-the-wall applications with no access panel
Can be disconnected as needed
Not for potable water applications

Working pressure and temperature:

160 psi at 73° F
100 psi at 180° F
80 psi at 200° F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Brass
Inlet Connection	1/2" MPT
Max Pressure (Psi)	174
Max Temp (°F)	221
Min Pressure (Psi)	0
Min Temp (°F)	-4
Mounting Options	Thread
Outlet Connection	1/2" MPT
Push-In Size	5/8" OD
Seal Material	EPDM
Series	Brass
Shape	90
Size	1/2"
Color / Finish	Brass
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Drop Ear Elbow
Type	Elbow

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Brass
Inlet Connection	1/2" MPT
Max Pressure (Psi)	174
Max Temp (°F)	221
Min Pressure (Psi)	0
Min Temp (°F)	-4
Mounting Options	Thread
Outlet Connection	1/2" MPT
Push-In Size	5/8" OD
Seal Material	EPDM
Series	Brass
Shape	90
Size	1/2"
Color / Finish	Brass
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Drop Ear Elbow
Type	Elbow

John Guest Drop Ear Elbow - 1/2 CTS x 1/2 NPT Manual

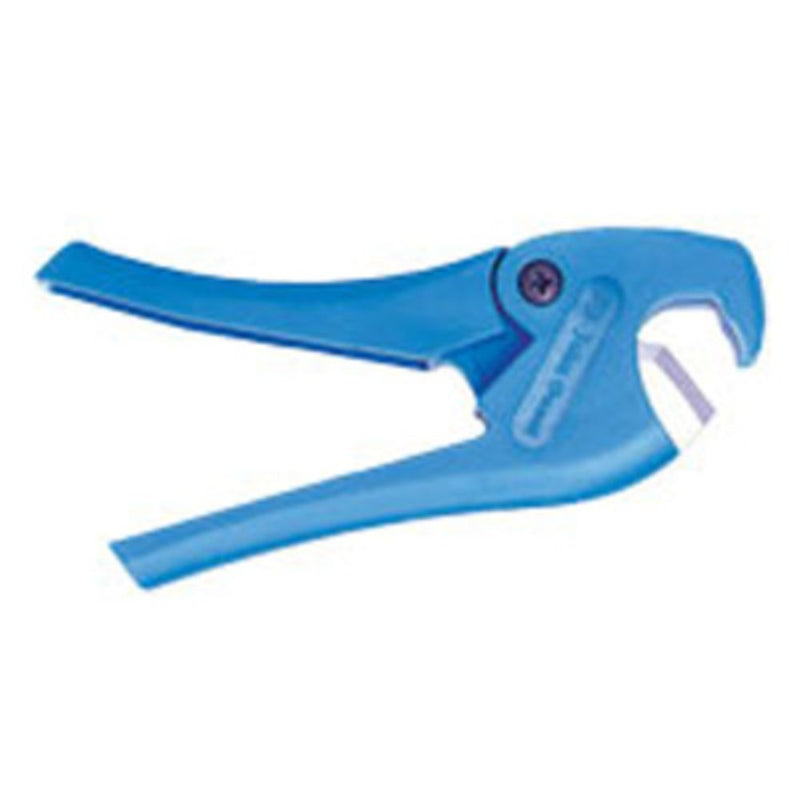

optional parts
