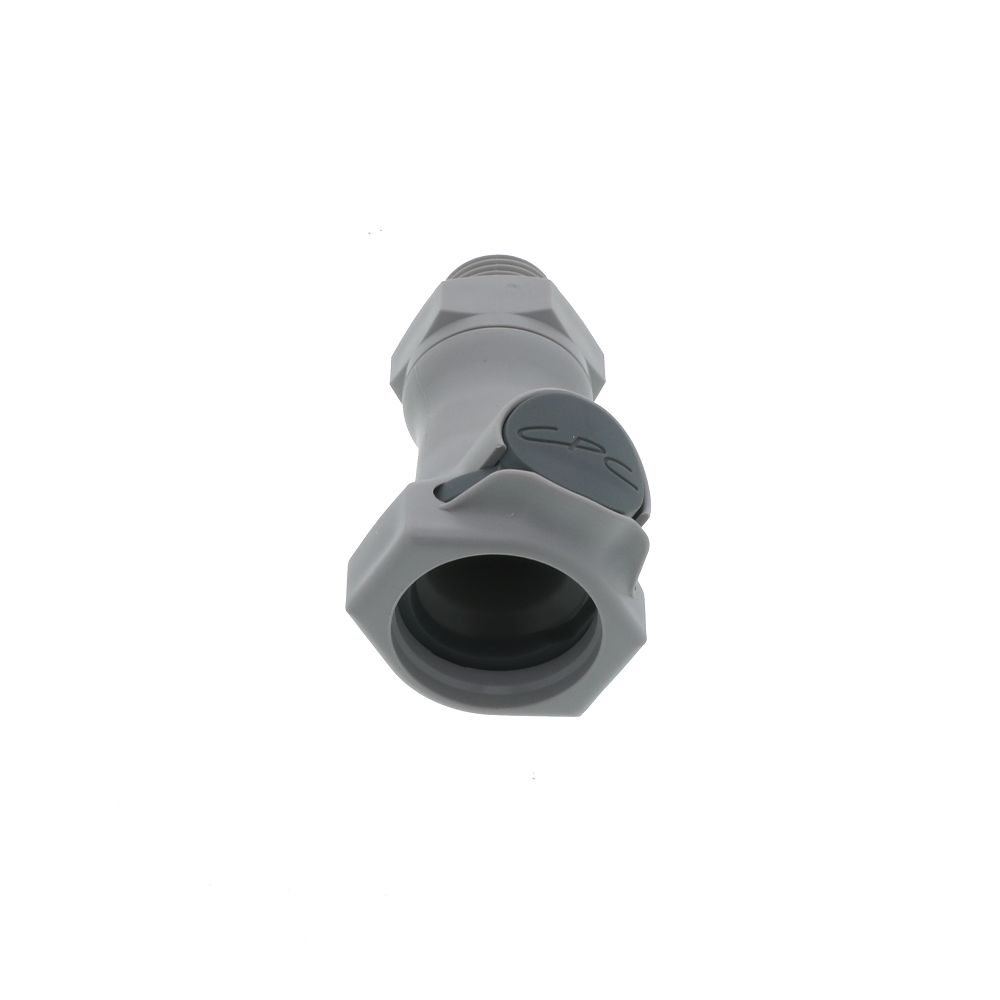

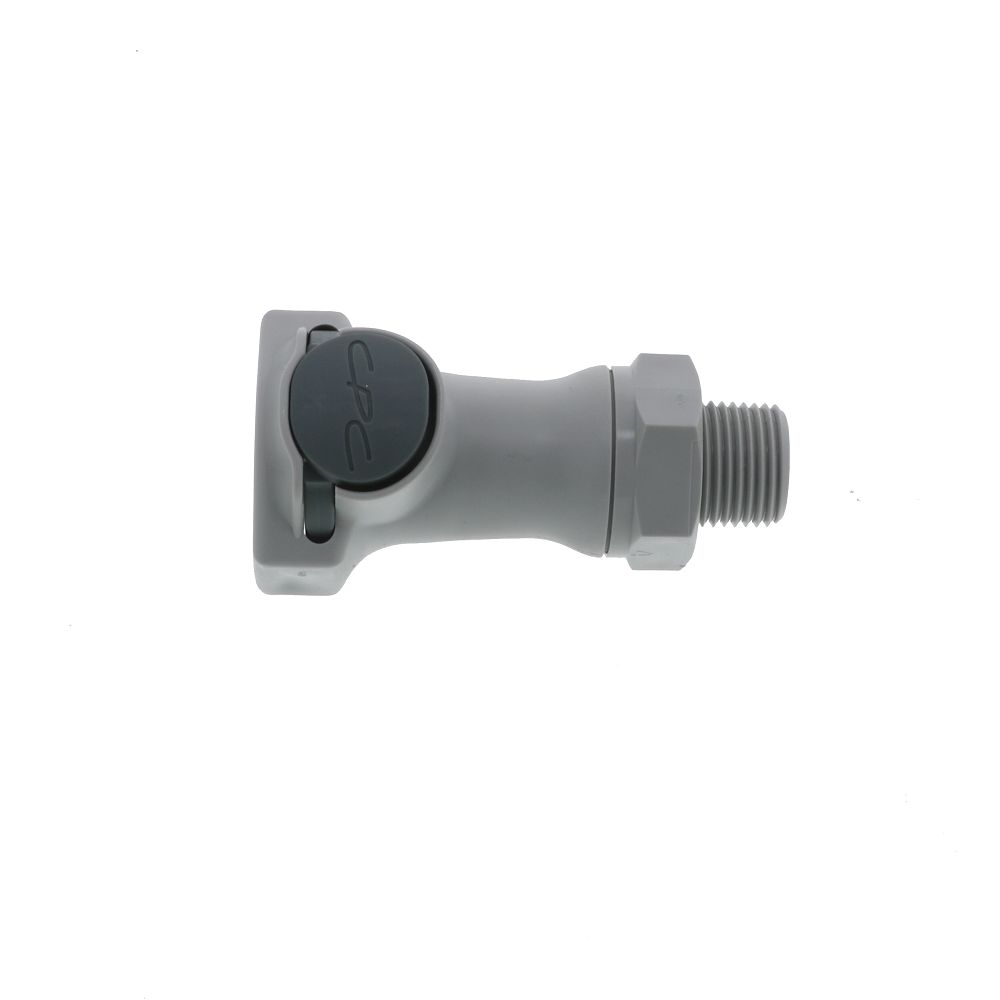

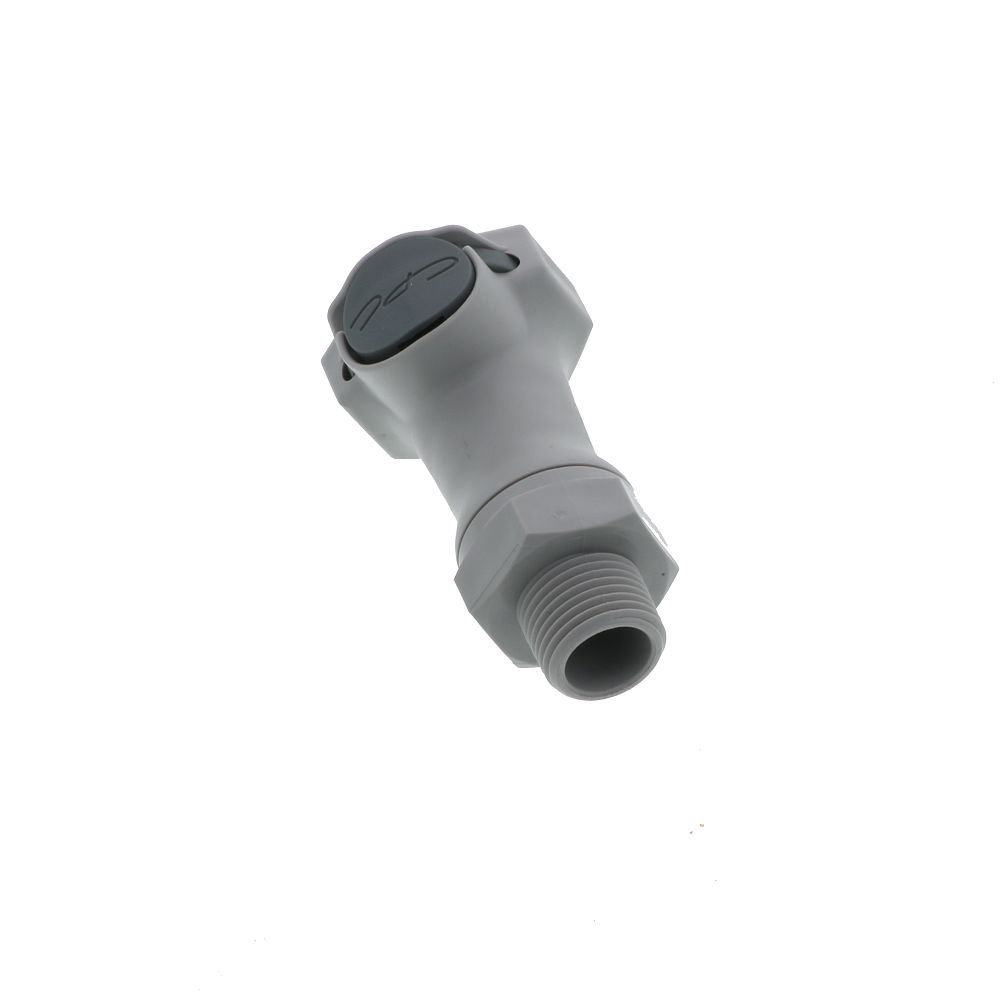

HFCD10612 Valved Male Thread Coupling Body 3/8 NPT

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:

Material: Polypropylene
Color: Gray
Pressure Range: Vacuum to 60 psi, 4.2 bar
Mounting Option: NPT threads
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Seal Options: EPDM
Available in Bags of 10 units

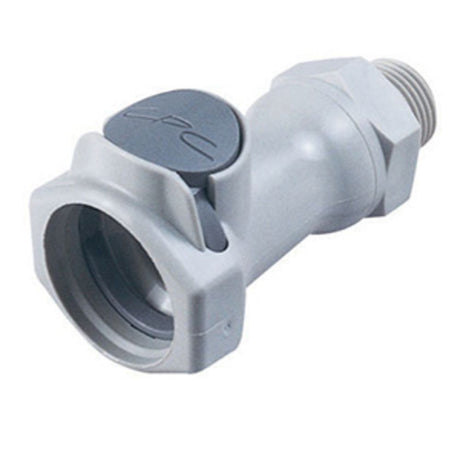

NSF Listed Version (part # 63300) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
External Springs And Pin	316 Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	EPDM
Series	HFC12
Shape	Straight
Size	3/8"
Thumb Latch	Polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water
Body Material	Polypropylene
External Springs And Pin	316 Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	EPDM
Series	HFC12
Shape	Straight
Size	3/8"
Thumb Latch	Polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

HFCD10612 Valved Male Thread Coupling Body 3/8 NPT Manual
