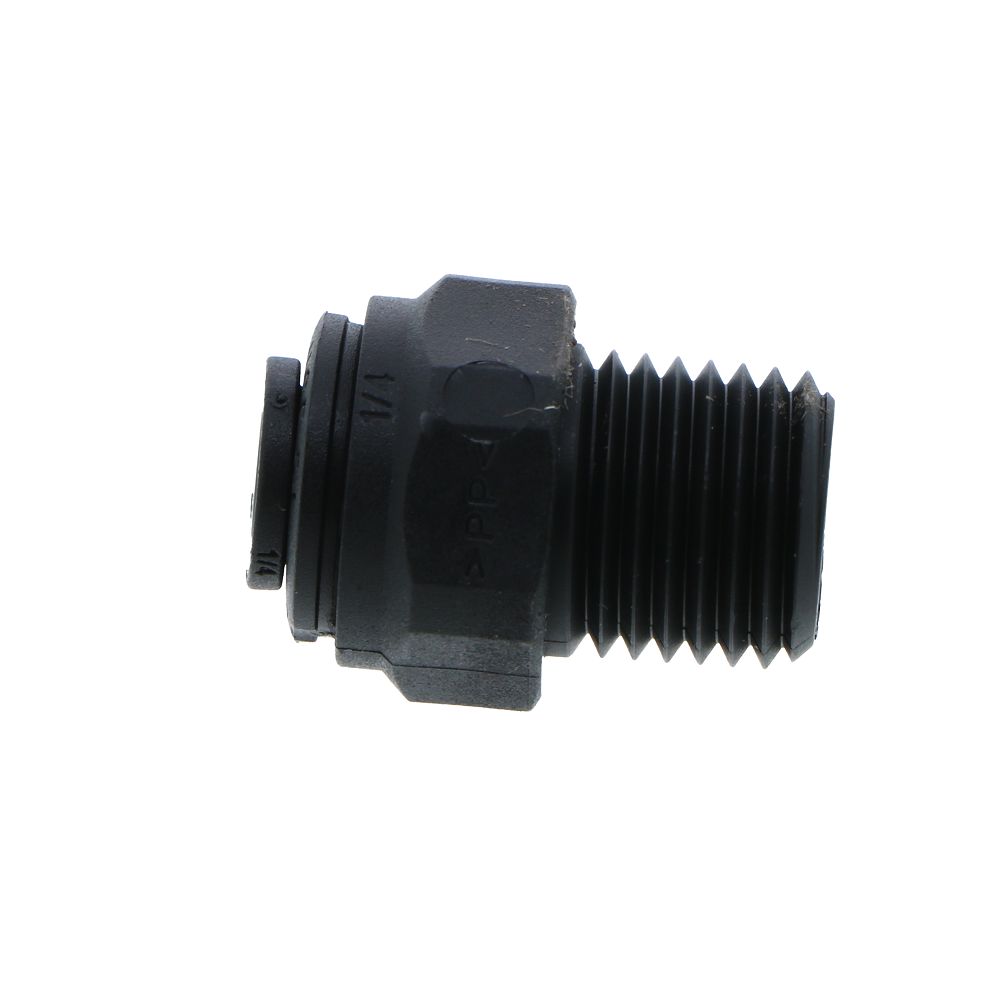

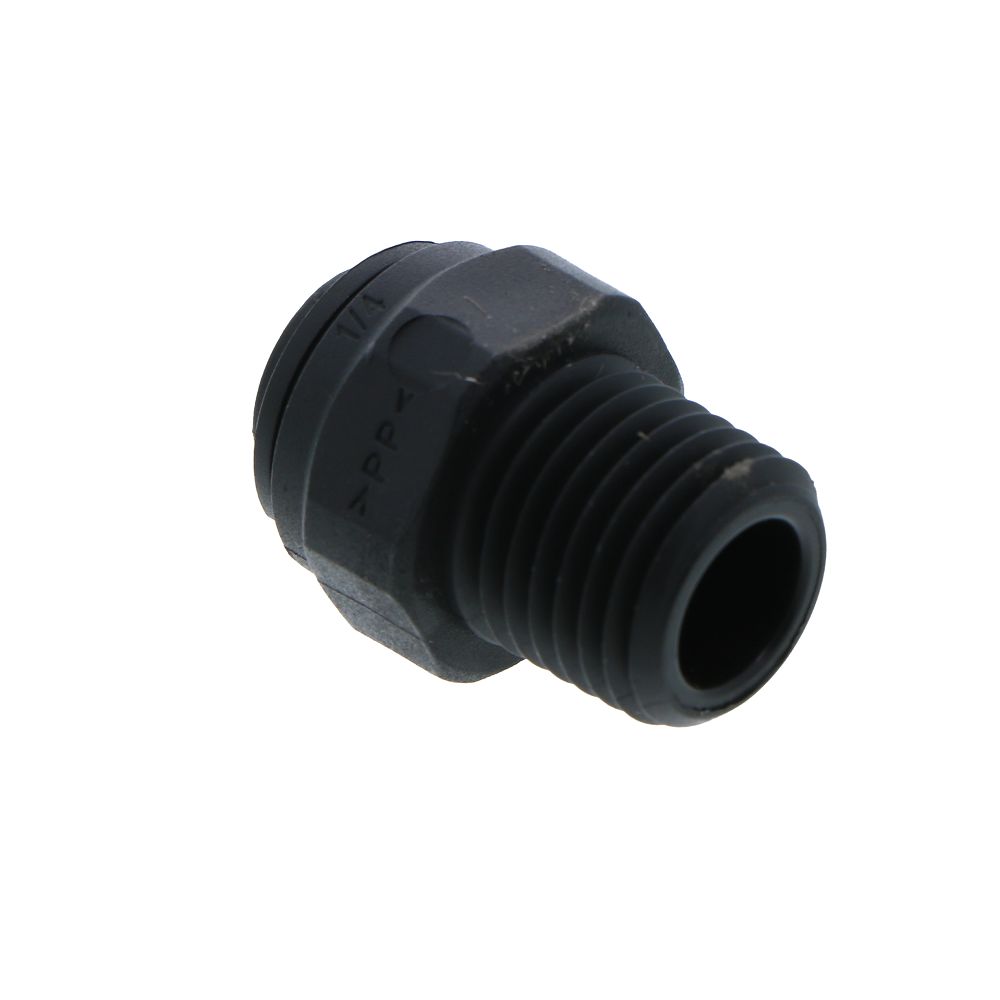

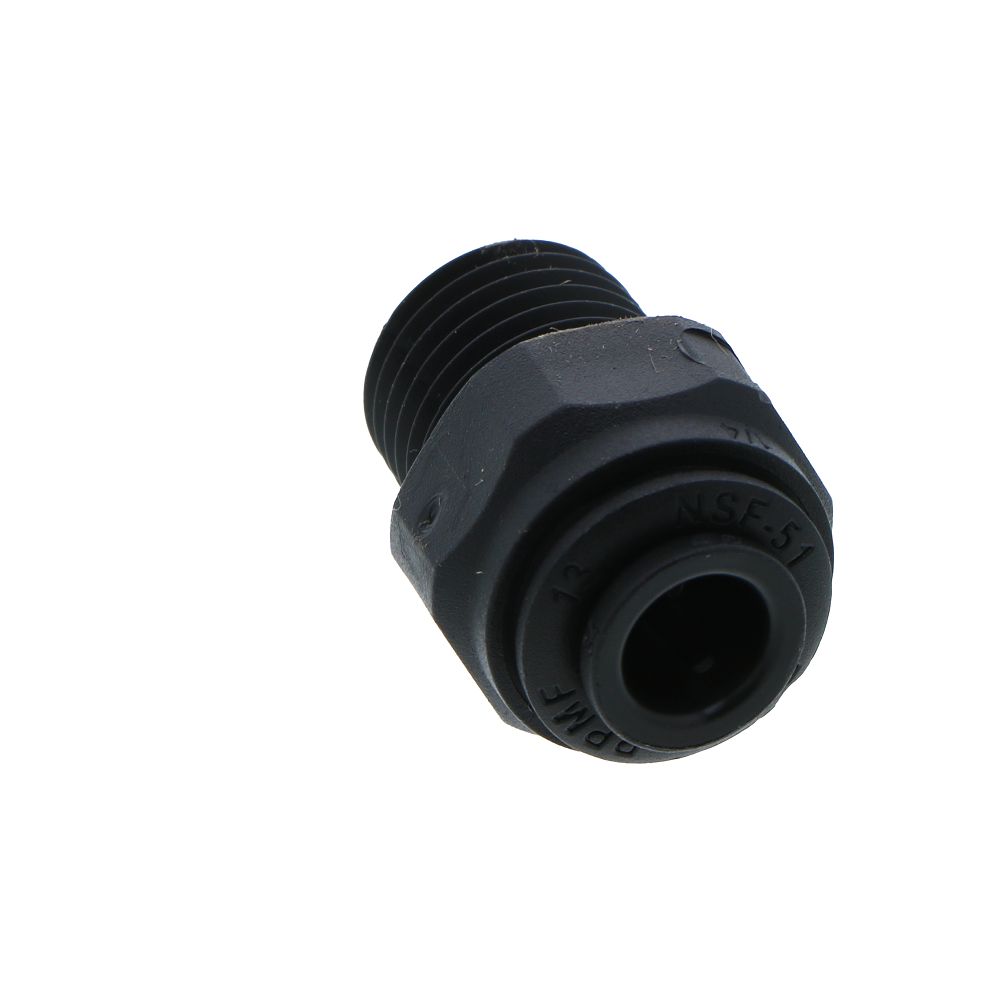

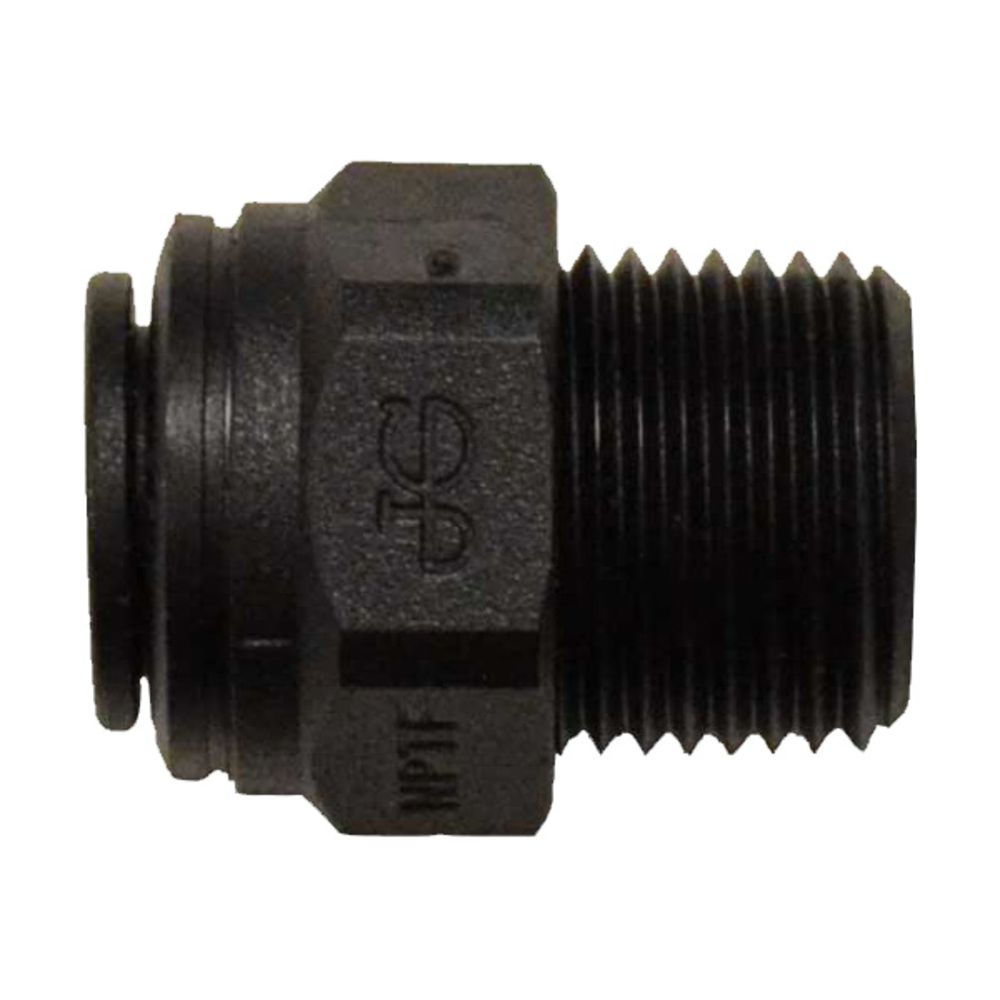

John Guest Male Connector NPTF Black Polypropylene - 1/4 x 1/4 NPTF

Part Number: PP010822E
Alt. Part Number: PM0308E
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Your price:
Choose
Single

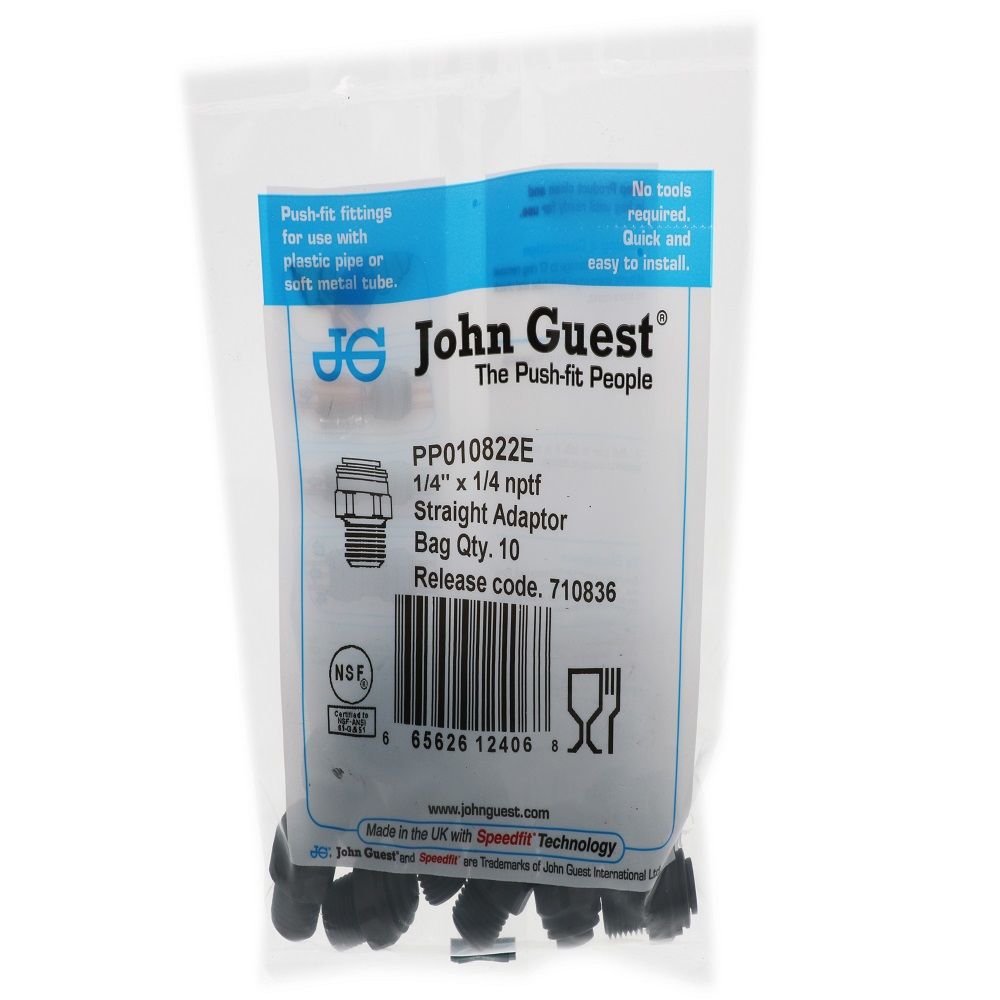

Bag of 10
Box of 400
similar items
The John Guest male connector makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.

Features:
  • Push-fit Technology creates reliable, leak-free connections
  • Used to connect OD tubing sizes to female NPT threads
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Polypropylene body with EDPM O-ring
  • UV Stabilized
  • Made with lead free materials

Working pressure and temperature:
  • Max. 150 psi at 70° F
  • Max. 60 psi at 140° F


Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
